Planar FWMP-MXL Fixed Wall Mount for Portrait Orientation
Product Overview

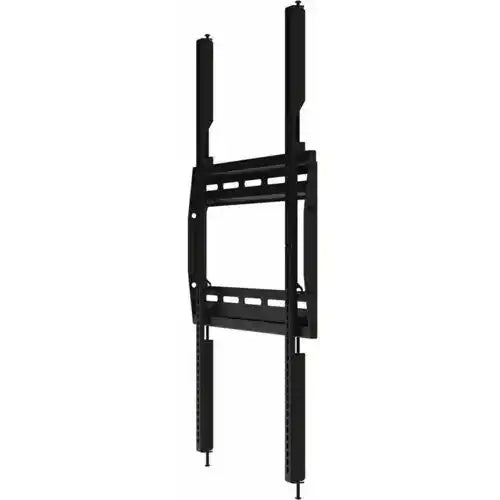

The Planar FWMP-MXL (997-7064-00) is a fixed low-profile wall mount specifically designed to support large-format monitors up to 65" and 175 lbs in portrait orientation. With a 1" standoff profile, VESA support from 200 x 200mm to 535 x 705mm, and an included lockable security barrel, the FWMP-MXL provides a secure, ADA-compliant portrait-format mounting solution for commercial digital signage applications.
Product Description
The FWMP-MXL fills a specific need in commercial AV installations: a fixed wall mount that correctly supports portrait-orientation digital signage for large-format displays up to 65". Portrait orientation is commonly required for retail digital menu boards, vertical content displays, wayfinding kiosks, and architectural signage installations. The 1" profile between the display and wall complies with the Americans with Disabilities Act (ADA) Standards for Accessible Design — a requirement in many public and commercial environments.
VESA support from 200 x 200mm to 535 x 705mm accommodates a wide range of Planar and third-party commercial displays in the 40"-65" class. An included M4, M5, M6, and M8 screw kit covers common display mounting thread sizes without requiring additional hardware purchases. The lockable security barrel protects against unauthorized mount removal in public-facing installations.
Key Features
- Designed for portrait orientation mounting of displays up to 65" and 175 lbs
- ADA-compliant 1" standoff depth (1.57" actual depth)
- VESA support: 200 x 200mm (min) to 535 x 705mm (max)
- Includes M4, M5, M6, and M8 screw kit
- Lockable security barrel for tamper resistance
- Mount weight: 12 lbs
- Mount dimensions: 563 x 742 x 24mm (W x H x D)
- 90-day limited warranty
Technical Specifications
| Specification | Detail |
|---|---|
| Model | FWMP-MXL (997-7064-00) |
| Maximum Screen Size | 65" |
| Maximum Load Capacity | 175 lbs |
| Standoff Profile | 1" (ADA compliant, 1.57" actual) |
| VESA Range | 200 x 200mm to 535 x 705mm |
| Included Screws | M4, M5, M6, M8 |
| Security | Lockable security barrel |
| Mount Dimensions (W x H x D) | 563 x 742 x 24mm |
| Mount Weight | 12 lbs |
| Orientation | Portrait |
| Warranty | 90-day limited |
