Planar 997-9253-02 65" 3840x2160 Diagonal, 20pt IR touch, Ultra slim LED backlight, 450 Nit
Planar 997-9253-02 65" 3840x2160 Diagonal, 20pt IR touch, Ultra slim LED backlight, 450 Nit is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Planar 997-9253-02 65" 3840x2160 Diagonal, 20pt IR touch, Ultr...
Product Overview

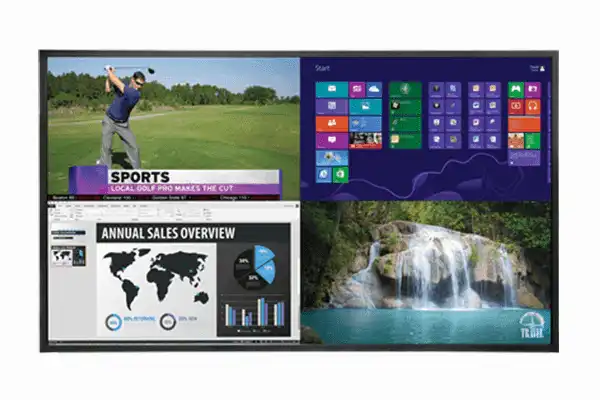

The Planar EP6524K-T (SKU 997-9253-02) is a 65-inch 4K UHD interactive LCD display offering 20-point simultaneous IR touch, 450 nit brightness, and 3840x2160 resolution. Designed for 24/7 commercial operation, it is TAA compliant and supports both landscape and portrait orientations. With 4K @ 60Hz over HDMI 2.0 and DisplayPort, an OPS expansion slot, and built-in speakers, it delivers a complete interactive solution for corporate, public venue, and control room deployments.
Product Description
The EP6524K-T is Planar's 65-inch flagship interactive display, combining 4K UHD resolution with 20-point simultaneous infrared touch for high-density collaborative and presentation applications. At 450 nits, it delivers adequate brightness for typical commercial spaces, and ultra-slim Direct LED backlighting maintains a low-profile form factor. HDCP 2.2 compliance ensures compatibility with protected 4K content across both HDMI and DisplayPort connections.
The Intel OPS (Open Pluggable Specification) expansion slot allows integration of a compute module directly into the display chassis, eliminating external PC cabling and creating a self-contained interactive workstation. This is particularly valuable for collaboration spaces, training rooms, and digital signage deployments where a separate PC is undesirable. Built-in speakers support direct audio playback without external amplification for most environments.
TAA compliance makes the EP6524K-T eligible for U.S. federal procurement. The 400x400 VESA mount pattern enables standard wall and ceiling mounting. Landscape or portrait orientation is supported, and a full accessory ecosystem including remote control, HDMI cable, IR cable, USB cable, and cable clamps ships in the box.
Key Features
- 65-inch Direct LED LCD display with 3840x2160 (4K UHD) resolution
- 20-point simultaneous infrared (IR) touch
- 450 nit brightness — suitable for standard commercial ambient light
- 4K @ 60Hz via HDMI 2.0 and DisplayPort 1.2
- HDCP 2.2 compliant for protected 4K content
- Intel OPS expansion slot for integrated compute module
- Built-in speakers
- 10-bit color depth with 72% NTSC color gamut
- Landscape and portrait orientation supported; VESA 400x400
- TAA compliant — eligible for federal procurement
- RoHS certified; 3-year limited warranty
- 24/7 commercial operation rated
Typical Applications
- Corporate collaboration rooms and huddle spaces with interactive whiteboarding
- Training rooms and classrooms requiring multi-touch interactive presentations
- Digital signage kiosks in retail, hospitality, and public venues with touch navigation
- Control rooms with touch-enabled status dashboards and maps
- Government and federal facilities (TAA compliant procurement)
- Healthcare patient information and wayfinding kiosks
Technical Specifications
| Specification | Value |
|---|---|
| Model | EP6524K-T |
| SKU / Part Number | 997-9253-02 |
| Screen Size | 65 inches |
| Resolution | 3840 x 2160 (4K UHD) |
| Brightness | 450 nit |
| Touch Type | Infrared (IR), 20-point simultaneous |
| Backlight | Direct LED |
| Color Depth | 10-bit |
| Color Gamut | 72% NTSC |
| Scan Format | 2160p (4K) |
| HDMI | Yes (2.0, HDCP 2.2) |
| DisplayPort | Yes (1.2, 2x) |
| USB 2.0 Ports | 2 |
| USB 3.0 Ports | 1 |
| Serial (RS-232) | Yes |
| Ethernet | Yes |
| OPS Slot | Yes (Intel OPS) |
| Built-in Speakers | Yes |
| VESA Mount | 400 x 400 mm |
| Orientation | Landscape or Portrait |
| Input Voltage | 120V AC / 230V AC |
| TAA Compliant | Yes |
| Environmental | RoHS |
| Warranty | 3-year limited |
| Operation | 24/7 |
Competitor Comparison
| Feature | Planar EP6524K-T | Samsung IA Series 65" Touch | LG LSCB Series 65" Touch | NEC UN Series 65" Touch |
|---|---|---|---|---|
| Resolution | 3840x2160 (4K) | 3840x2160 (4K) | 3840x2160 (4K) | 3840x2160 (4K) |
| Brightness | 450 nit | 500 nit | 500 nit | 450 nit |
| Touch Points | 20-point IR | 10-point IR | 10-point IR | 10-point IR |
| OPS Slot | Yes | Yes (Tizen SOC) | Yes | Yes |
| TAA Compliant | Yes | No | No | No |
| HDCP 2.2 | Yes | Yes | Yes | Yes |
| Built-in Speakers | Yes | Yes | Yes | Yes |
| 24/7 Rated | Yes | Yes | Yes | Yes |
Frequently Asked Questions
- How does 20-point touch differ from standard 10-point displays?
- 20-point simultaneous IR touch allows twice as many independent touch inputs at the same time. In collaborative scenarios with multiple users writing or gesturing on the screen simultaneously, 20-point touch prevents dropped inputs and delivers a more responsive, natural experience than 10-point systems.
- Is the EP6524K-T TAA compliant and what does that mean for procurement?
- Yes. Trade Agreements Act (TAA) compliance means the display is manufactured or substantially transformed in a TAA-designated country, making it eligible for U.S. federal, state, and GSA schedule procurement where TAA compliance is required.
- What compute options are available via the OPS slot?
- Any Intel OPS-compliant compute module can be installed, including Windows-based PC modules from multiple manufacturers. This creates a self-contained interactive workstation without external PC cabling, reducing cable management complexity and failure points.
- Can this display be mounted in portrait orientation?
- Yes. The EP6524K-T supports both landscape and portrait orientations. The 400x400 VESA pattern is compatible with standard portrait mounting brackets. Touch calibration adjusts automatically to orientation.
- What is included in the box?
- The EP6524K-T ships with the display, power cord, HDMI cable, IR cable, USB A-to-B cable, remote control, and cable clamps.
- Does this display require an external amplifier for audio?
- No. Built-in speakers handle audio playback for presentations and video content in most commercial environments without external amplification.
