Planar DirectLight Ultra Input Chassis – 0.9mm (TAA)

Product Overview

The Planar DirectLight Ultra Input Chassis for 0.9mm pitch is the primary signal-path unit in an Ultra LED video wall. It receives the CAT6 connection from the Planar WallDirector Video Controller and distributes signal onward to distribution and core chassis. This chassis is configured specifically for 0.9mm pitch Ultra deployments and is TAA compliant. It is an infrastructure component of the DirectLight Ultra system rather than a display.

Product Description

The Planar DirectLight Ultra Series provides always-on, high-resolution LED video walls with pixel pitches from 0.7mm to 1.2mm for mission-critical applications. This Input Chassis (SKU 933-1607-00) is the main unit in the Ultra signal path: it takes the CAT6 connection from the WallDirector Video Controller (VC) and sends signal to the distribution and core chassis that drive the LED modules. Configured for 0.9mm pitch walls, it works within the Ultra architecture that pairs MicroLED modules with an off-board power supply and Planar ActivAlign self-adjusting alignment. The chassis is TAA compliant, supporting federal, defense, and regulated procurement. Proper signal-path planning between input, distribution, and core chassis is essential to wall reliability, and our team can help map the topology. This chassis is part of our broader Planar collection at Creation Networks. Exact port counts, cable runs, and chassis quantities depend on wall size and layout; contact Creation Networks to confirm. We can scope the complete Ultra signal chain for your project.

Key Features

• 0.9mm pitch configuration — Matched to DirectLight Ultra 0.9mm video wall builds.

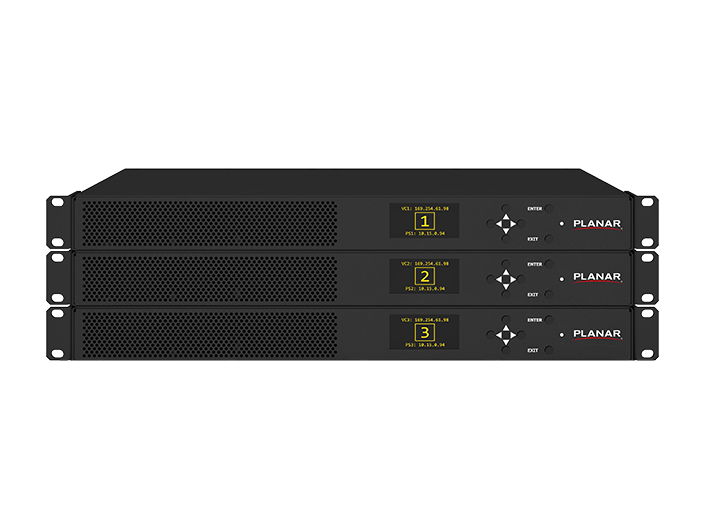

• Primary signal-path unit — Receives the CAT6 feed from the WallDirector Video Controller.
• Signal distribution — Sends signal onward to distribution and core chassis driving the modules.
• CAT6 connectivity — Uses standard CAT6 cabling from the video controller for signal transport.
• TAA compliant — Meets sourcing requirements for government and regulated procurement.
• Ultra architecture integration — Works with off-board power and ActivAlign alignment for always-on reliability.

Typical Applications

• Government command and control centers
• Broadcast studio video wall infrastructure
• Boardroom and executive briefing walls
• Commercial meeting space installations
• Auditorium primary display systems

Technical Specifications

Frequently Asked Questions

What does the input chassis do? It is the main unit in the signal path, receiving the CAT6 feed from the WallDirector and sending signal to distribution and core chassis.

Which pitch is this chassis for? This unit is configured for 0.9mm pitch DirectLight Ultra walls.

How does it connect to the controller? Via a CAT6 connection from the Planar WallDirector Video Controller.

Is it TAA compliant? Yes. It meets TAA requirements for government and regulated procurement.

Is this a display? No. It is a signal-path infrastructure component of the Ultra system.

Can Creation Networks design the signal chain? Yes. Contact Creation Networks to confirm chassis quantities, cabling, and topology for your wall.
