Planar DirectLight Ultra Core Chassis – 0.9mm Pixel Pitch

Product Overview

The Planar DirectLight Ultra Core Chassis for 0.9mm pixel pitch is a signal-receiving component within the Planar DirectLight Ultra fine pixel pitch MicroLED video wall system. This TAA-compliant core chassis receives video and control signals from the distribution and input chassis, then drives the attached LED modules at a 0.9mm pitch. It is engineered for mission-critical commercial AV environments that demand 24x7 reliability and front-serviceable architecture. The core chassis is a building block of the DirectLight Ultra fine pixel pitch LED video wall and is intended for professional integration.

Product Description

Within the Planar DirectLight Ultra Series, the system is organized into distribution, input, and core chassis components that work together to drive a complete fine pixel pitch MicroLED video wall. This core chassis (SKU 933-1605-00) is configured for the 0.9mm pixel pitch DirectLight Ultra LED video wall and receives its signal from the upstream distribution and input chassis. The DirectLight Ultra Series uses MicroLEDs to deliver high brightness, strong contrast, deep blacks, and consistent color uniformity across the wall. The series also incorporates Planar ActivAlign self-adjusting alignment technology, which helps maintain visual performance over time by addressing module shift caused by vibration and thermal expansion. DirectLight Ultra supports an off-board remote power supply, moving heat, depth, noise, and electrical service points away from the wall and into a rack. Front-side installation and serviceability allow the video wall to be mounted flush against a wall while remaining accessible for maintenance. The DirectLight Ultra system is driven by the Planar WallDirector Video Controller with its associated video wall management software. The 0.9mm pitch supports close viewing distances and high-resolution content in premium installations. As a system component, the core chassis must be specified to match the overall video wall pixel pitch, cabinet count, and controller configuration. Explore the full Planar lineup in our Planar collection. Configuration details vary by build; contact Creation Networks to confirm compatibility for your project.

Key Features

• 0.9mm pixel pitch support — The core chassis is configured to drive Planar DirectLight Ultra LED modules at a 0.9mm fine pixel pitch for close viewing distances.
• Signal-receiving architecture — The core chassis receives video and control signals from the upstream distribution and input chassis within the DirectLight Ultra system.
• MicroLED image quality — DirectLight Ultra MicroLEDs deliver high brightness, strong contrast, deep blacks, and consistent color uniformity across the video wall.
• Planar ActivAlign technology — Self-adjusting alignment helps maintain visual performance over time by countering module shift from vibration and thermal expansion.

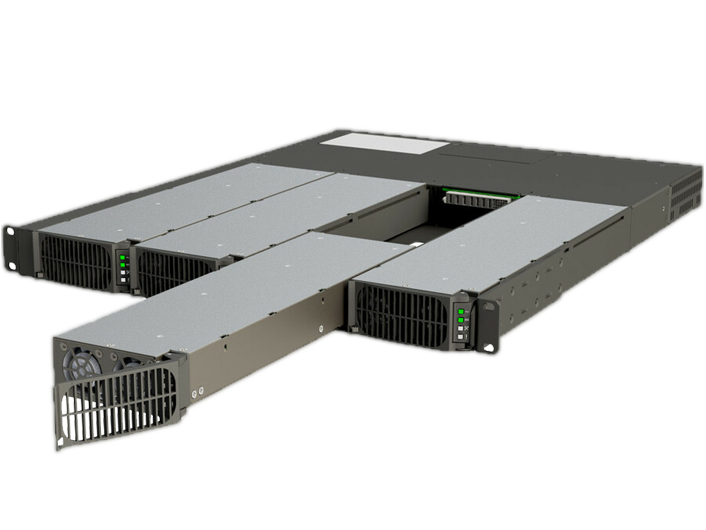

• Off-board remote power — The DirectLight Ultra remote power supply relocates heat, depth, noise, and electrical service points into a rack and away from the wall.
• Front-side serviceability — Front installation and access allow the wall to mount flush while remaining serviceable from the front.

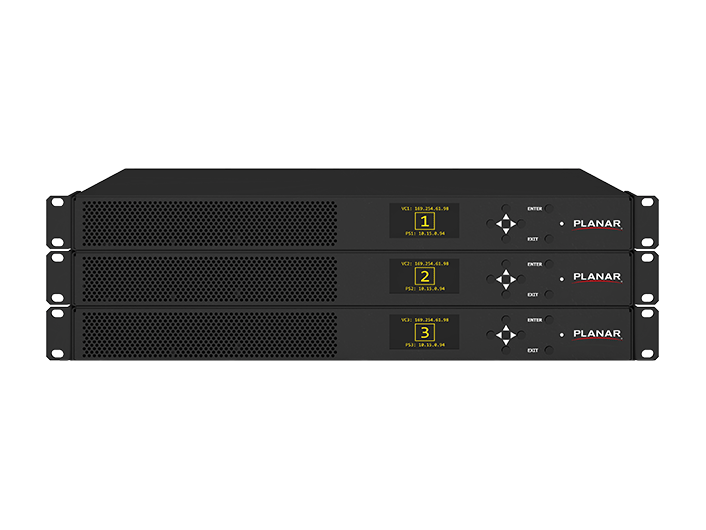

• WallDirector control — The system is driven by the Planar WallDirector Video Controller with corresponding video wall management software.
• TAA compliant — The core chassis is TAA compliant for procurement environments that require it.

Typical Applications

• Control rooms — Fine pixel pitch resolution and 24x7 reliability suit command-and-control monitoring environments.

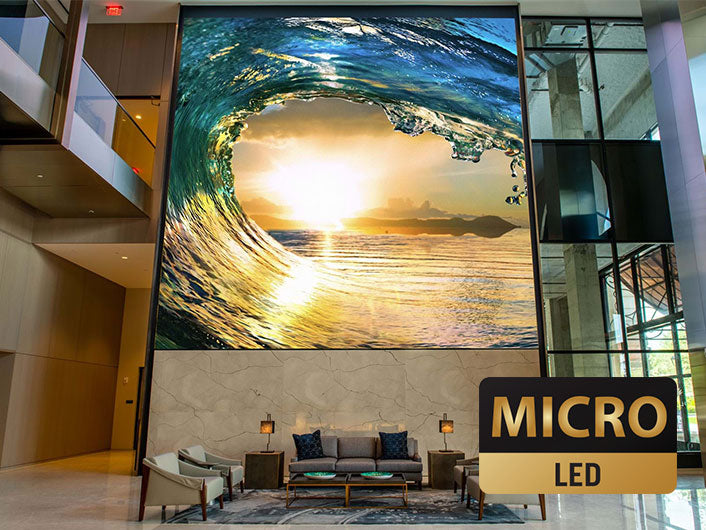

• Corporate lobbies — High brightness and color uniformity support impactful entryway and reception video walls.
• Broadcast and studio — MicroLED contrast and brightness support on-camera and production backdrops.
• Command and operations centers — Remote power and front serviceability support always-on operational displays.

Technical Specifications

Frequently Asked Questions

What is the DirectLight Ultra core chassis? It is a component of the DirectLight Ultra video wall system that receives signal from the distribution and input chassis and drives the attached LED modules.

Which pixel pitch does SKU 933-1605-00 support? This core chassis is configured for the 0.9mm pixel pitch DirectLight Ultra LED video wall.

Is this a complete video wall? No. The core chassis is one component of a larger DirectLight Ultra system that also includes modules, distribution and input chassis, remote power, and a controller.

Is this core chassis TAA compliant? Yes, this core chassis is TAA compliant.

How is the DirectLight Ultra wall powered? The series uses an off-board remote power supply that relocates heat and service points into a rack.

How do I confirm the right configuration? Configuration depends on your full wall design; contact Creation Networks to confirm the correct components for your deployment.
