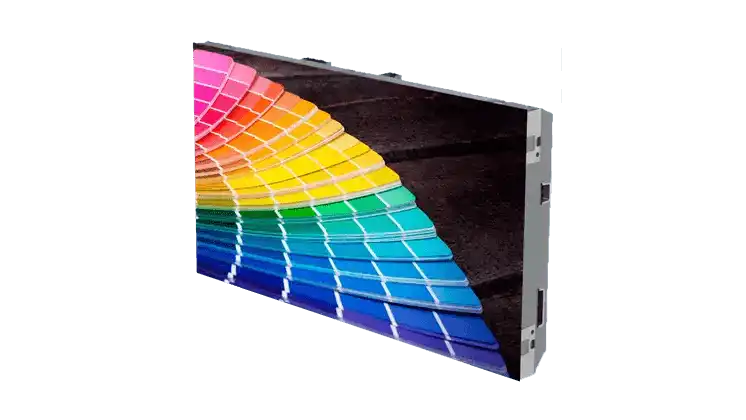

Planar DirectLight Ultra Complete UHD 4K 163" LED Video Wall w/VC controller, and hardware -998-2799-00

Product Overview

The Planar DirectLight Ultra 163 LED video wall is a complete, commercial-grade MicroLED display system engineered for large-format, fixed indoor installations where image quality and long-term serviceability are non-negotiable. At 163 inches diagonal with a 4K UHD (3840x2160) native resolution and a 0.9mm pixel pitch, this fine pixel pitch video wall delivers sharp, detailed imagery at close viewing distances, making it well suited for executive briefing centers, government operations rooms, and high-visibility corporate environments. The system ships as a fully bundled package — LED cabinets, mounting hardware, cabling, spare modules, remote control, and Planar WallDirector Video Controller — reducing procurement complexity and accelerating deployment timelines. TAA compliance makes this a viable choice for U.S. federal, defense, and government agency procurement under GSA schedules.

Product Description

The Planar DirectLight Ultra Complete UHD 163" (SKU 998-2799-00) is a purpose-built 4K LED video wall system that eliminates the need to source components from multiple vendors. Every element required for a production-ready installation is included: LED display cabinets pre-wired for simplified assembly, the Planar Remote Power Supply, wall mounts, trim, interconnecting cables, and a supply of spare LED modules for on-site maintenance.

The front-serviceable LED display architecture is a critical operational advantage in permanent installations. Technicians can access and replace individual LED modules from the front of the display without disturbing the wall structure or adjacent panels, reducing maintenance downtime significantly. The included Planar WallDirector Video Controller provides a centralized platform for source management, display configuration, and content routing, supporting complex multi-source workflows without requiring a separate video processor.

With approximately 1000 nits peak brightness and a 10,000:1 contrast ratio, the display performs well under varied ambient lighting conditions — from dim conference environments to brightly lit lobbies. The MicroLED technology used in the DirectLight Ultra series produces accurate color reproduction across the visible spectrum without the burn-in risk associated with OLED panels. This system is TAA compliant, meeting Trade Agreements Act requirements for U.S. government procurement.

Key Features

• MicroLED Technology — Delivers precise pixel-level light control with no burn-in risk, sustaining consistent image quality over the product lifecycle.
• 4K UHD Native Resolution (3840x2160) — Full 4K output on a 163" canvas provides adequate pixel density for close-proximity viewing in boardrooms and briefing centers.
• 0.9mm Pixel Pitch — Fine pixel pitch enables sharp imagery at viewing distances as short as 1.5 meters, appropriate for conference rooms and executive spaces.
• Front-Serviceable Design — LED modules are accessed and replaced from the front face of the display, eliminating the need for rear-wall access and reducing maintenance labor costs.
• Planar WallDirector Video Controller Included — The bundled VC handles source switching, display management, and configuration through a single integrated platform.
• Complete System Bundle (SKU 998-2799-00) — Cabinets, mounts, trim, cables, remote power supply, spare modules, and controller are all included, reducing procurement and logistics overhead.
• TAA Compliant — Meets Trade Agreements Act requirements, qualifying this system for U.S. federal and government procurement under GSA schedules.
• ~1000 Nits Brightness — Adequate luminance output for well-lit commercial environments without overdriving panel components or reducing operational lifespan.
• 10,000:1 Contrast Ratio — High contrast produces deep blacks and vivid highlights, improving legibility of data visualization and video content.
• Planar Remote Power Supply — Power components are mounted remotely from the display cabinets, simplifying cabinet design and thermal management.

Typical Applications

• Boardroom and executive briefing center
• Government operations and command center
• All-hands and large conference room
• Auditorium and multi-purpose presentation space
• Broadcast studio background and on-set display

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Is the Planar WallDirector Video Controller compatible with third-party sources and control systems?

Yes. The WallDirector VC supports a range of input sources and can be integrated with third-party control systems including Crestron and AMX via serial and network-based control protocols. Consult Planar's integration documentation for specific driver availability.

Does front serviceability require any special tools or certified technicians?

LED module replacement from the front face is designed to be performed by trained AV technicians without specialized tools beyond standard field service equipment. Planar provides service documentation and training resources. On-site spare modules are included in the 998-2799-00 bundle to support immediate field replacement.

What is the minimum recommended viewing distance for the 0.9mm pixel pitch configuration?

At 0.9mm pixel pitch, the recommended minimum viewing distance is approximately 1.2 to 1.5 meters for comfortable viewing without visible pixel structure. This makes the DirectLight Ultra 163" well suited for conference rooms and boardrooms where viewers may be seated relatively close to the display.

Is this product eligible for U.S. government procurement under GSA schedules?

Yes. The Planar DirectLight Ultra 998-2799-00 is TAA compliant, meeting Trade Agreements Act requirements. This qualifies the product for procurement under applicable GSA schedules. Buyers should confirm specific schedule availability with their GSA contracting officer or authorized Planar reseller.

What is included in the 998-2799-00 complete system bundle?

The bundle includes LED display cabinets, Planar WallDirector Video Controller, Planar Remote Power Supply, wall mounting hardware, trim panels, all interconnecting cables, remote control, and a supply of spare LED modules for on-site maintenance.

Can additional LED cabinets be added to expand the display size after initial installation?

The DirectLight Ultra system is designed as a fixed-configuration complete solution. Expansion beyond the specified 163" diagonal configuration would require a separate system design engagement with Planar or an authorized integrator. Contact Creation Networks for custom sizing consultation.
