Planar DirectLight Ultra Complete UHD 4K 108" LED Video Wall w/VC controller, and hardware - 998-2797-00

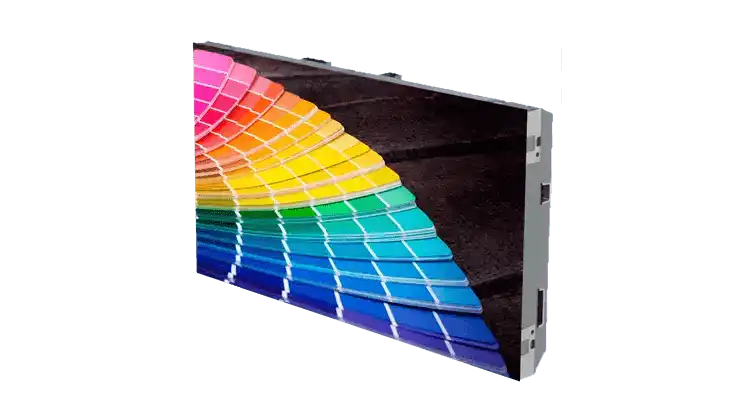

The Planar® DirectLight Ultra Complete™ UHD108 is a 4K, 108” MicroLED video wall solution that includes everything an organization needs to deliver large-
format beautiful video and imagery, in less time and with less effort. The solution comes with LED display cabinets, cables, spare modules, wall mounts, trim, remote control, Planar® Remote Power Supply and full-featured Planar® WallDirector™ Video Controller and software all included. It features front-side installation and serviceability for easier access and installation against the wall. The display also comes with the Planar® EverCare™ Lifetime Limited Warranty.

Planar® Complete™ Video Wall displays reduce the time, complexity and
cost of designing and installing Planar LED and LCD Video Walls. They're
pre-configured with popular sizes, resolutions, and in the case of LCD,
tiled bezel widths for a seemingly off-the-shelf experience.

With Planar Complete video walls we package everything like the displays
and controller to the cables and mounts. Simply select the video wall
technology and size that best suits your environment and application, and
receive the complete package all included.

With a variety of technology, size, resolution, processing cost and feature
options, there's always a perfect Planar Complete series.

Since 1983, Planar display solutions have benefitted countless organizations in
every application. Planar displays are usually front and center, dutifully delivering the visual experiences and critical information customers need, with a variety of proven technologies built to withstand the rigors of constant use.
Planar directly employs several hundred employees across North America responsible for product development, manufacturing and all aspects of customer engagement.

In addition, Planar has hundreds more Authorized Resellers employing thousands of Planar-trained personnel, providing a level of local service and support unmatched in the Pro AV industry.

Data Sheet

Features

• Seamless MicroLED video wall displays
• Proprietary self-adjusting module alignment system
• More energy efficient at common brightness
• Premium processing with Planar® WallDirector™
Video Controller & software
• 16:9 aspect ratio
• Advanced windowing & scaling
• Americans with Disabilities Act (ADA) compliant
• Includes: display cabinets, controller, mounts
cables, trim, remote control & spare modules

Specifications

SPECIFICATION DETAIL
Model Name UHD108
Display Technology DirectView MicroLED
Resolution 4K (3840x2160)
Display Size Diagonal 108"
Display size 7.9' x 4.5'
Width x Height 2419 x 1361mm
Mounted Depth 95.2mm (3.75in) nominal. ADA Compliant
Pixel Pitch 0.625mm
Brightness Max (cd / sq m) 1000
Contrast Ratio 10,000:1
Refresh Rate 3840Hz
Color Temperature Range
(k)
3000-10000 adjustable
Viewing Angle (50% of
brightness)
>160° horizontal; >160° vertical
Video Input Resolution
Maximum
4k at 60hz
Video Inputs 4x HDMI 2.0 (w/ HDCP 2.2), 1x DisplayPort 1.2
Control Network
Front Access
Install/Service
Yes

Runtime Duty Cycle
(Hours/Day)
24 x 7
LED Lifetime, Typical 100,000 hrs
Power Consumption,
Maximum (watts)
2475
Display Weight 336 Lbs
Storage
Temperature/Humidity
(degrees F/C, relative
humidity)
-20° to 60° C | -4° to 140° F (10-85% RH, non-condensing)
Operating
Temperature/Humidity
(degrees F/C, relative
humidity)
-10° to 35° C | 14° to 95° F (10-85% RH, non-condensing)
TAA Compliance TAA Compliant
Warranty Planar EverCare Lifetime Warranty (North America)
Package Includes Display wall, Planar WallDirector Video Controller, Planar Remote Power Supply,
Signal cables, Power cables, Wall mount, Remote Control and Module Spares
