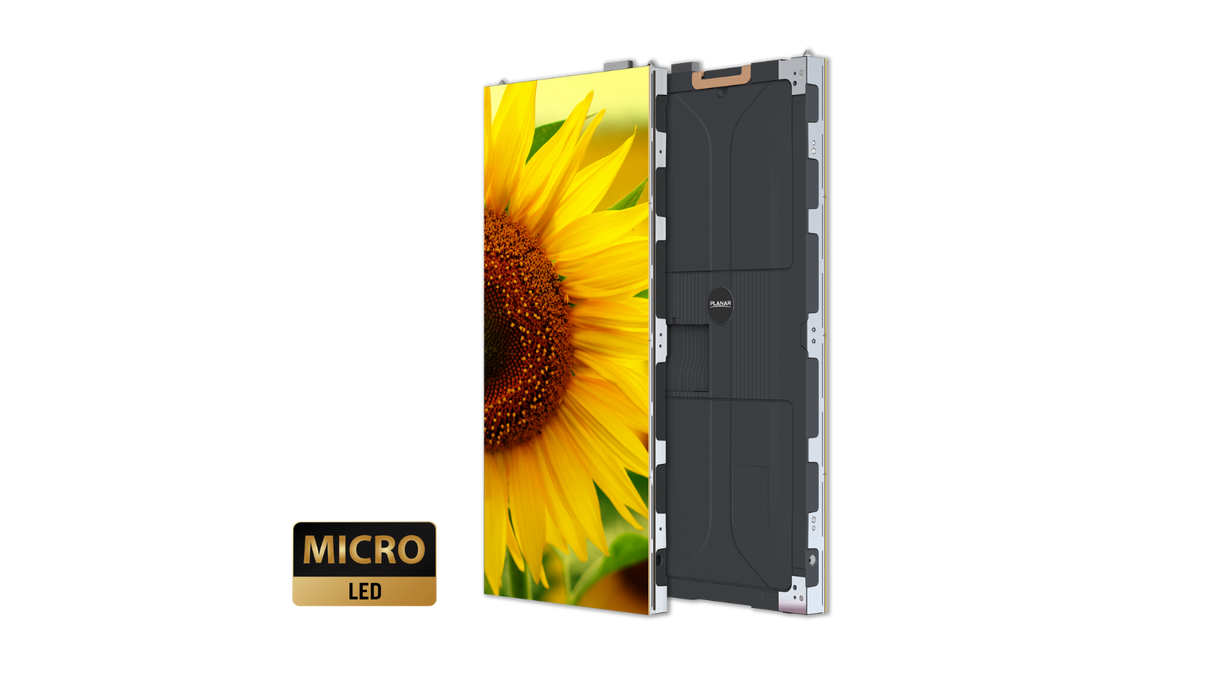

Planar DirectLight Slim Series 0.9mm MicroLED Video Wall Cabinet - DLSLIM-09M20

Planar DirectLight Slim is a MicroLED video wall cabinet just 34mm deep, in a narrow 4:9 portrait format built for curves, corners and column wraps. The 0.9mm model gives you a 320 x 720 cabinet resolution.

Why it matters

• Under two inches deep. The 34mm cabinet mounts nearly flush and stays inside the 4-inch ADA protrusion limit, so it works in a corridor or lobby without a recessed wall.
• Narrow cabinets bend around curves. At 11.91 inches wide it handles tight 3m and 4m radius curves, 90-degree exterior corners, and column wraps that wider cabinets cannot.
• Service everything from the front. Modules pull off magnetically and the internal electronics are reachable, so it works against a solid wall with no rear access.
• A real low-power option. Order it at 500 nits and 68 watts instead of 2000 nits and 145 watts. Indoors, 500 nits is plenty, and you cut power draw by more than half.
• TAA compliant, lifetime warranty. Planar EverCare limited lifetime warranty in North America, which is usually what decides government and higher-ed bids.
• Fanless and under 30 dBA for broadcast, control rooms and boardrooms.

Specifications

Specifications published by Planar Systems. Sold as an individual cabinet; wall size, remote power supply, controller and mount are configured per project.
