Planar DirectLight Essential – 136in 1.5mm COB HD LED Wall

Product Overview

The Planar DirectLight Essential is a chip-on-board (COB) LED video wall built to deliver durable, high-quality direct-view imaging in high-traffic indoor environments. This complete package forms a 136-inch HD video wall using 1.5mm pixel pitch COB cabinets in a 2x2 array, paired with a VC4-L controller and spares. As a fine-pitch COB LED video wall, it offers strong contrast and resilient operation for lobbies, conference rooms, and broadcast spaces. The full-front-access cabinet design simplifies installation and service.

Product Description

This DirectLight Essential complete system is built around 1.5mm pitch COB cabinets arranged in a 2x2 configuration to produce a 136-inch diagonal HD canvas. COB (chip-on-board) construction provides higher pixel density and improved durability compared with traditional surface-mount LED designs, supporting dependable long-term performance in busy spaces. The series uses 27-inch full-front-access cabinets, allowing installation and service from the front, which is important for flush or recessed wall mounting. The package includes a single power supply configuration, the Planar VC4-L video controller, and spare components for commissioning and maintenance. With a 30,000:1 contrast ratio and a 3,840Hz refresh rate, the system delivers deep blacks and flicker-free on-camera capture for broadcast and conferencing. This configuration suits conference rooms, lobbies, classrooms, and regional broadcast studios in ambient-lit conditions. For complementary LED walls, controllers, and mounts, browse the Planar collection at Creation Networks. Final brightness specification and per-cabinet details for this configuration should be confirmed with Creation Networks. Professional installation and calibration are recommended to achieve uniform output across the array.

Key Features

• 1.5mm COB pixel pitch — Provides fine-pitch direct-view imaging for typical indoor viewing distances.
• 136-inch HD canvas — 2x2 cabinet array forms a complete high-definition video wall.
• Chip-on-board construction — Increases pixel density and physical durability versus traditional LED designs.

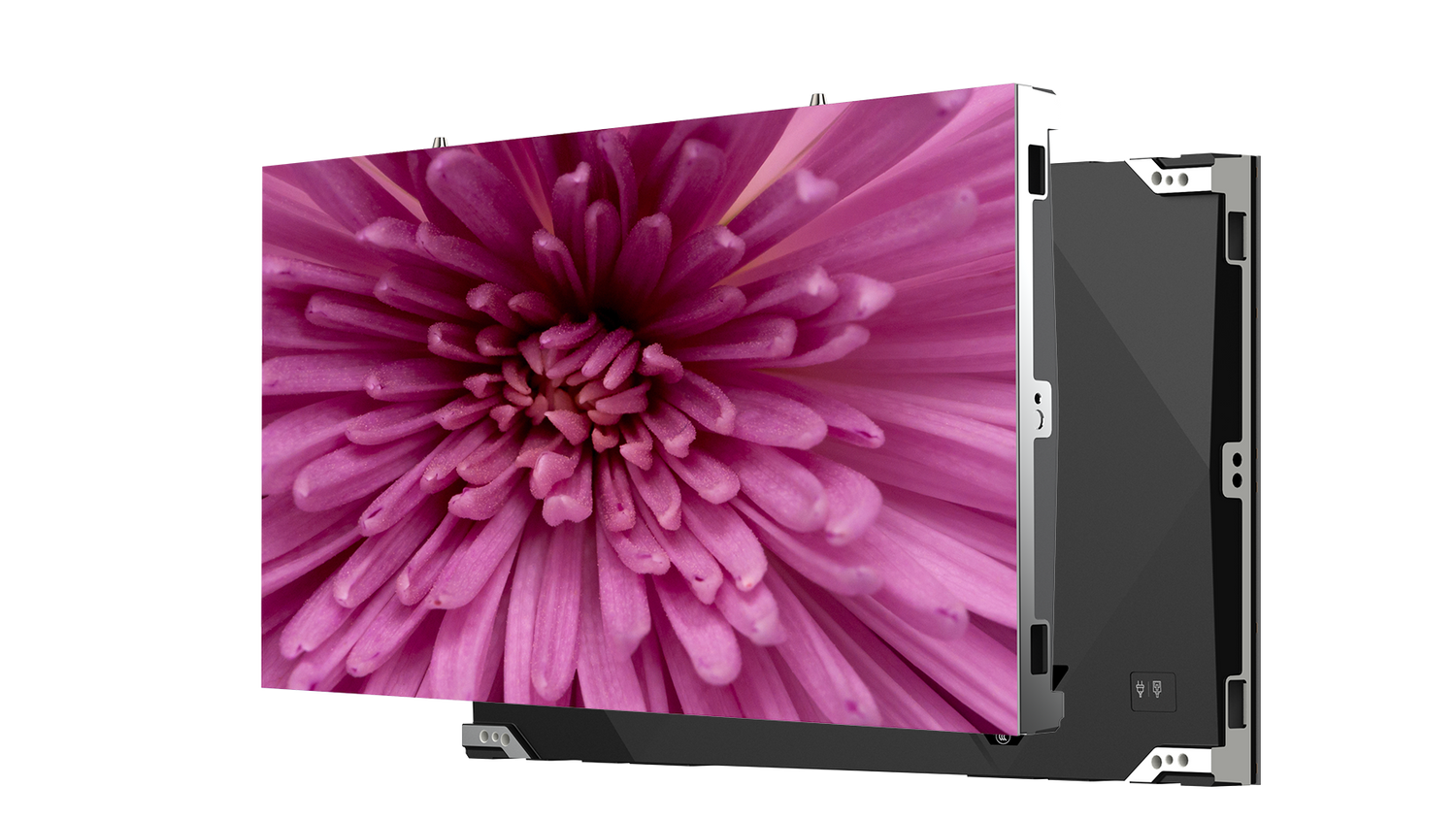

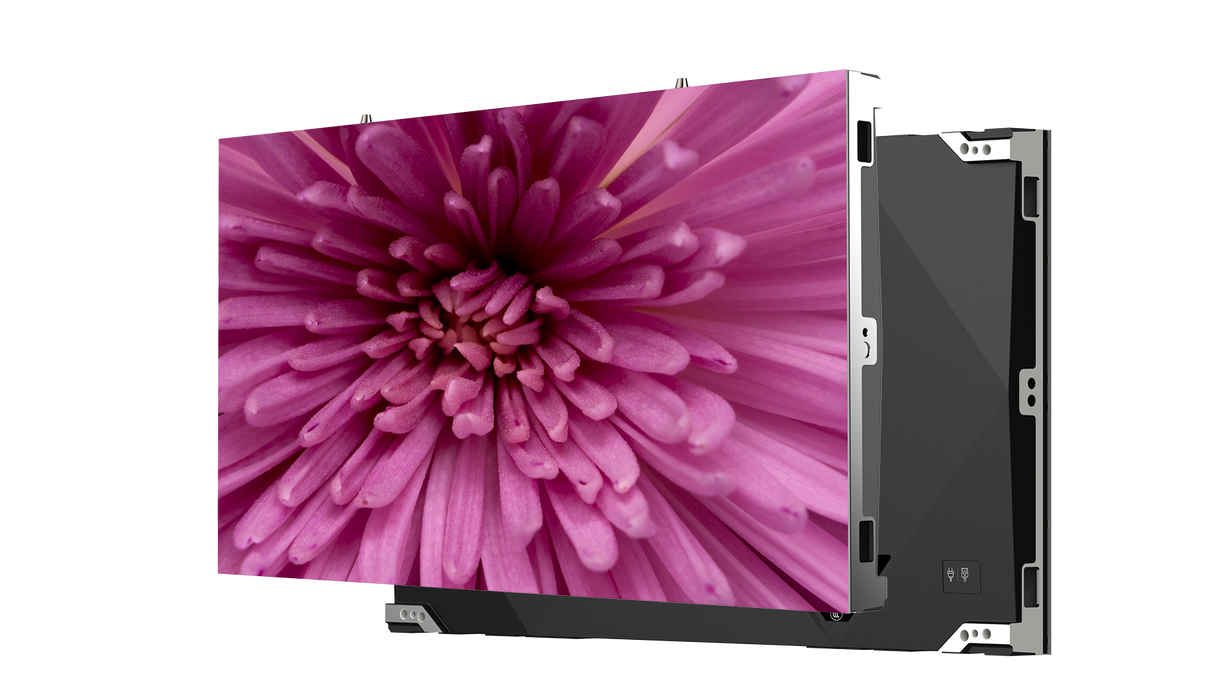

• Full-front-access cabinets — 27-inch cabinets allow front installation and service for flush-mounted walls.
• 30,000:1 contrast ratio — Produces deep blacks and strong image depth in ambient-lit rooms.
• 3,840Hz refresh rate — Supports flicker-free on-camera capture for broadcast and conferencing.
• Complete package — Includes VC4-L controller, single power supply configuration, and spares.

Typical Applications

• Conference room
• Boardroom
• Broadcast studio
• Commercial meeting space
• Auditorium
• All-hands room

Technical Specifications

Frequently Asked Questions

What size video wall does this package build?
This configuration uses a 2x2 array of 1.5mm COB cabinets to form a 136-inch diagonal HD video wall.

Why choose COB over traditional LED?
Chip-on-board construction offers higher pixel density and greater durability, making it well suited to high-traffic indoor environments.

How is the wall installed and serviced?
The 27-inch cabinets support full front access, allowing installation and maintenance from the front. Professional installation and calibration are recommended.

What controller is included?
The package includes the Planar VC4-L video controller along with spare components for commissioning and maintenance.

Does it work for on-camera environments?
Yes. The 3,840Hz refresh rate supports flicker-free capture, suiting broadcast studios and video conferencing rooms.

What warranty and support are available?
Warranty terms and support options should be confirmed with Creation Networks prior to purchase.
