Planar DirectLight Essential Series 1.2mm 109" HD COB Complete LED Video Wall

About the Planar DirectLight Essential Series

The Planar DirectLight Essential Series is a line of fine pixel pitch LED video walls that deliver incredible visual performance tailored for budget-conscious indoor applications. Designed with COB (Chip-on-Board) technology, these displays offer higher pixel density and increased durability compared to traditional LED designs, for a high-quality viewing experience with improved brightness, deeper blacks and a high contrast ratio.

Product Overview

The Planar DirectLight Essential is a chip-on-board (COB) LED video wall designed to deliver high-quality direct-view imaging in high-traffic indoor spaces. This complete package builds a 109-inch HD video wall using 1.2mm pixel pitch COB cabinets in a 4x2 array, paired with a VC4-L controller and spares. As a fine-pitch COB LED video wall, it provides durable, high-density imaging for lobbies, conference rooms, and broadcast environments. The full-front-access cabinet design simplifies service and ongoing maintenance.

Product Description

This DirectLight Essential complete system is built around 1.2mm pitch COB cabinets arranged in a 4x2 configuration to produce a 109-inch diagonal HD canvas. COB (chip-on-board) construction offers higher pixel density and increased durability compared with traditional surface-mount LED designs, supporting resilient long-term operation in busy environments. The series uses 27-inch full-front-access cabinets, allowing installation and service from the front, which is valuable for walls mounted in tight or flush installations. The package includes a single power supply configuration, the Planar VC4-L video controller, and spare components to support commissioning and maintenance. With a 30,000:1 contrast ratio and a 3,840Hz refresh rate, the system delivers deep blacks and flicker-free capture for on-camera applications such as broadcast and conferencing. This configuration is well suited to lobbies, conference rooms, classrooms, and regional broadcast studios with abundant ambient light. For complementary LED walls, controllers, and mounts, browse the Planar collection at Creation Networks. Final brightness specification and per-cabinet details for this configuration should be confirmed with Creation Networks. Professional installation and calibration are recommended to achieve uniform output across the array.

Key Features

• 1.2mm COB pixel pitch — Delivers fine-pitch, high-density imaging suited to close viewing distances.
• 109-inch HD canvas — 4x2 cabinet array forms a complete high-definition video wall.
• Chip-on-board construction — Increases pixel density and physical durability versus traditional LED designs.

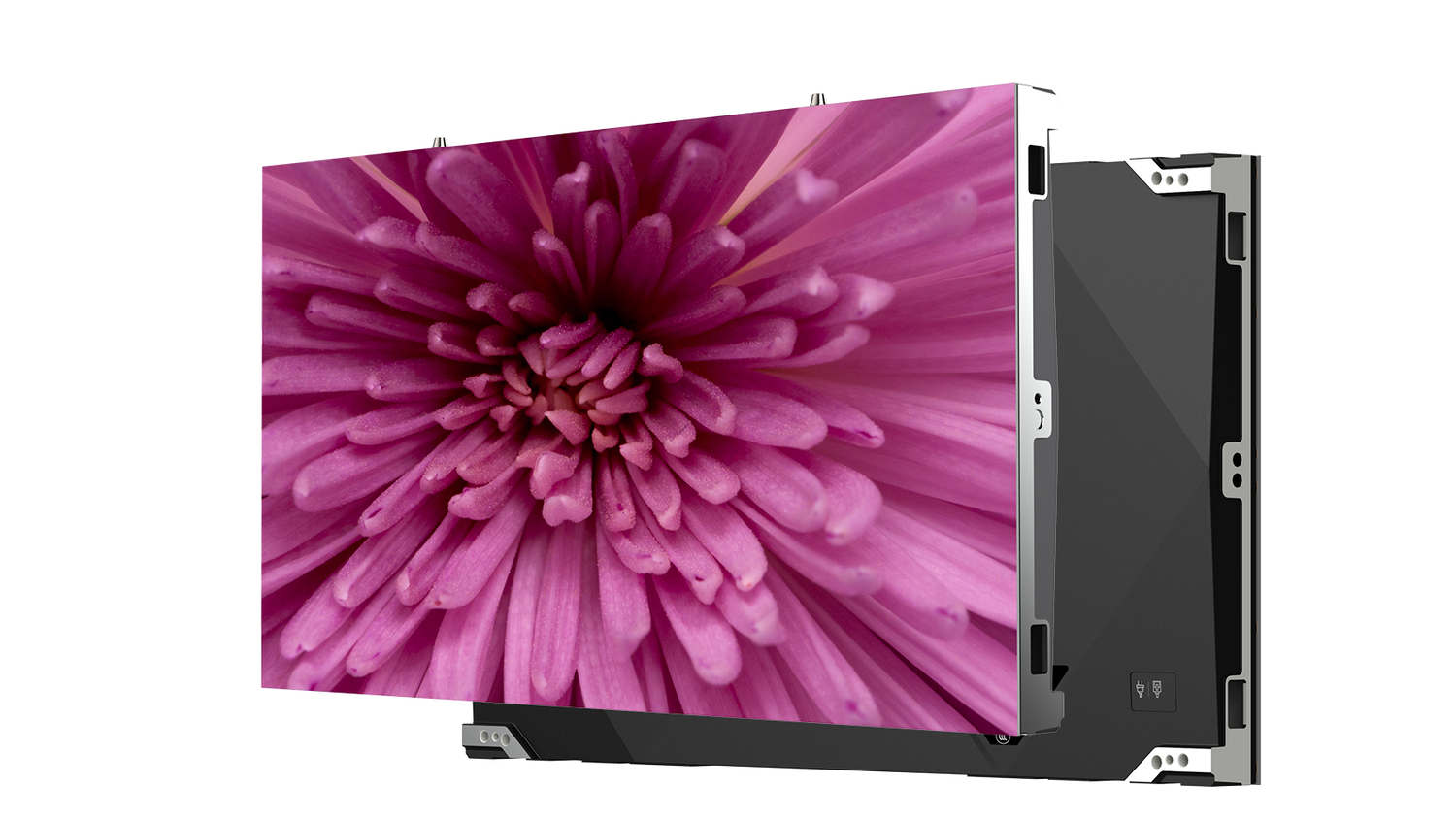

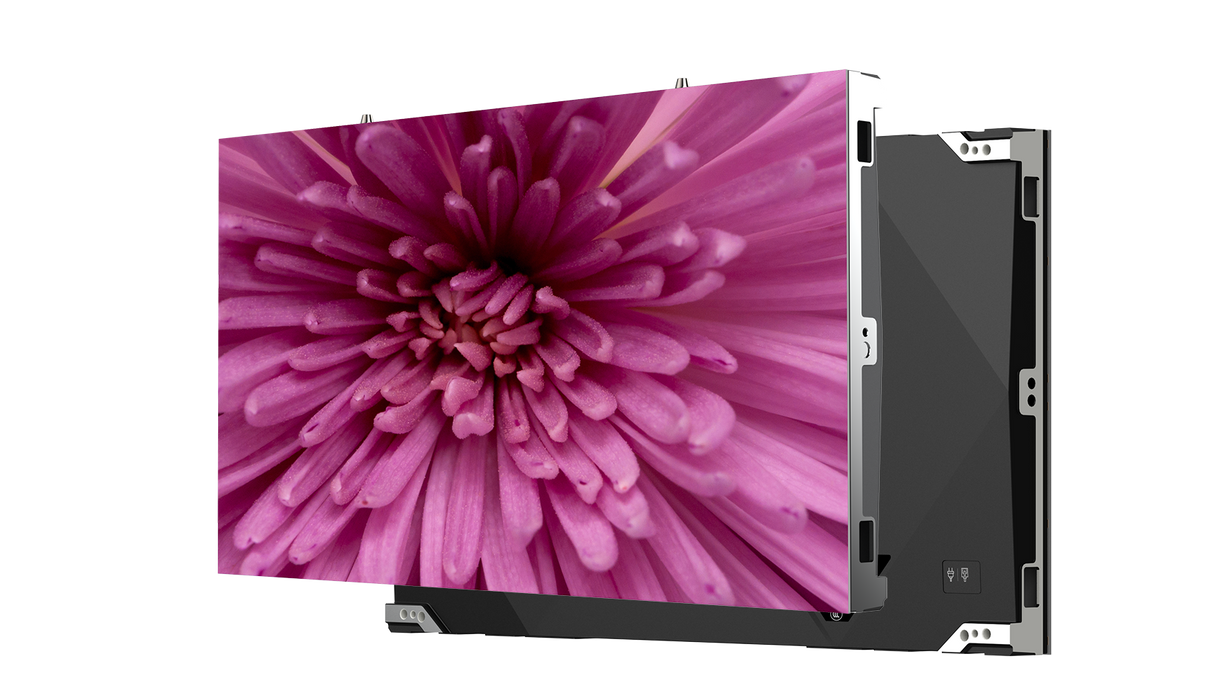

• Full-front-access cabinets — 27-inch cabinets allow front installation and service for flush-mounted walls.
• 30,000:1 contrast ratio — Produces deep blacks and strong image depth in ambient-lit rooms.
• 3,840Hz refresh rate — Supports flicker-free on-camera capture for broadcast and conferencing.
• Complete package — Includes VC4-L controller, single power supply configuration, and spares.

Typical Applications

• Conference room
• Boardroom
• Broadcast studio
• Commercial meeting space
• Auditorium
• All-hands room

Technical Specifications

Frequently Asked Questions

What size video wall does this package build?
This configuration uses a 4x2 array of 1.2mm COB cabinets to form a 109-inch diagonal HD video wall.

Why choose COB over traditional LED?
Chip-on-board construction offers higher pixel density and greater durability, making it well suited to high-traffic indoor environments.

How is the wall installed and serviced?
The 27-inch cabinets support full front access, allowing installation and maintenance from the front. Professional installation and calibration are recommended.

What controller is included?
The package includes the Planar VC4-L video controller along with spare components for commissioning and maintenance.

Does it work for on-camera environments?
Yes. The 3,840Hz refresh rate supports flicker-free capture, suiting broadcast studios and video conferencing rooms.

What warranty and support are available?
Warranty terms and support options should be confirmed with Creation Networks prior to purchase.
