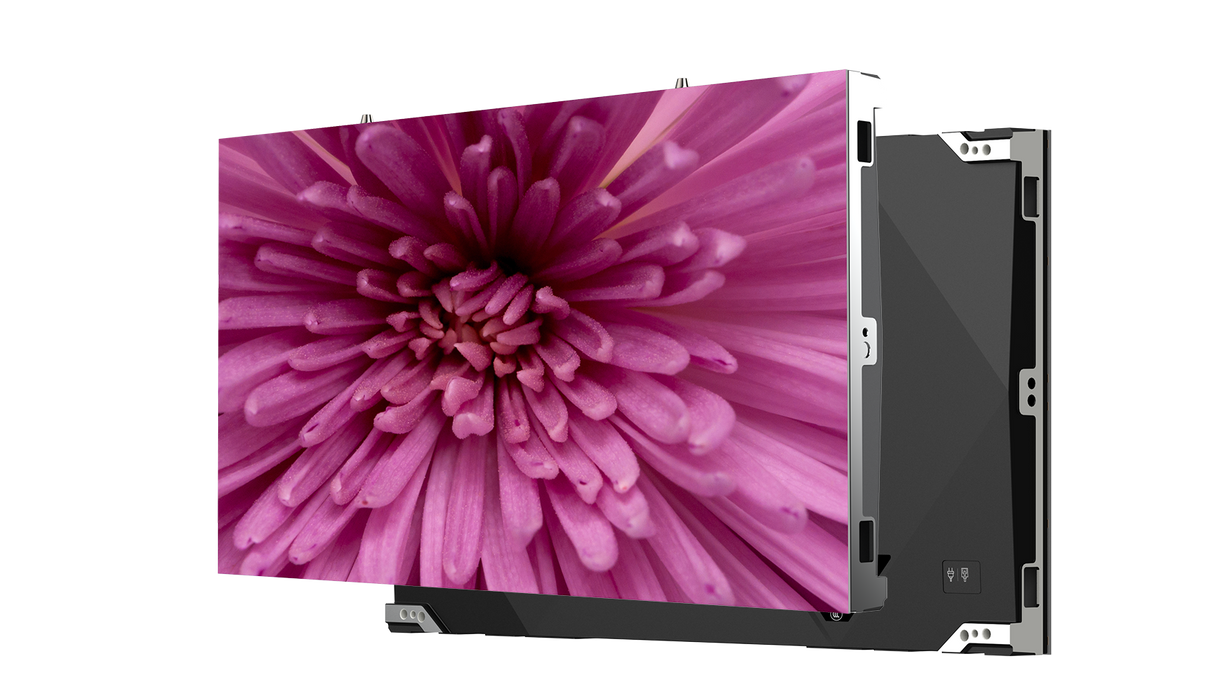

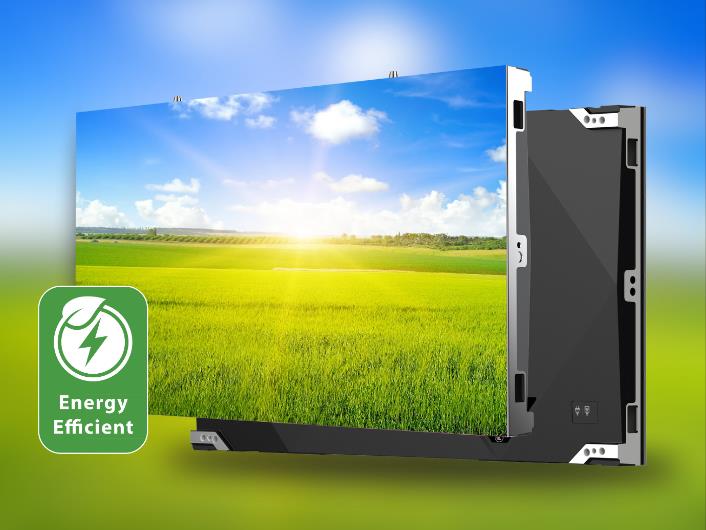

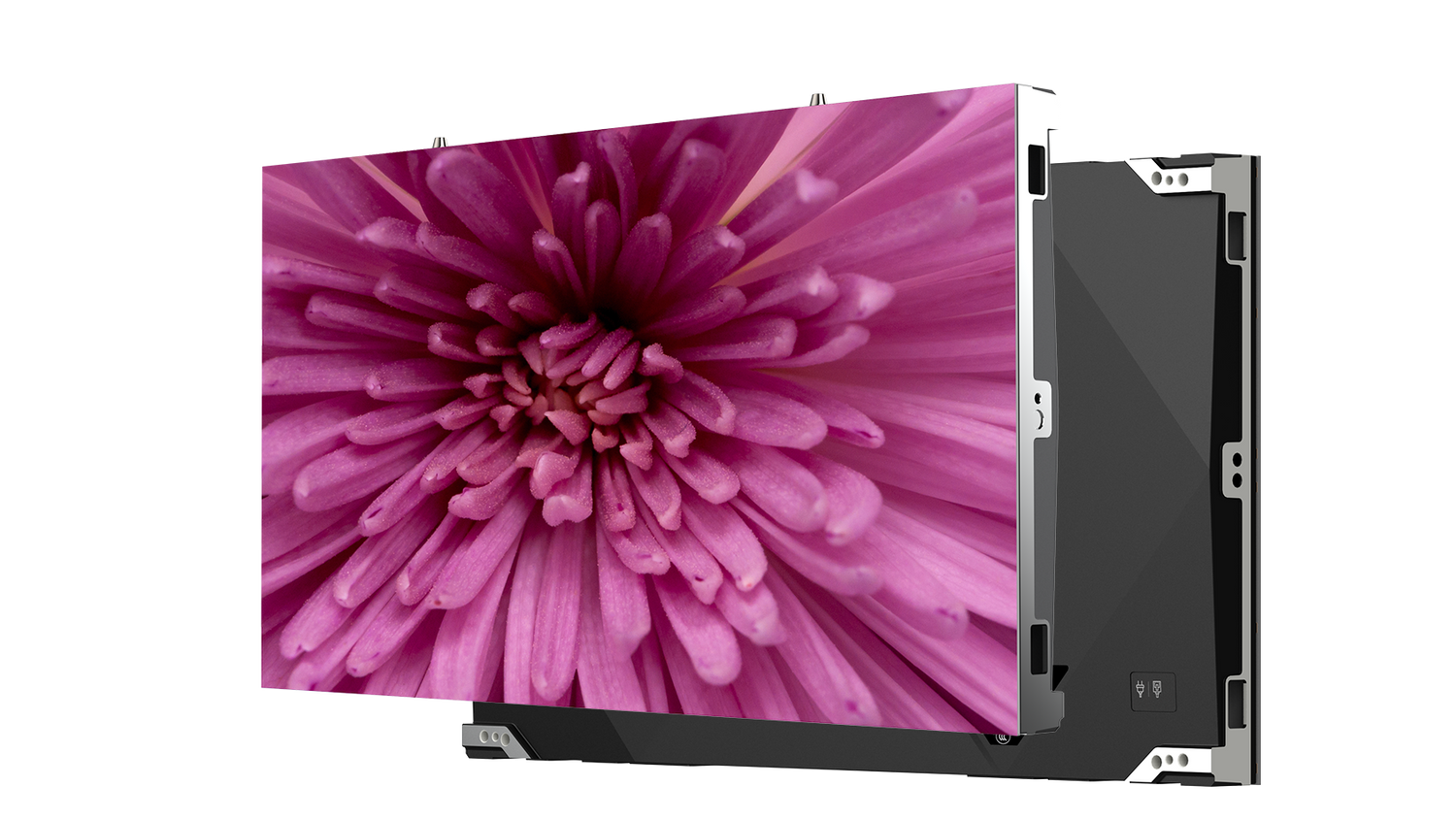

Planar DirectLight Essential 1.5mm – COB LED Cabinet
Product Overview
The Planar DirectLight Essential Series is a Chip-on-Board (COB) LED video wall that brings high-quality fine-pitch performance to an accessible price point. This 1.5mm cabinet measures 600x337.5mm in a 2x2 module array with a ColorLight VD10 receiver card, front service modules, and a single power supply accepting 100-240V, 50/60Hz input. SKU 998-4174-00 ships as a single indoor cabinet.
Product Description
The DirectLight Essential cabinet (998-4174-00) uses 1.5mm COB LED on a 600x337.5mm cabinet built from a 2x2 module array. COB technology encapsulates the LEDs for higher pixel density and improved durability versus traditional surface-mount designs, and an LED sorting process pairs uniform LEDs to support consistent brightness and color. The series is rated for a 30,000:1 contrast ratio and a 3,840Hz refresh rate, delivering deep blacks and stable capture on camera. A proprietary COB driver IC helps mitigate brightness and color uniformity issues. This cabinet includes a ColorLight VD10 receiver card, front-service modules for installation and maintenance from the viewing side, and a single power supply that accepts 100-240V at 50/60Hz. DirectLight Essential is well suited to lobbies, retail, hospitality, conference rooms, classrooms, and regional broadcast studios, and it is covered by the Planar 3-year LED standard limited warranty. This SKU is a single cabinet; combine cabinets to size the wall. Confirm final brightness for this configuration with our team. See the lineup in our Planar collection.
Key Features
- 1.5mm COB LED — Chip-on-Board construction for higher pixel density and improved durability.
- 600x337.5mm cabinet — 2x2 module array for modular, predictable wall sizing.
- 30,000:1 contrast — High contrast with a 3,840Hz refresh rate for deep blacks and on-camera stability.
- ColorLight VD10 receiver — Integrated VD10 receiver card for signal processing.
- Front service modules — Front-serviceable design reduces depth required behind the wall.
- Single power supply — Accepts 100-240V, 50/60Hz input per cabinet.
- Accessible price point — Delivers COB fine-pitch performance for cost-sensitive deployments.
Typical Applications
- Boardroom
- Conference room
- Commercial meeting space
- Multi-purpose room
- Training room
- Broadcast studio
- Auditorium
- All-hands room
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Planar |
| Series | DirectLight Essential |
| SKU | 998-4174-00 |
| Product Type | Indoor LED Video Wall Cabinet (COB) |
| Pixel Pitch | 1.5mm |
| Cabinet Size | 600x337.5mm |
| Module Array | 2x2 |
| Contrast Ratio | 30,000:1 |
| Refresh Rate | 3,840Hz |
| Receiver Card | ColorLight VD10 |
| Serviceability | Front service modules |
| Power Input | 100-240V, 50/60Hz, single power supply |
| Warranty | Planar 3-year LED standard limited warranty |
Frequently Asked Questions
What LED technology does this cabinet use?
It uses 1.5mm Chip-on-Board (COB) LED, which improves pixel density and durability versus traditional designs.
Is this a complete video wall?
No. SKU 998-4174-00 is a single cabinet. Cabinets combine to build a wall sized to your space.
What contrast and refresh rate does it offer?
The DirectLight Essential Series is rated for 30,000:1 contrast and a 3,840Hz refresh rate.
Where is DirectLight Essential typically used?
It suits lobbies, retail, hospitality, conference rooms, classrooms, and regional broadcast studios.
What warranty applies?
DirectLight Essential is covered by the Planar 3-year LED standard limited warranty.
