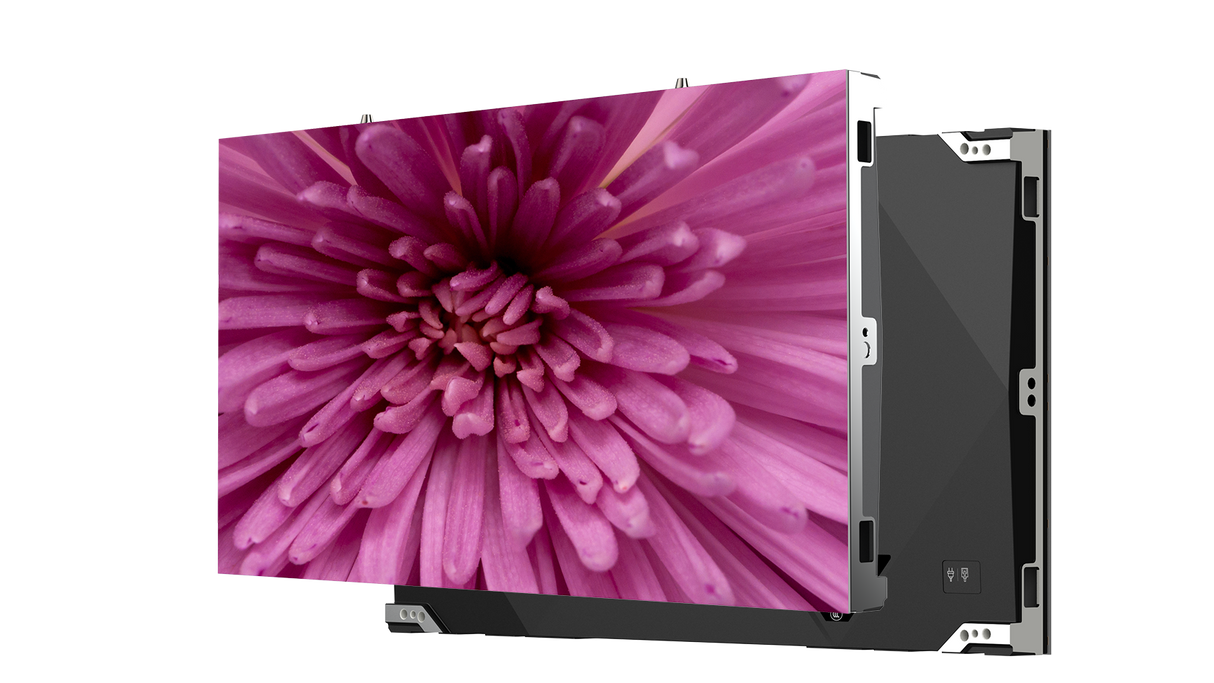

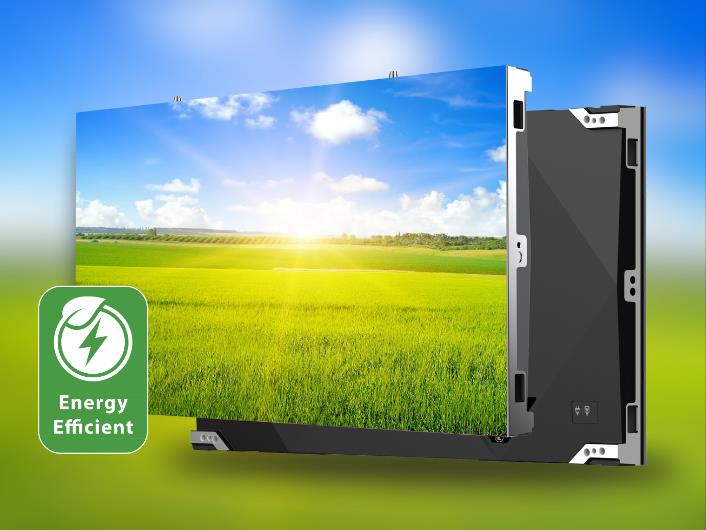

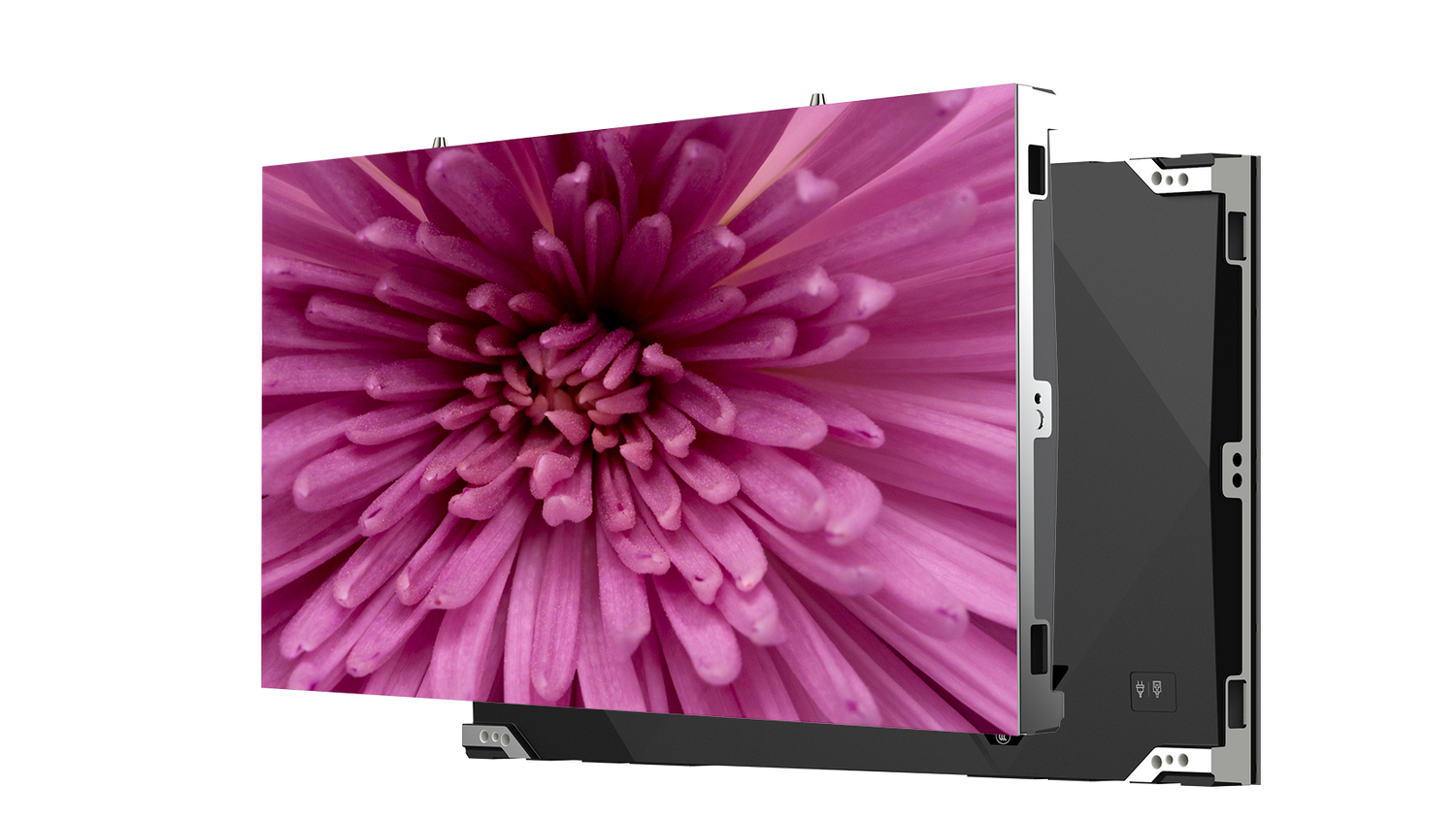

Planar DirectLight Essential – 1.2mm COB LED Video Wall Cabinet

Product Overview

The Planar DirectLight Essential 1.2mm pitch cabinet brings Chip-on-Board (COB) LED technology to projects that need high pixel density without a premium price point. This 600x337.5mm cabinet uses a 4x2 module array, a ColorLight VD10 receiver card, and front-serviceable modules for fast installation and maintenance. It is engineered for high-traffic indoor environments where image clarity and durability are priorities. The single power supply accepts 100-240V AC, 50/60Hz input for flexible deployment.

Product Description

The Planar DirectLight Essential Series was designed to make fine-pitch COB video walls accessible to a wider range of commercial AV installations. COB construction encapsulates the LED chips beneath a protective resin layer, which improves resistance to impact, dust, and abrasion compared with conventional surface-mount LED packages. This 1.2mm pitch model delivers high pixel density suited to close viewing distances in lobbies, retail spaces, conference rooms, and broadcast environments. A proprietary driver IC built specifically for COB technology controls power and data to each LED to support consistent brightness and color uniformity across the wall. The series carries a 30,000:1 contrast ratio and a 3,840Hz refresh rate, which helps the display render deep blacks and smooth motion on camera. Front-service access to modules and electronics allows a single technician to maintain the wall without rear clearance. The 600x337.5mm cabinet format and 4x2 module array let integrators scale the canvas to the dimensions a room requires. The included ColorLight VD10 receiver card pairs with compatible ColorLight controllers, and the series is also compatible with the Planar WallDirector video controller. To compare configurations across the DirectLight Essential family, view our Planar collection. For complete pixel-level specifications on this SKU, contact Creation Networks to confirm.

Key Features

• Chip-on-Board LED technology — COB construction encapsulates the LED array under a protective resin layer for improved durability in high-traffic spaces.
• 1.2mm pixel pitch — Fine pitch supports high pixel density and close viewing distances for detailed content.
• 30,000:1 contrast ratio — Deep black levels and high contrast improve image depth and on-camera performance.
• 3,840Hz refresh rate — High refresh reduces flicker and scan lines when the wall is captured by cameras.
• Front-serviceable modules — Front access to modules and electronics enables single-person maintenance without rear clearance.
• ColorLight VD10 receiver card — Integrated receiver card pairs with compatible ColorLight LED controllers.
• Proprietary COB driver IC — A driver IC built for COB precisely controls power and data to support brightness and color uniformity.
• Universal AC input — The single power supply accepts 100-240V AC, 50/60Hz for flexible installation.

Typical Applications

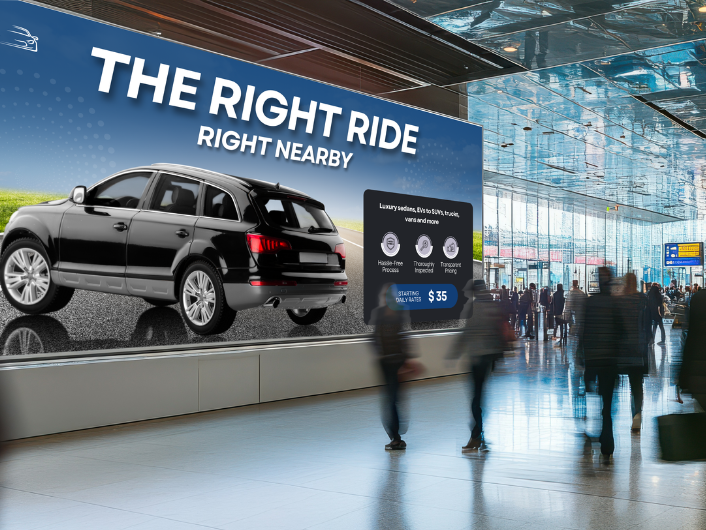

• Corporate lobbies and reception areas
• Conference rooms and meeting spaces
• Retail and showroom environments
• Broadcast and regional studio backdrops
• Higher education and classroom spaces
• Hospitality and entertainment venues

Technical Specifications

Per-SKU pixel and electrical values vary by configuration; contact Creation Networks to confirm.

Frequently Asked Questions

• What is Chip-on-Board (COB) LED technology? COB encapsulates the LED chips under a protective resin layer rather than mounting individual surface-mount packages, which improves durability against impact, dust, and abrasion.
• What pixel pitch does this cabinet use? This model has a 1.2mm pixel pitch, suited to high pixel density and close viewing distances.
• Can this wall be serviced from the front? Yes. The cabinet uses front-serviceable modules and electronics, allowing maintenance without rear access.
• What controller does it work with? It includes a ColorLight VD10 receiver card and is compatible with ColorLight controllers and the Planar WallDirector video controller.
• What power input does it require? The single power supply accepts 100-240V AC at 50/60Hz.
• How do I confirm exact specifications for a project? Contact Creation Networks to confirm full pixel-level and electrical specifications for this SKU.
