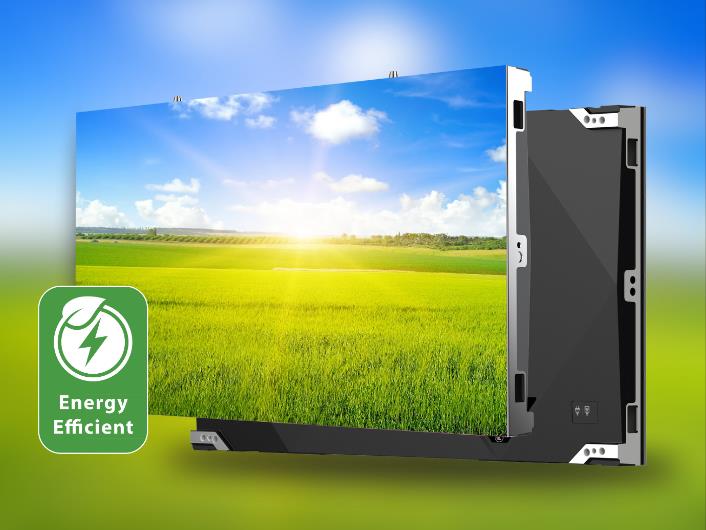

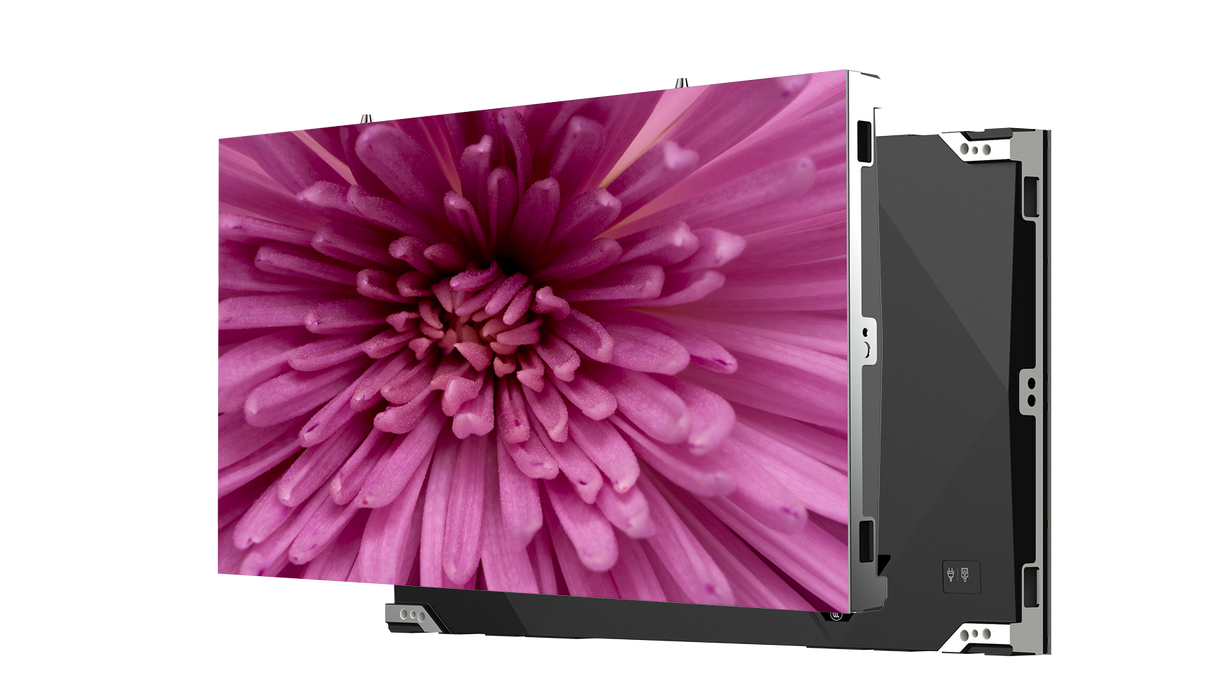

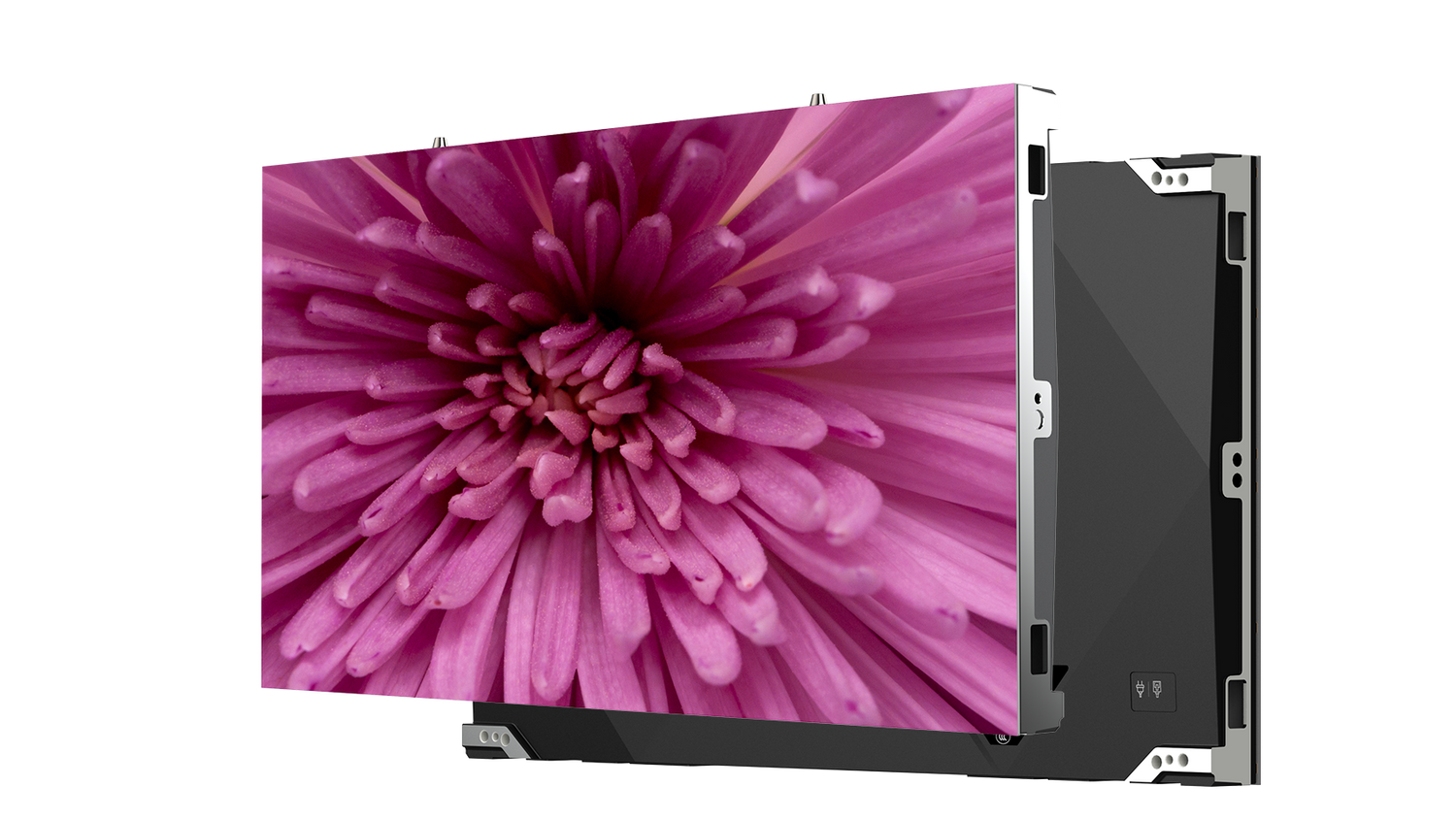

Planar DirectLight Essential – 1.2mm COB LED Module

Product Overview

The Planar DirectLight Essential LED module delivers a 1.2mm pixel pitch using Chip-on-Board (COB) LED technology in a compact 150 x 168.75mm format. Engineered for fine-pitch indoor video walls, it supports high-resolution content at close viewing distances. This module is a serviceable building block within the DirectLight Essential platform, making it well suited for control rooms, lobbies, and corporate displays. It is offered through Creation Networks for integrators specifying Planar fine-pitch LED systems.

Product Description

This DirectLight Essential module uses COB LED packaging, which encapsulates the LED diodes under a protective resin layer for improved durability against impact, moisture, and handling during installation. The 1.2mm pixel pitch produces a dense pixel array that renders text, fine graphics, and video with clarity at typical indoor seating distances. Each 150 x 168.75mm module is designed to tile into larger arrays, allowing integrators to scale a video wall to a required width and height. COB construction also contributes to a wide viewing angle and consistent color uniformity across the display surface. The module is field-serviceable, supporting front or rear access depending on the mounting structure used in the broader DirectLight Essential system. Because exact per-SKU electrical and structural details depend on the chosen cabinet and configuration, integrators should contact Creation Networks to confirm compatibility for a specific build. Additional DirectLight and Planar LED components are available in our Planar collection. This SKU covers the LED module only and does not include a cabinet, mounting structure, or controller. Pairing the correct modules, power, and signal components is essential to a complete DirectLight Essential deployment.

Key Features

• 1.2mm pixel pitch — Fine pixel density supports high-resolution content and close indoor viewing distances.
• COB LED technology — Chip-on-Board packaging protects the LED surface against impact, dust, and moisture for greater reliability.
• Compact 150 x 168.75mm module — Standardized module size tiles predictably into larger video wall arrays.
• Wide viewing angle — COB construction supports broad horizontal and vertical viewing with consistent color.
• Field-serviceable design — Modular architecture allows targeted service within the DirectLight Essential platform.
• Indoor fine-pitch application — Optimized for corporate, control room, and lobby video wall environments.

Technical Specifications
