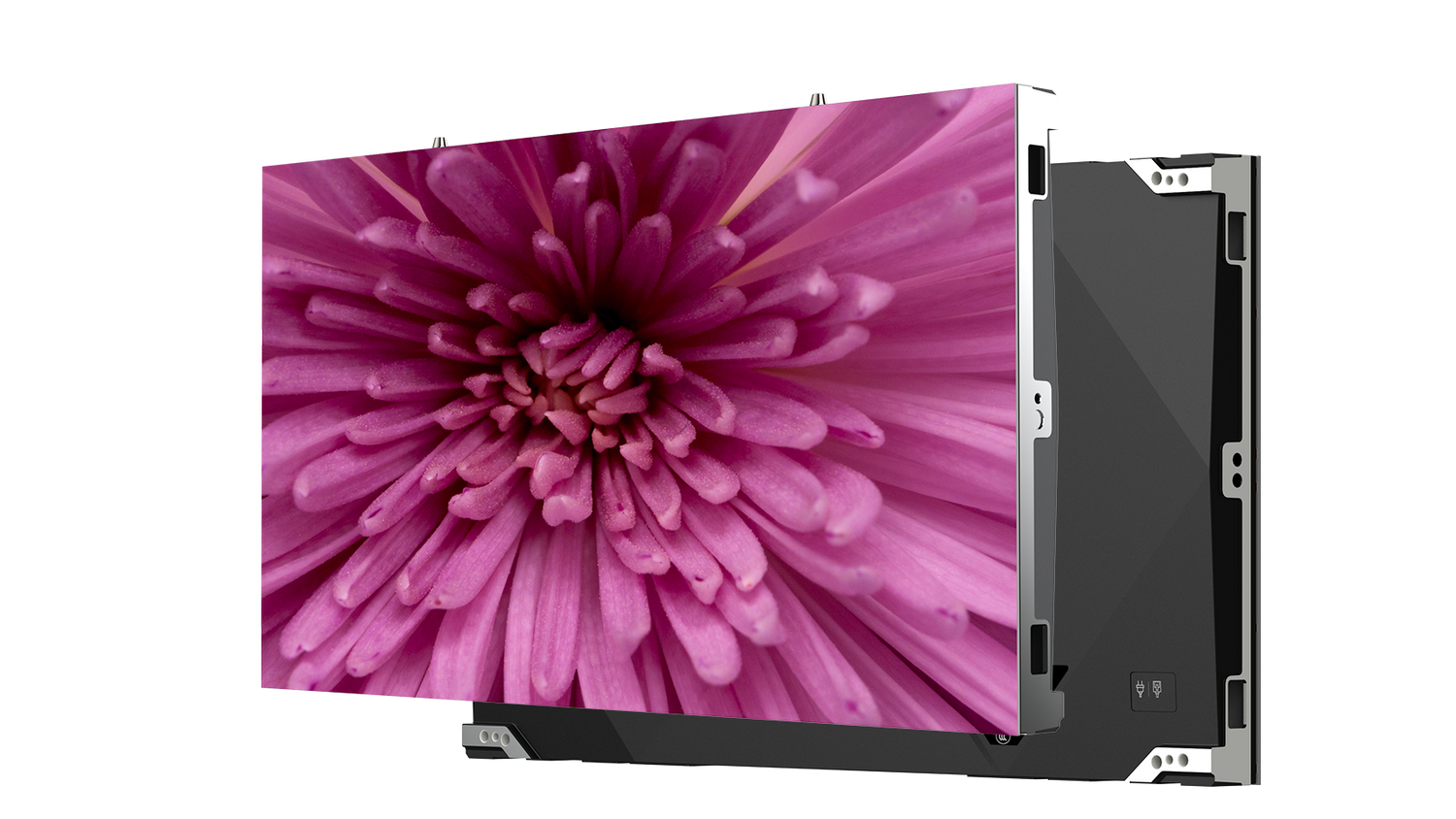

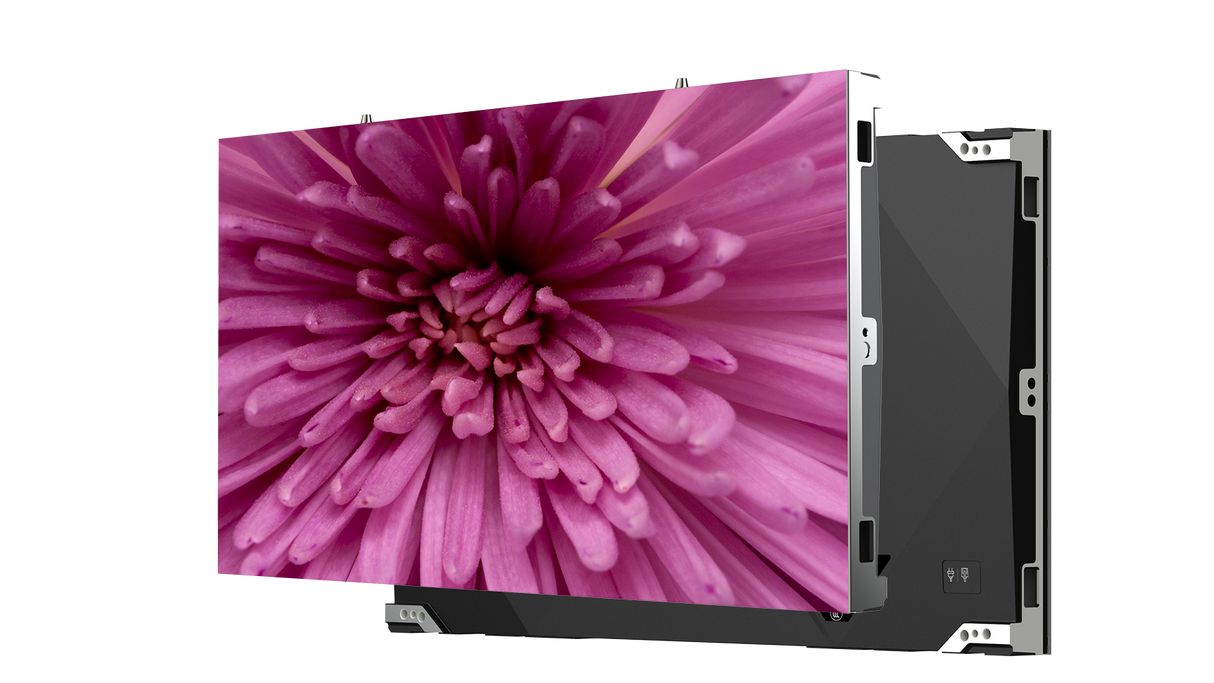

Planar DirectLight Essential 0.9mm COB LED Cabinet

Product Overview

The Planar DirectLight Essential Series is an indoor Chip-on-Board (COB) LED video wall line that delivers high pixel density and durability at an accessible price point. This cabinet features a fine 0.9mm pixel pitch in a 600x337.5mm cabinet with a 4x2 module array, a ColorLight VD10 receiver card, and front-service modules. A single power supply accepts 100-240VAC, 50/60Hz input. The DirectLight Essential 0.9mm COB LED cabinet suits high-traffic indoor environments where close viewing and durability are priorities.

Product Description

The Planar DirectLight Essential Series 0.9mm COB LED cabinet is designed for integrators specifying fine-pitch video walls in lobbies, retail spaces, conference rooms, and broadcast studios. COB (Chip-on-Board) technology encapsulates the LEDs in a durable surface that resists handling and physical contact, an advantage in high-traffic spaces and during installation and service. The series delivers deeper blacks and sharper visuals with a high contrast ratio and a high refresh rate, producing a clean image even in environments with abundant ambient light. A proprietary driver IC built for COB technology controls power and data to each LED to mitigate brightness and color uniformity issues across the panel. This configuration uses a 600x337.5mm cabinet with a 4x2 module array and is supplied with a ColorLight VD10 receiver card that sets processor compatibility. Front-service modules allow technicians to reach modules and electronics from the front of the wall, supporting in-place maintenance for wall-mounted installations. A single power supply with a 100-240VAC, 50/60Hz input simplifies power distribution across a tiled array. The fine 0.9mm pixel pitch produces a tight, detailed image suited to short viewing distances common in premium indoor spaces. Integrators evaluating COB fine-pitch options can review the broader range on the Planar collection at Creation Networks. Because per-SKU brightness and power figures vary by configuration, contact Creation Networks to confirm exact specifications for your project.

Key Features

• 0.9mm pixel pitch — Fine pitch produces a detailed image for short indoor viewing distances.
• COB (Chip-on-Board) technology — Durable encapsulated surface resists handling and physical contact for high-traffic environments.
• High contrast and refresh rate — Delivers deeper blacks and sharper visuals even under abundant ambient light.
• Proprietary COB driver IC — Controls power and data to each LED to mitigate brightness and color uniformity issues.
• 600x337.5mm cabinet, 4x2 array — Modular format for tiling into larger indoor video walls.
• ColorLight VD10 receiver card — Cabinet is supplied with a ColorLight VD10 Rx card for processor compatibility.
• Front-service modules — Modules and electronics are accessible from the front for in-place maintenance.
• Single power supply — Accepts 100-240VAC, 50/60Hz input for simplified power distribution.

Typical Applications

• Corporate lobbies and conference rooms
• Retail and hospitality video walls
• Broadcast and regional studios
• High-traffic indoor environments with ambient light

Technical Specifications

Frequently Asked Questions

What is COB technology?
Chip-on-Board technology encapsulates the LEDs in a durable surface, improving resistance to handling and physical contact for high-traffic environments.

What environment is this cabinet designed for?
It is an indoor cabinet suited to high-traffic spaces such as lobbies, retail, conference rooms, and broadcast studios.

Can it be serviced from the front?
Yes. Front-service modules allow technicians to reach modules and electronics from the front of the wall.

Which receiver card is included?
This configuration ships with a ColorLight VD10 receiver card. Contact Creation Networks to confirm processor compatibility.

What viewing distances suit the 0.9mm pixel pitch?
The fine 0.9mm pitch is well matched to short viewing distances common in premium indoor spaces.

What power input does it require?
It uses a single power supply accepting 100-240VAC, 50/60Hz input. Contact Creation Networks to confirm specifications for your project.
