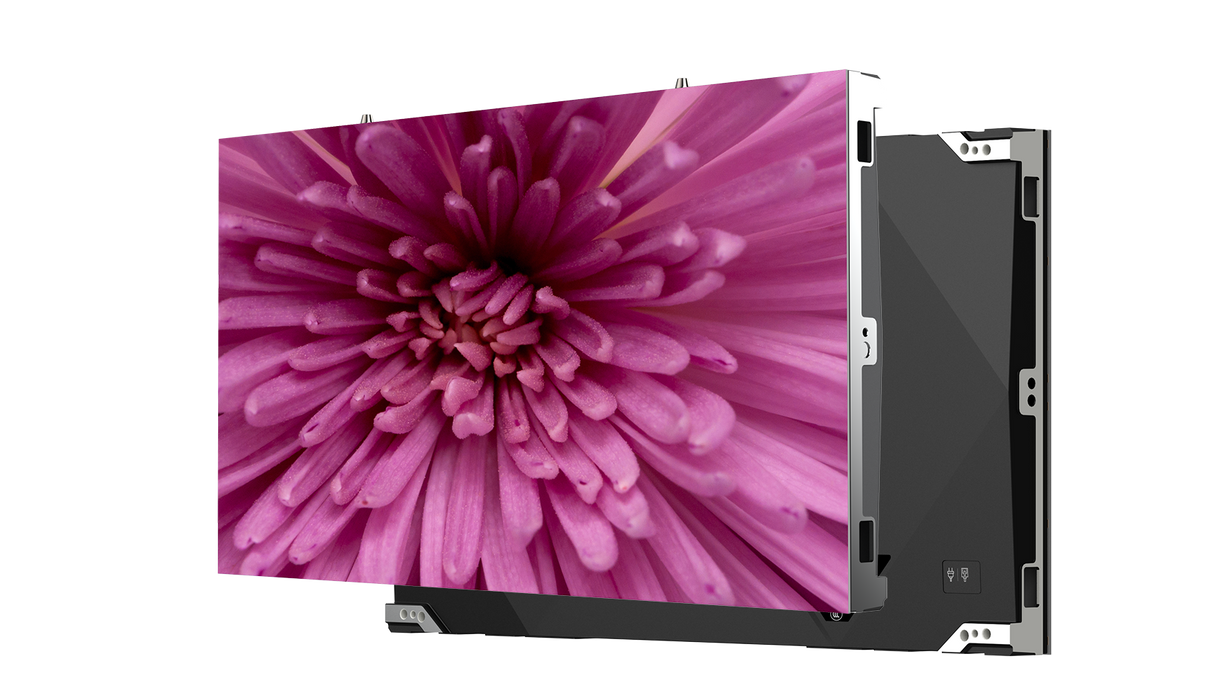

Planar DirectLight Essential – 0.7mm COB LED Cabinet

Product Overview

The Planar DirectLight Essential 0.7mm cabinet is a fine-pitch indoor LED video wall tile built with Chip-on-Board (COB) technology. This configuration uses a 600x337.5mm cabinet with a 4x2 LED module array, a ColorLight VD10 receiver card, front-service modules, and a single power supply with 100-240VAC, 50/60Hz input. The DirectLight Essential Series targets high-quality visual performance at an accessible price point for budget-conscious deployments. It is intended for high-traffic indoor environments where fine detail and durability matter.

Product Description

The Planar DirectLight Essential Series brings COB construction to value-oriented fine-pitch LED projects, using a chip-on-board surface that improves durability and delivers deeper blacks and a high contrast ratio compared with conventional packaged LEDs. This 0.7mm pixel pitch cabinet provides high pixel density for close-viewing applications, and the 600x337.5mm cabinet uses a 4x2 module array with front-service modules so technicians can access and replace modules from the front of the wall where rear clearance is limited. A ColorLight VD10 receiver card handles signal processing within the cabinet, and a single integrated power supply accepts standard 100-240VAC, 50/60Hz input. Across the series, Planar specifies a high contrast ratio and a high refresh rate, supported by a proprietary driver IC designed for COB technology to help maintain brightness and color uniformity. This cabinet is one tile in a larger wall; total cabinet count, processing, and mounting depend on the target image size and resolution. For organizations comparing fine-pitch options, related Planar LED video walls can be reviewed through the Planar collection at Creation Networks. Per-cabinet brightness, weight, and exact resolution values follow the DirectLight Essential 0.7 specifications. For a complete wall design and confirmed per-cabinet specifications, contact Creation Networks to confirm.

Key Features

• 0.7mm Fine Pixel Pitch — High pixel density suited to close-viewing indoor applications.
• COB Technology — Chip-on-Board construction improves durability and delivers deeper blacks and high contrast.
• 600x337.5mm Cabinet — Cabinet uses a 4x2 LED module array for the configured layout.
• Front-Service Modules — Modules are serviceable from the front, ideal where rear access is restricted.
• ColorLight VD10 Receiver — Integrated VD10 receiver card manages in-cabinet signal processing.
• Single Power Supply — One integrated PSU with 100-240VAC, 50/60Hz universal input.
• High Refresh and Contrast — The series specifies a high refresh rate and high contrast ratio for clean motion and deep blacks.

Typical Applications

• Corporate lobbies and reception areas
• Conference rooms and briefing centers
• Retail and hospitality feature walls
• Classrooms and lecture halls
• Regional broadcast and studio backdrops

Technical Specifications

Frequently Asked Questions

What is COB technology?
Chip-on-Board mounts LED chips directly onto the board for improved durability, deeper blacks, and high contrast versus conventional packaged LEDs.

What pixel pitch is this cabinet?
This configuration has a 0.7mm pixel pitch for fine-detail, close-viewing applications.

Can it be serviced from the front?
Yes. This cabinet uses front-service modules, which suits installations with limited rear access.

What power input does it use?
It uses a single power supply with universal 100-240VAC, 50/60Hz input.

How many cabinets make a full wall?
Cabinet count depends on the target size and resolution. Contact Creation Networks to confirm a complete design.
