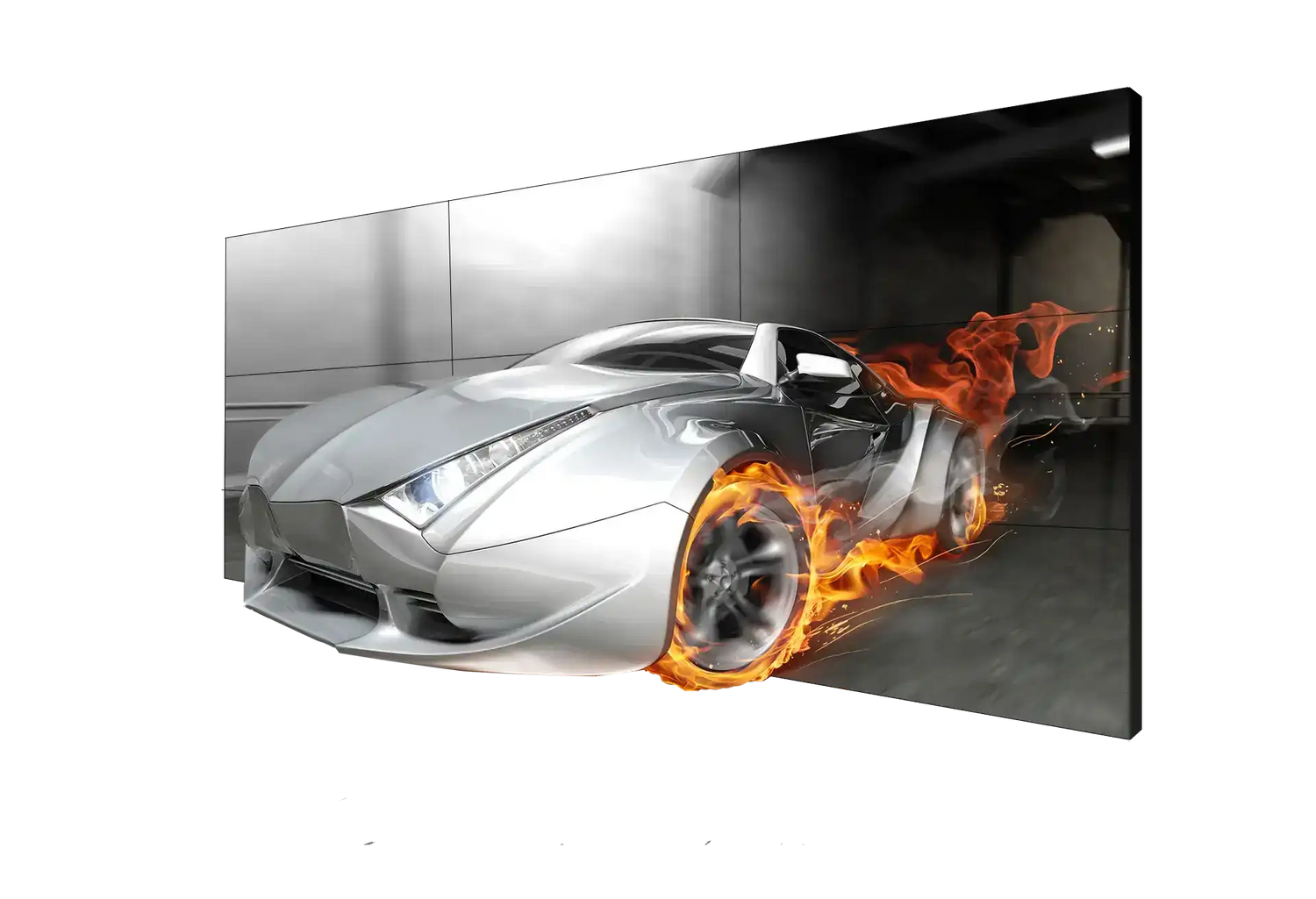

Planar Clarity Matrix G3 MX55X3 55in 1920x1080, 700 nit, 2.6mm LCD video wall system - 998-3281-00
Planar Clarity Matrix G3 MX55X3 55in 1920x1080, 700 nit, 2.6mm LCD video wall system - 998-3281-00 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Planar Clarity Matrix G3 MX55X3 55in 1920x1080, 700 nit, 2.6mm LCD ...
Product Overview
The Planar Clarity Matrix G3 MX55X3 is a 55" Full HD LCD video wall panel featuring a 2.6mm tiled bezel width, 700 nit brightness, and the latest-generation G3 platform with user-selectable local dimming for superior contrast performance. Designed for 24/7 mission-critical operation, the MX55X3 delivers a 10,000:1 contrast ratio with local dimming enabled and supports landscape or portrait orientation. Built-in 200-foot Cat6A STP video extension and compatibility with Planar WallDirector software make it a complete, integrated video wall solution at a competitive price point within the G3 family.
Product Description
The Planar Clarity Matrix G3 MX55X3 provides the core G3 platform advantages—local dimming, off-board electronics, and WallDirector integration—at the 2.6mm bezel tier, making it the right choice for video wall deployments where the budget warrants G3-generation technology but where ultra-narrow 0.88mm or 1.8mm bezels are not required by the application. At 700 nits and 10,000:1 contrast with local dimming, it delivers a visually compelling image across all array sizes.
User-selectable local dimming delivers the highest contrast ratio and black-level uniformity the G3 platform offers—10,000:1 with dimming on versus 1,100:1 without—giving operators control over whether to prioritize contrast or uniformity for their content type. The 8ms response time and 178-degree viewing angle ensure the wall is legible from across large control rooms and open spaces. Video inputs include four HDMI 2.0 ports (with HDCP 2.2) and one DisplayPort 1.2 on supported controller variants. The off-board power supply supports redundant and hot-swap modules for continuous operation. Cat6A STP is required; built-in extension reaches 200 feet without third-party hardware.
Key Features
- 55" G3-platform commercial LCD, 24/7 rated, landscape or portrait
- 700 nit brightness; 10,000:1 contrast with local dimming enabled
- 2.6mm tiled bezel width for balanced performance and value
- User-selectable local dimming for contrast and black-level control
- Full HD 1920x1080, LED backlit, 8ms response time
- 178-degree full viewing angle
- Built-in 200 ft video extension over Cat6A STP
- 4x HDMI 2.0 (HDCP 2.2) + 1x DisplayPort 1.2 inputs
- Off-board power: redundant, hot-swap capable
- Planar EasyAxis or VESA mount options
- Compatible with Planar WallDirector software
- Optional Clarity Matrix MultiTouch and ERO-LCD protection
- 50,000-hour backlight life at half brightness
Typical Applications
- Network operations centers (NOC) and IT command rooms
- Corporate lobby and boardroom video walls
- Broadcast and media monitoring walls
- Retail flagship store video wall installations
- Education and university large-format display systems
- Transportation control and operations centers

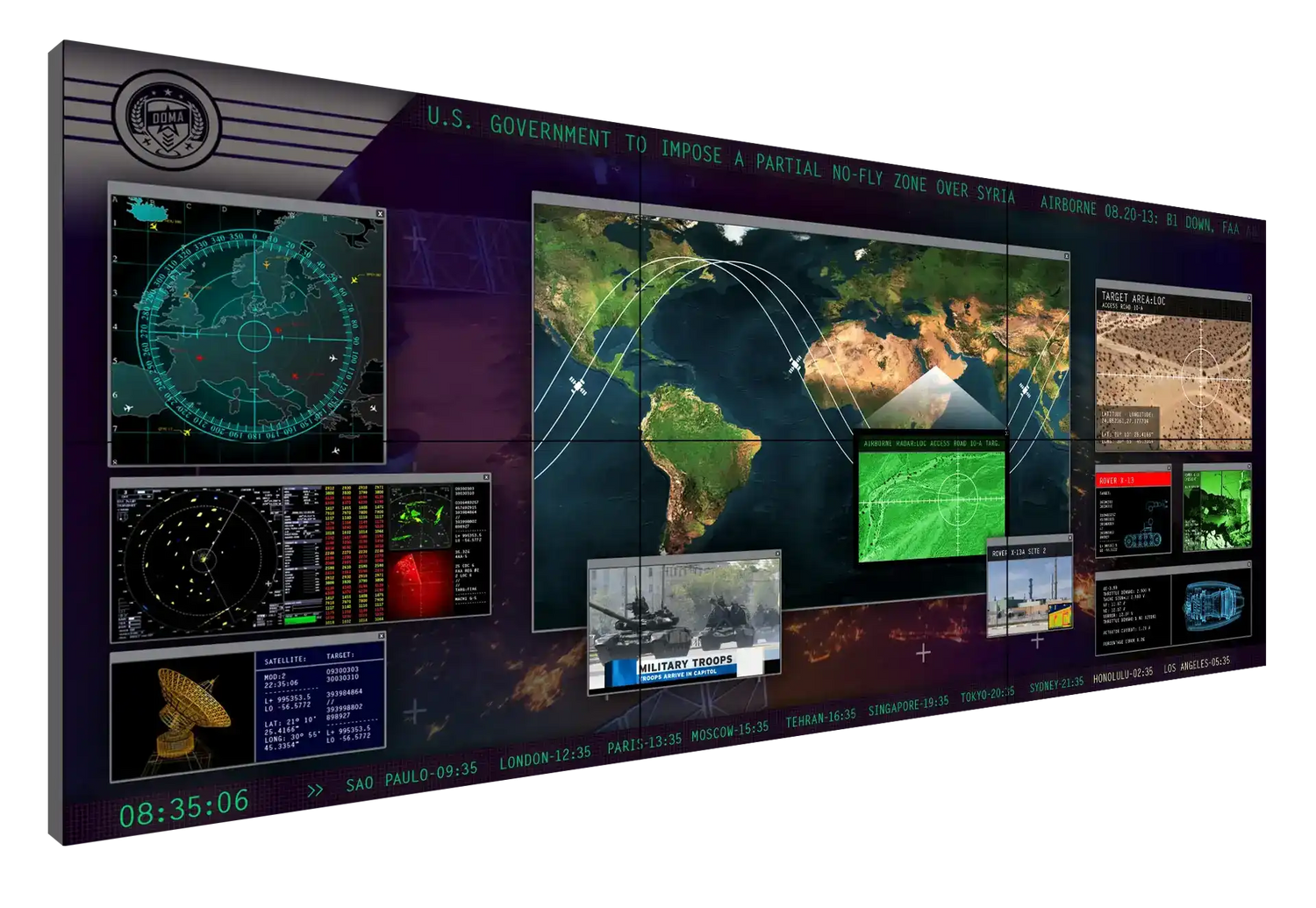

- Military and government situational awareness displays
Technical Specifications
| Specification | Detail |
|---|---|
| Model | MX55X3 (998-3281-00) |
| Screen Size | 55" |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 700 nit (cd/m²) |
| Contrast Ratio | 10,000:1 (local dimming on) / 1,100:1 (off) |
| Tiled Bezel Width | 2.6mm (0.88mm thermal gap required) |
| Backlight | LED |
| Response Time | 8ms |
| Viewing Angle | 178° (H/V) |
| Installed Depth | 3.6" (91.44mm) |
| Dimensions (H x W x D) | 26.8" x 47.7" x 3.6" (landscape) |
| Weight | 47 lb (landscape) / 49 lb (portrait) |
| Video Inputs | 4x HDMI 2.0 (HDCP 2.2), 1x DisplayPort 1.2 |
| Video Extension | 200 ft (60m) over Cat6A STP |
| Power Supply | Off-board, redundant optional, hot-swap |
| Power Consumption | 235W max per display |
| Backlight Life | 50,000 hrs (at 1/2 brightness) |
| Orientation | Landscape or Portrait |
| Cabling | Cat6A STP required |
| Operation | 24/7 rated |
| Touch Option | Clarity Matrix MultiTouch (optional) |
| Protection Option | ERO-LCD (optional) |
| Certification | FCC Class A, CE, EU RoHS |
| Part Number | 998-3281-00 |
Competitor Comparison
| Feature | Planar MX55X3 (G3) | Samsung IA Series | LG LSCB Series | NEC UN Series |
|---|---|---|---|---|
| Brightness | 700 nit | 500 nit | 500 nit | 500 nit |
| Local Dimming | Yes (user-selectable) | No | No | No |
| Contrast (w/ dimming) | 10,000:1 | ~4,000:1 | ~3,500:1 | ~3,000:1 |
| Bezel Width | 2.6mm | 1.8mm–3.5mm | 1.8mm–3.5mm | 1.8mm |
| Off-board Electronics | Yes | No | No | No |
| 24/7 Rated | Yes | Yes | Yes | Yes |
| Generation | G3 | — | — | — |
Frequently Asked Questions
- What is the difference between the MX55X3 and the MX55X2-V?
- The MX55X3 (2.6mm bezel, G3) is the entry-tier G3 model, while the MX55X2-V (1.8mm bezel, G3) offers a narrower tiled bezel for applications requiring a more seamless wall surface. Both deliver 700 nit brightness on the G3 platform.
- What does user-selectable local dimming do?
- Local dimming independently controls backlight zones to produce deeper blacks and higher contrast (10,000:1 on) while the non-dimming mode (1,100:1) provides more uniform brightness across the panel surface—useful for content with uniform background levels.
- Is Cat6A STP cabling required?
- Yes. Cat6A STP (shielded twisted pair) cables and connectors are required for signal distribution on the Clarity Matrix G3 platform.

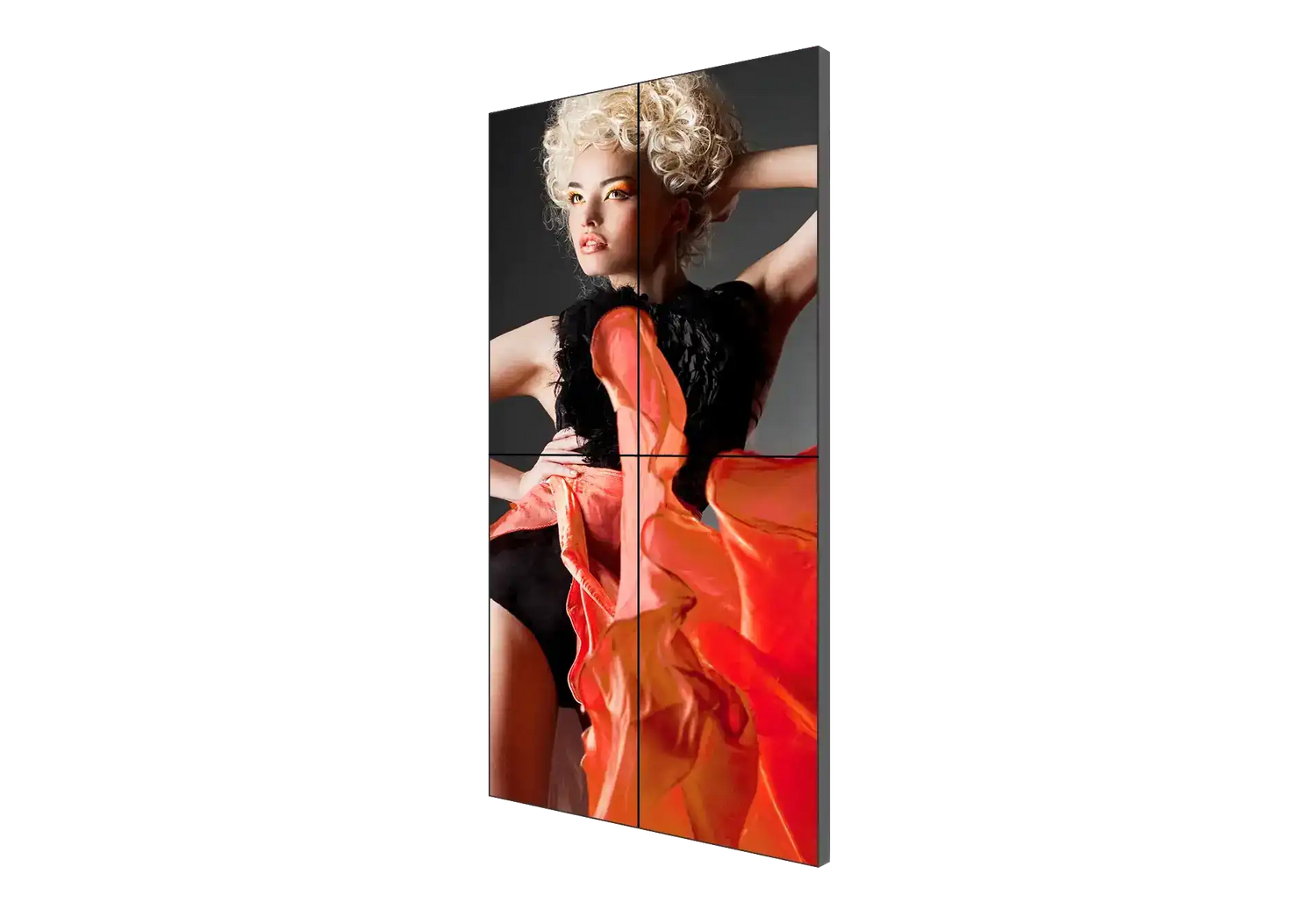

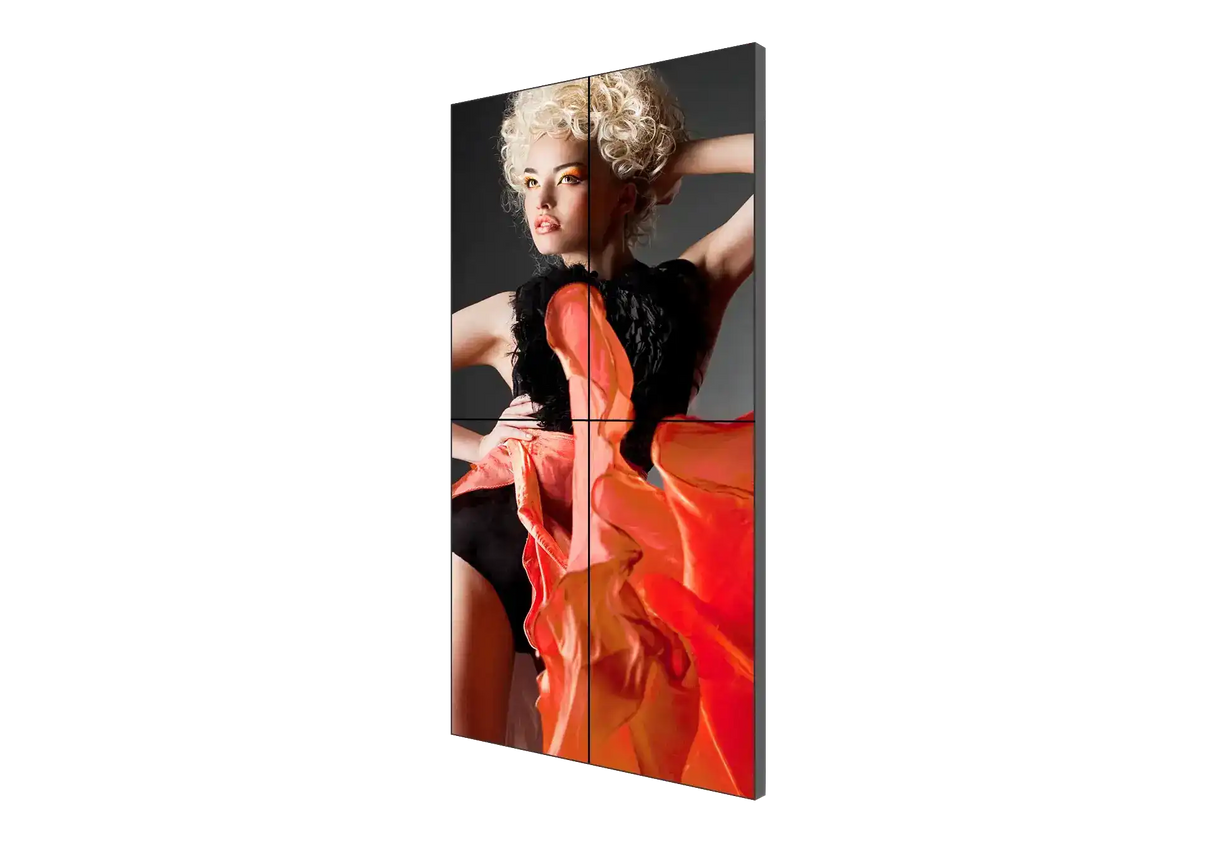

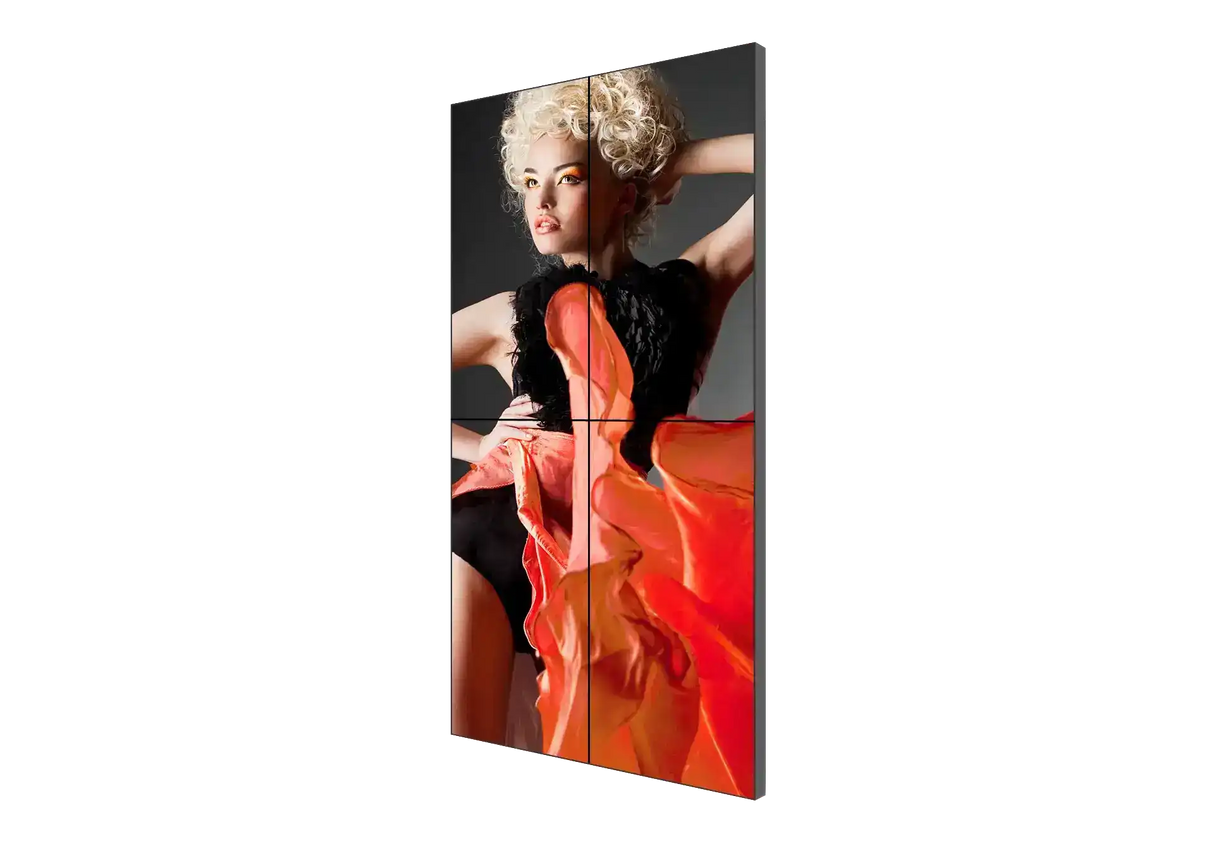

- Can the MX55X3 operate in both landscape and portrait?
- Yes. The MX55X3 supports both landscape and portrait orientations, with slight weight differences (47 lb landscape, 49 lb portrait) accounted for in the EasyAxis mounting configuration.
- What controller options are available?
- The MX55X3 is compatible with Planar VC4H-BP+, VC9H-BP+, and VC4-HSL controller variants, supporting configurations from 4-display up to 80Gb HSL loop capacity for 4K and Full HD source distribution.
- Is touch capability available?
- Yes. The optional Clarity Matrix MultiTouch overlay adds touch interactivity, and the optional ERO-LCD glass bonding adds both ruggedness and optical clarity for public-facing touch installations.
