Planar Clarity Matrix G3 MX55X2-V | 55" LCD Video Wall 700Nit-1.8MM - 998-2673-00

Product Overview

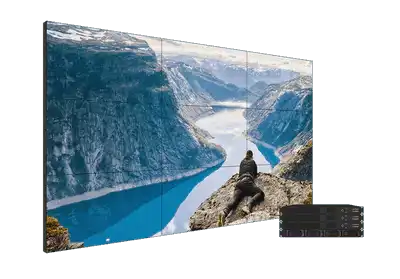

The Planar Clarity Matrix G3 MX55X2-V is a commercial-grade 55" LCD video wall panel engineered for 24/7 mission-critical deployments. Featuring a 1.8mm tiled bezel width, 700 nit brightness, and Full HD 1920x1080 IPS LCD technology, it delivers a virtually seamless digital canvas. LED backlight technology ensures consistent luminance and long-term reliability in demanding environments. Cat6A STP cabling is required for signal distribution.

Product Description

The Planar Clarity Matrix G3 MX55X2-V raises the standard for commercial LCD video wall performance with its third-generation platform. The 1.8mm ultra-narrow tiled bezel minimizes visible gaps between panels, creating a cohesive display surface ideal for large-format video wall arrays. At 700 nits, the panel delivers excellent visibility across a range of ambient lighting conditions found in control rooms, command centers, and broadcast facilities. The VESA mount configuration provides flexible installation options and compatibility with a wide range of mounting solutions.

Designed specifically for the G3 platform, the MX55X2-V integrates seamlessly with Planar's WallDirector software and EasyAxis mounting system. The off-board electronics architecture reduces panel depth, thermal load, and points of failure—maximizing uptime in 24/7 operational environments. The commercial-grade IPS panel ensures wide viewing angles up to 178 degrees, so content remains accurate from virtually any position on the floor.

Key Features

• 55" commercial-grade IPS LCD panel rated for 24/7 continuous operation
• 700 nit peak brightness for high-ambient-light environments
• 1.8mm ultra-narrow tiled bezel width for near-seamless video wall arrays
• Full HD 1920x1080 native resolution with LED backlight technology
• VESA mount configuration for flexible installation compatibility
• Off-board electronics design reduces depth, heat, and maintenance complexity
• Planar EasyAxis Mounting System for precise panel-to-panel alignment
• Cat6A STP signal distribution with built-in video extension capability
• Compatible with Planar WallDirector video wall management software
• 178-degree full viewing angle on IPS LCD panel

Typical Applications

• Operations and network operations centers (NOC/SOC)
• Command and control rooms
• Broadcast studios and media production environments
• Corporate lobbies and executive briefing centers
• Transportation hubs: airports, rail stations, transit control
• Emergency dispatch and public safety command centers
• University and conference room video walls

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is the tiled bezel width of the MX55X2-V?

The MX55X2-V features a 1.8mm tiled bezel width, creating a nearly seamless video wall surface when panels are arrayed together.

Is Cat6A cabling required?

Yes. Cat6A STP (shielded twisted pair) cables and connectors are required for signal distribution on all Clarity Matrix G3 systems.

Can this panel operate 24 hours a day, 7 days a week?

Yes. The MX55X2-V is commercially rated for 24/7 continuous operation, making it suitable for mission-critical environments such as control rooms and NOCs.

What mounting options are available?

The MX55X2-V ships in a VESA mount configuration, compatible with Planar's EasyAxis Mounting System for precise alignment in multi-panel arrays.

What software manages a Clarity Matrix G3 video wall?

Planar WallDirector software provides centralized control, source routing, and health monitoring for Clarity Matrix G3 video wall systems.

What is the difference between the MX55X2-V and the MX55X3?

The MX55X2-V features a 1.8mm bezel and is part of the G3 second-tier line, while the MX55X3 offers a 2.6mm bezel at a lower price point on the same G3 platform.
