Planar Clarity Matrix G3 LX46U-3D Bottom-Row LCD Wall

Product Overview

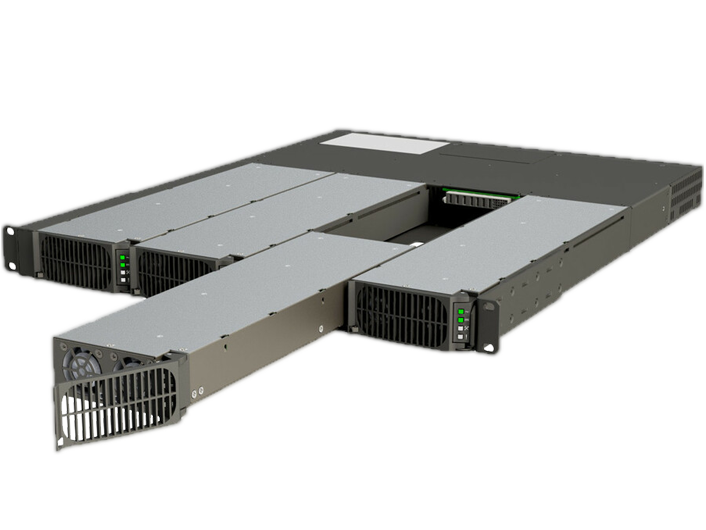

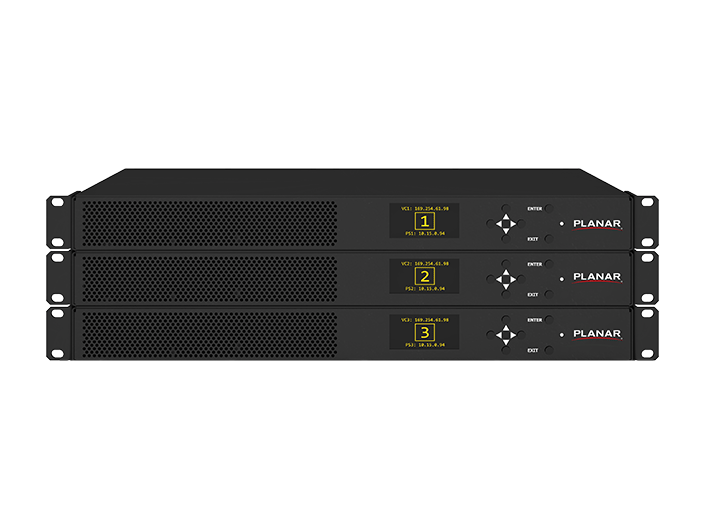

The Planar Clarity Matrix G3 LX46U-3D Bottom is a 46-inch LCD video wall display optimized for the bottom rows of a stereoscopic 3D wall. It combines a Full HD (1920 x 1080) panel with a 3.7mm tiled bezel and 500-nit brightness, and ships as a video wall system with one LCD module, the necessary power supply modules, standard video controller electronics and the Planar EasyAxis mount. This bottom-row configuration is TAA compliant for government and regulated procurement.

Product Description

This LX46U-3D Bottom unit is part of Planar's Clarity Matrix G3 LCD video wall family and is purpose-built for professional visualization environments that require a flicker-free stereoscopic 3D display wall. The "Bottom" designation indicates a unit optimized for the lower rows of a tiled 3D array, where viewing geometry and structural loading differ from upper rows; pairing the correct row-specific units helps maintain consistent 3D performance across the full wall. It is well suited to simulation, geospatial visualization, design review and research applications where depth perception adds analytical value. The panel delivers Full HD resolution at 500 nits for controlled-lighting rooms, and the 3.7mm tiled bezel keeps seams narrow across adjacent displays. The integrated Planar EasyAxis Mounting System works with the platform's off-board electronics to keep installation depth shallow — roughly 3.6 inches in this product family — and to simplify alignment and serviceability. The system is engineered for 24x7 operation, and Cat6A STP (shielded twisted pair) cabling and connectors are required. Because 3D video walls require coordinated content, controller capacity and row-specific module placement, the system is best planned end to end; Creation Networks can scope a layout for a specific application. Browse the full Planar lineup on our Planar collection. Exact row configuration, controller capacity and 3D content workflow vary by design — contact Creation Networks to confirm.

Key Features

• Optimized for bottom rows — Configured for the lower rows of a tiled stereoscopic 3D wall.
• Stereoscopic 3D wall — Designed for flicker-free 3D visualization in professional environments.
• 46-inch Full HD panel — 1920 x 1080 resolution per module for tiled video wall canvases.
• 3.7mm tiled bezel — Narrow seam width supports a near-continuous image across adjacent displays.
• 500-nit brightness — Suited to controlled-lighting visualization rooms.

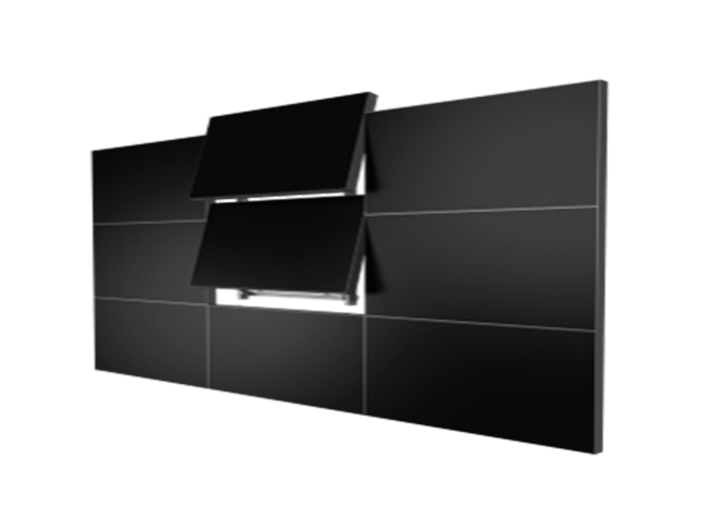

• Planar EasyAxis mount — Integrated mounting system simplifies alignment and serviceability.
• 24x7 reliability — Built for continuous operation in demanding settings.
• TAA compliant — Supports government and regulated procurement.

Typical Applications

• Government space
• Broadcast studio
• Auditorium
• Multi-purpose room
• Commercial meeting space
• Training room

Technical Specifications

Frequently Asked Questions

What does the "Bottom" designation mean?
This unit is optimized for the lower rows of a tiled stereoscopic 3D video wall.

Is this a 3D display?
Yes. It is designed for flicker-free stereoscopic 3D visualization in professional environments.

What is the bezel width?
The tiled bezel width is 3.7mm for a narrow seam across a tiled wall.

What cabling does it require?
Cat6A STP (shielded twisted pair) cables and connectors are required.

What mount is included?
The integrated Planar EasyAxis Mounting System is included.

How do I plan a complete 3D wall?
Bottom and standard units are combined by row for consistent performance. Contact Creation Networks to confirm a layout.
