Planar Clarity Matrix G3 LX46U-3D LCD Video Wall

Product Overview

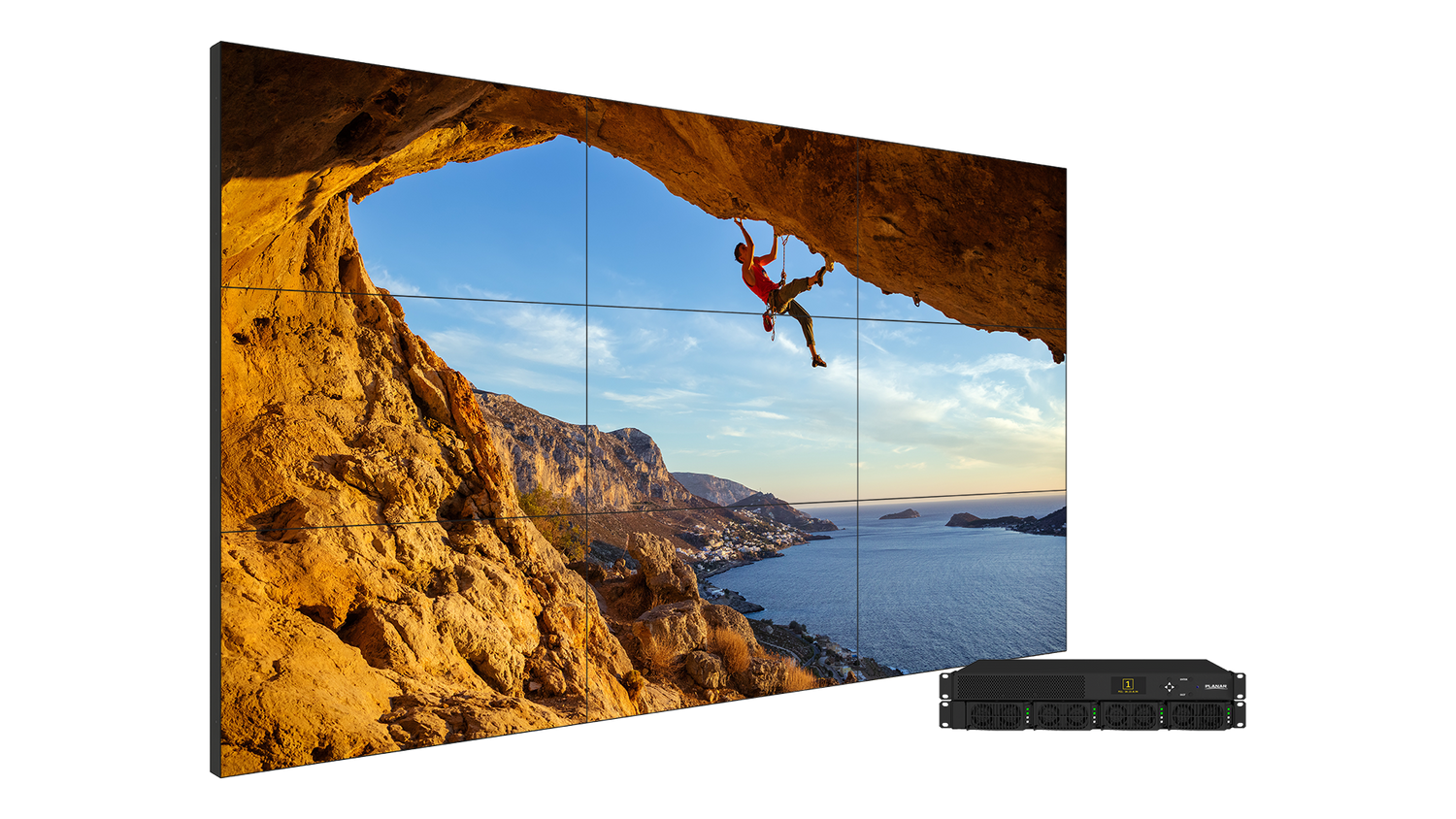

The Planar Clarity Matrix G3 LX46U-3D is a 46-inch LCD video wall display designed for flicker-free stereoscopic 3D visualization. It combines a Full HD (1920 x 1080) panel with a 3.7mm tiled bezel and 500-nit brightness, and ships as a video wall system with one LCD module, the necessary power supply modules, standard video controller electronics and the Planar EasyAxis mount. This configuration is landscape-only and TAA compliant for government and regulated procurement.

Product Description

This LX46U-3D unit belongs to Planar's Clarity Matrix G3 LCD video wall family and is purpose-built for professional visualization environments that require a stereoscopic 3D display wall. It is well suited to applications such as simulation, geospatial visualization, design review and research, where depth perception adds analytical value. The panel delivers Full HD resolution at 500 nits, appropriate for controlled-lighting rooms, and the 3.7mm tiled bezel keeps seams narrow across adjacent displays. The integrated Planar EasyAxis Mounting System works with the platform's off-board electronics to keep installation depth shallow — roughly 3.6 inches in this product family — and to simplify alignment and serviceability. The Clarity Matrix 3D wall is engineered for 24x7 operation in demanding settings. Cat6A STP (shielded twisted pair) cabling and connectors are required for this system. This configuration is intended for landscape orientation and functions as a complete building block within a larger 3D wall. Because 3D video walls require coordinated content, controller capacity and viewing geometry, the system is best planned end to end; Creation Networks can scope a layout for a specific application. Browse the full Planar lineup on our Planar collection. Exact controller capacity, 3D content workflow and panel-level dimensions vary by configuration — contact Creation Networks to confirm.

Key Features

• Stereoscopic 3D wall — Designed for flicker-free 3D visualization in professional environments.
• 46-inch Full HD panel — 1920 x 1080 resolution per module for tiled video wall canvases.
• 3.7mm tiled bezel — Narrow seam width supports a near-continuous image across adjacent displays.
• 500-nit brightness — Suited to controlled-lighting visualization rooms.

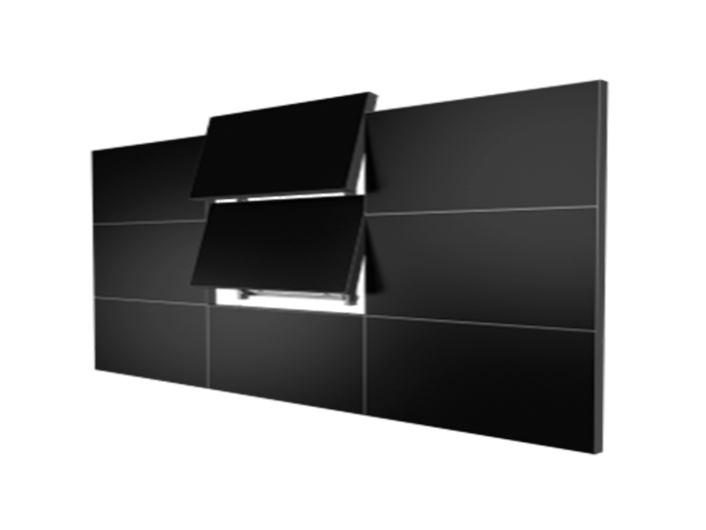

• Planar EasyAxis mount — Integrated mounting system simplifies alignment and serviceability.
• Shallow install depth — Off-board electronics support an ultra-shallow installation in this product family.
• 24x7 reliability — Built for continuous operation in demanding settings.
• Landscape orientation — This configuration is intended for landscape installation.
• TAA compliant — Supports government and regulated procurement.

Typical Applications

• Government space
• Broadcast studio
• Auditorium
• Multi-purpose room
• Commercial meeting space
• Training room

Technical Specifications

Frequently Asked Questions

What makes this a 3D video wall?
The LX46U-3D is designed for flicker-free stereoscopic 3D visualization in professional environments.

What is the bezel width?
The tiled bezel width is 3.7mm for a narrow seam across a tiled wall.

What cabling does it require?
Cat6A STP (shielded twisted pair) cables and connectors are required.

What mount is included?
The integrated Planar EasyAxis Mounting System is included.

Can it be installed in portrait?
No. This configuration is landscape only.

What is included with this unit?
It includes one LCD module, the necessary power supply modules, standard video controller electronics and the EasyAxis mount. For 3D content workflow details, contact Creation Networks to confirm.
