Planar Clarity Matrix G3 Complete LX55M-L 4x4 220" Diagonal 55" LCD video wall - 8K - 998-1883-00

Product Overview

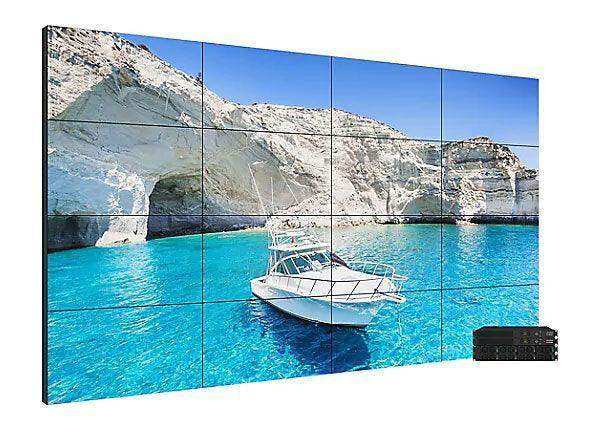

The Planar Clarity Matrix G3 Complete LX55M-L 4x4 (998-1883-00) is a pre-packaged 8K LCD video wall system spanning 220 inches diagonal, purpose-built for commercial environments that demand precision imagery, mission-critical uptime, and TAA-compliant procurement. This Planar Clarity Matrix video wall integrates 16 commercial-grade 55-inch LCD panels in a 4x4 array at 8K (7680x4320) native resolution, with a near-seamless 0.88mm tiled bezel width that minimizes visual interruption across the display surface. The complete package includes all displays, Planar EasyAxis mounting system, video controller, power supply electronics with redundancy option, display interconnect cables, and 200-foot homerun cables — enabling faster deployment compared to component-by-component procurement. As a TAA-compliant commercial indoor video wall, this system qualifies directly for U.S. government and enterprise purchasing programs.

Product Description

Each panel in the LX55M-L array delivers 1920x1080 native resolution at 500 nits of brightness, providing adequate luminance for most controlled ambient-light environments including conference rooms, boardrooms, briefing centers, and operations spaces. The display controller supports source inputs up to 4K at 60Hz including 8x HDMI 2.0 with HDCP 2.2 and 1x DisplayPort 1.2, with the wall controller managing distribution to all 16 panels via 18 RJ45 outputs and built-in 200-foot signal extension over CAT6 STP cabling. Three spare displays are included in the package for immediate field replacement of failed panels, reducing mean-time-to-repair in active installations. The fanless LCD panel design produces less than 30dBA of acoustic noise, making it appropriate for quiet meeting and training environments where display fan noise would be disruptive. Local dimming on the panels delivers a 10,000:1 contrast ratio, and Leyard WallDirector software provides centralized control, backlight monitoring, and health alerts at the individual display level.

Key Features

• 8K Native Wall Resolution (7680x4320) — Sixteen 1920x1080 panels in a 4x4 array combine for an 8K display surface, supporting extreme-detail content, data visualization, and multi-source layouts at scale.
• 0.88mm Tiled Bezel Width — Near-seamless inter-panel gap minimizes visual disruption across the display surface for continuous imagery and video content.
• 500 Nit Panel Brightness — Adequate luminance for controlled ambient-light environments including conference rooms, briefing centers, and operations facilities.
• TAA Compliant — Qualifies for U.S. federal, state, and local government purchasing programs including GSA schedules without additional certification steps.
• Fanless LCD Panels (<30dBA) — Silent panel operation is appropriate for quiet meeting, training, and conference environments where acoustic noise from displays is unacceptable.
• Local Dimming — 10,000:1 Contrast Ratio — Per-panel local dimming produces deep blacks and high dynamic range image quality.
• 200-Foot Built-In Signal Extension — Integrated CAT6 STP signal extension eliminates the need for external extenders in most installation scenarios, simplifying rack-to-wall cabling.
• Leyard WallDirector Software — Centralized display management, health monitoring, backlight reporting, and alert system included at no additional cost.
• Three Spare Displays Included — Field-replacement panels ship with the system, enabling same-day repair without waiting for parts delivery.
• Planar EasyAxis Mounting System — Precision mounting hardware engineered for the LX55M-L panel dimensions, supporting accurate panel alignment and tilt adjustment.
• Mission-Critical 24/7 Design — Display and electronics hardware rated for continuous 24x7 operation, with redundant power supply option available.
• 50,000-Hour Backlight Life — Rated half-brightness backlight life supports long deployment cycles typical in enterprise and government environments.

Typical Applications

• Boardroom and executive briefing center main display walls
• Conference room large-format video walls
• Network operations center and control room display arrays
• Government and federal facility briefing and command displays
• Training room instructional display systems
• Multi-purpose room configurable display installations

Technical Specifications

Competitor Comparison

Frequently Asked Questions

How close can viewers be to this display before the panel bezels become distracting?

The 0.88mm tiled bezel width is among the narrowest available in the LCD video wall category. At typical conference room and boardroom viewing distances (10 feet and beyond), the inter-panel gap is minimally noticeable for most content types including video and presentation graphics. For environments requiring zero bezel visibility, a direct-view LED solution should be evaluated.

Is this system TAA compliant for government procurement?

Yes. The Clarity Matrix G3 Complete LX55M-L 4x4 is TAA compliant, qualifying it for U.S. federal, state, and local government purchasing programs including GSA schedules without additional compliance documentation.

What source resolution does the controller support?

The video controller accepts input sources up to 4K (3840x2160) at 60Hz. The 8x HDMI 2.0 inputs support HDCP 2.2 for secure content. The wall itself renders at 8K (7680x4320) native resolution by combining the 16 individual panel outputs.

What spare parts are included in the package?

Three complete spare display panels are included. This allows facilities teams to replace a failed panel immediately on-site without placing a parts order and waiting for delivery, which is critical for environments requiring high display uptime.

What is the acoustic profile of this system?

The LCD panels are fanless and produce less than 30dBA of acoustic noise. The video controller produces approximately 45dBA and the rack power supply less than 40dBA at 25°C. In most installations, the controller and power supply are located in a remote equipment rack, keeping the display area quiet.

What warranty coverage does this system carry?

Planar provides the EverCare Lifetime Limited Warranty for North American installations, covering the display hardware for the lifetime of commercial ownership under standard operating conditions.
