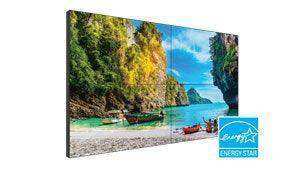

Planar Clarity Matrix G3 Complete LX55M-L 2x2 110" Diagonal 55" LCD video wall - 4K - 998-1881-01

Product Overview

The Planar Clarity Matrix G3 Complete LX55M-L 2x2 is a pre-packaged 4K LCD video wall system delivering a 110" diagonal display from four 55" commercial LCD panels in a 2x2 landscape configuration. As a complete Planar Clarity Matrix video wall solution, the package includes all four displays, wall mounts, trim, video controller, power supply electronics with redundancy option, display interconnect cables, and 200-foot homerun cables — everything required for a full installation without additional component sourcing. With a 0.88mm tiled bezel width, 500 nit brightness, and 24x7 mission-critical design, the Clarity Matrix G3 Complete is positioned for corporate lobbies, operations centers, and permanent digital signage installations that require a polished LCD video wall solution.

Product Description

The Clarity Matrix G3 Complete LX55M-L 2x2 (SKU 998-1881-01) arranges four 55" LCD panels in a 2x2 grid producing a 109.4" (2778.6mm) diagonal display wall measuring 95.5" wide by 53.8" tall. The tiled bezel width of 0.88mm is among the tightest available in commercial LCD video walls, minimizing visual interruption between panels. Each panel delivers 500 nits typical brightness, and the optional local dimming feature produces contrast ratios up to 10,000:1 when enabled.

The included video controller supports four HDMI 2.0 inputs (with HDCP 2.2) and one DisplayPort 1.2, distributing signals to the display panels over built-in 200-foot STP CAT6 video extension. Control options include IR remote, RS-232, USB, network, and Leyard WallDirector software. An off-board power supply with hot-swap redundancy option ensures continuous operation in mission-critical environments. One spare display ships with the system for rapid panel replacement. The Planar EasyAxis mounting system enables precise panel alignment during installation.

Key Features

• 2x2 LCD Video Wall — Four 55" LX55M-L panels producing a 109.4" diagonal display.
• 0.88mm Tiled Bezel Width — Near-seamless tile joins for minimal image interruption.
• 4K Native Wall Resolution — 3840x2160 across the 2x2 array; each panel is 1920x1080.
• 500 Nit Brightness — Suitable for most commercial ambient light environments.
• 10,000:1 Contrast with Local Dimming — Enhanced contrast for dark scene content.
• Complete Bundle — Displays, mounts, trim, video controller, power supply, interconnect and homerun cables all included.
• 200-Foot Built-In Video Extension — Integrated CAT6 extension for flexible rack placement.
• Hot-Swap Redundant Power Option — Keeps the wall running during power supply maintenance.
• Spare Display Included — One spare 55" panel ships with the system.
• Leyard WallDirector Software — Full-featured software control included.
• 24x7 Mission-Critical Design — Rated for continuous operation in demanding environments.
• Planar EasyAxis Mount — Precise alignment system for professional-grade installation.

Typical Applications

• Corporate lobby and executive reception area video walls
• Network operations centers (NOC) and security operations centers (SOC)
• Retail digital signage and promotional display walls
• Command centers and emergency management facilities
• Hotel lobby and hospitality venue feature displays
• Education and university common area information displays

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does the Clarity Matrix G3 Complete include everything needed for installation?

Yes. The package includes four LX55M-L displays, wall mounts, trim, video controller, power supply, display interconnect cables, and 200-foot homerun cables. A spare display is also included.

What is the difference between the 4K wall resolution and the Full HD panel resolution?

Each individual 55" panel runs at 1920x1080. When four panels are arranged in a 2x2 grid, the combined wall resolution becomes 3840x2160 (4K), allowing a single 4K source signal to span the entire array without scaling.

How does the 0.88mm bezel compare to other LCD video walls?

At 0.88mm, the Clarity Matrix G3 bezel is one of the narrowest available in commercial LCD video walls, significantly tighter than most competing products which typically range from 1.7mm to 5mm.

Is the redundant power supply included or optional?

The redundant power supply is an available option, not included by default. Contact Creation Networks to add redundant power to your order.

What control software is included?

Leyard WallDirector software is included in the package, providing full video wall control, source management, and scheduling capabilities.

Is this system suitable for 24/7 operation?

Yes. The Clarity Matrix G3 Complete is specifically designed for mission-critical 24x7 operation, with commercial-grade panels, optional redundant power, and hot-swap capability.
