Planar Clarity Matrix Digital Signage Display Planar LX55HDX-V 997-8696-00
Planar Clarity Matrix Digital Signage Display Planar LX55HDX-V 997-8696-00 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Planar Clarity Matrix Digital Signage Display Planar LX55HDX-V 997...
Product Overview

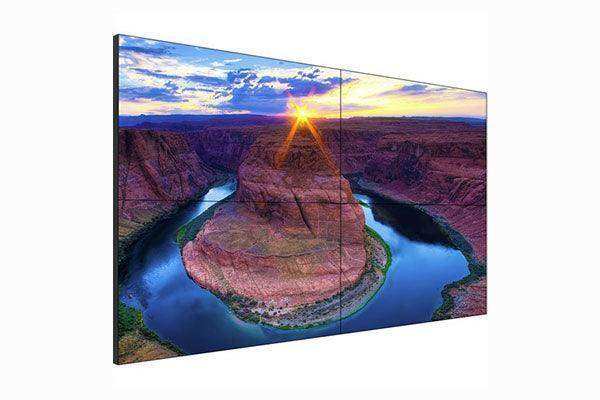

The Planar LX55HDX-V (997-8696-00) is a 55-inch Clarity Matrix G2 LCD video wall display configured for VESA mounting. Rated at 500 nit brightness with 1920x1080 Full HD resolution, the LX55HDX-V is the VESA-mount entry in Planar's 55-inch LX family — designed for digital signage, command and control, and tiled video wall applications where integrators require flexible third-party or custom mount compatibility rather than Planar's proprietary EasyAxis landscape system.
Product Description
The LX55HDX-V sits within Planar's G2 LX55 lineup as the VESA-compatible variant for 55-inch video wall panel deployments. At 500 nit brightness, it is calibrated for environments with controlled ambient light — making it appropriate for dedicated control rooms, NOC spaces, and indoor digital signage walls where ambient illumination is managed. The -V suffix indicates VESA mount compatibility rather than the EasyAxis landscape system, giving integrators the freedom to specify third-party mounts, portrait orientation hardware, or custom fabricated support structures.
The LX55HDX-V uses LED backlight technology for uniform luminance across the 55-inch surface, with 1080p scan format and Full HD resolution. The panel integrates with the Planar and Leyard content management and processing ecosystem. For 46-inch VESA-mount panels at 500 nit, see the LX46 family. For 55-inch panels at 500 nit with EasyAxis landscape mount, see the LX55HDU-L-100. For 800 nit VESA-mount panels at 46 inches, see the MX46HDX-V.
Key Features
- 55-inch Full HD (1920x1080) LCD panel rated at 500 nit for controlled ambient light environments
- Clarity Matrix G2 architecture — field-proven video wall platform
- VESA mounting compatible — portrait, custom-angle, and third-party mount capable
- LED backlight for luminance uniformity and extended panel life
- 1080p Full HD scan format
- Suitable for digital signage, tiled video walls, and command and control applications
- Compatible with Planar and Leyard video wall processing and management platforms
- Compact depth profile for low wall protrusion
- Multi-panel tiling capable for large-format video wall arrays
- Available in 46" and 55" sizes within the Clarity Matrix LX family
Typical Applications
- Indoor digital signage walls in corporate, retail, and hospitality environments
- Command and control rooms with custom mounting structures
- NOC and SOC environments with controlled ambient lighting
- Portrait-orientation video wall installations
- Higher education and conference facility tiled display walls
- Government and public sector information display systems
- Broadcast monitoring walls with integrator-specified mount hardware
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 997-8696-00 |
| Screen Size | 55 inches |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 500 nit |
| Architecture | Clarity Matrix G2 |
| Mounting | VESA compatible |
| Backlight | LED |
| Scan Format | 1080p |
| Display Type | LCD |
| Application | Video wall, digital signage |
| Video Wall Compatible | Yes |
| Variant Family | Clarity Matrix LX (see also LX55HDU-L-100, LX55HDU-V, LX55X-L) |
Competitor Comparison
| Feature | Planar LX55HDX-V (G2 VESA) | Samsung IA Series 55" | LG LSCB55 Series | NEC UN552 Series |
|---|---|---|---|---|
| Brightness | 500 nit | 500 nit | 500 nit | 500 nit |
| VESA Compatible | Yes | Yes | Yes | Yes |
| Clarity Matrix Platform | Yes (G2) | No | No | No |
| Portrait Capable | Yes | Yes | Yes | Yes |
| Upgrade to 800 nit | See MX46HDX-V | Separate SKU | Separate SKU | Separate SKU |
| ERO Glass Option | See LX55U-L-ERO | No | No | No |
Frequently Asked Questions
- What makes the LX55HDX-V different from the LX55HDU-V?
- Both are 55-inch G2 VESA-mount panels at 500 nit. The LX55HDX-V (997-8696-00) is an earlier SKU within the LX55 VESA family. The LX55HDU-V (997-9139-00) is the updated variant with confirmed 4x HDMI inputs, RS-232 serial control, and 3,500:1 dynamic contrast ratio specifications. If specific connectivity or contrast specs are critical to your integration, the LX55HDU-V specification sheet provides the more complete data set. Contact Creation Networks to confirm the specific feature set of each SKU before ordering.
- Is this panel rated for 24/7 operation?
- The LX55HDX-V is a Clarity Matrix commercial video wall panel designed for extended-hours operation. Confirm the specific operation rating with Creation Networks or the Planar LX55HDX-V specification sheet, as operation ratings can vary by SKU generation.
- Can this panel be installed in portrait orientation?
- Yes. The VESA mount compatibility supports portrait installation using any compatible third-party portrait mount hardware. Configure display rotation via OSD settings or RS-232/HDMI CEC commands as needed.
- What is the upgrade path if I need 800 nit brightness?
- For 800 nit VESA-mount panels, the correct upgrade is the MX46HDX-V (997-8996-00) at 46 inches. The 55-inch LX platform at 800 nit is not available in this product line — 800 nit 55-inch configurations are addressed by other Planar display families. Contact Creation Networks to review options for your specific brightness requirement and screen size.
- What processing and management software is compatible?
- The LX55HDX-V is compatible with Planar and Leyard video wall processing controllers. Leyard WallDirector software provides centralized configuration and health monitoring. Third-party processors supporting standard HDMI or other video interfaces are also compatible.
- How does the LX55HDX-V differ from the G3 LX55X-L?
- The LX55X-L (998-0139-00) is a G3 architecture panel with HDMI 2.0, DisplayPort 1.2, enhanced Big Picture Plus processing, n+1 redundant RPS, and updated off-board electronics — plus the EasyAxis landscape mount. The LX55HDX-V is a G2 VESA-mount panel without on-board advanced processing. Choose the LX55X-L for G3 capabilities; choose the LX55HDX-V for G2 budget-tier VESA-mount flexibility.
