Planar Chameleon 3.9 Double-Sided LED Display

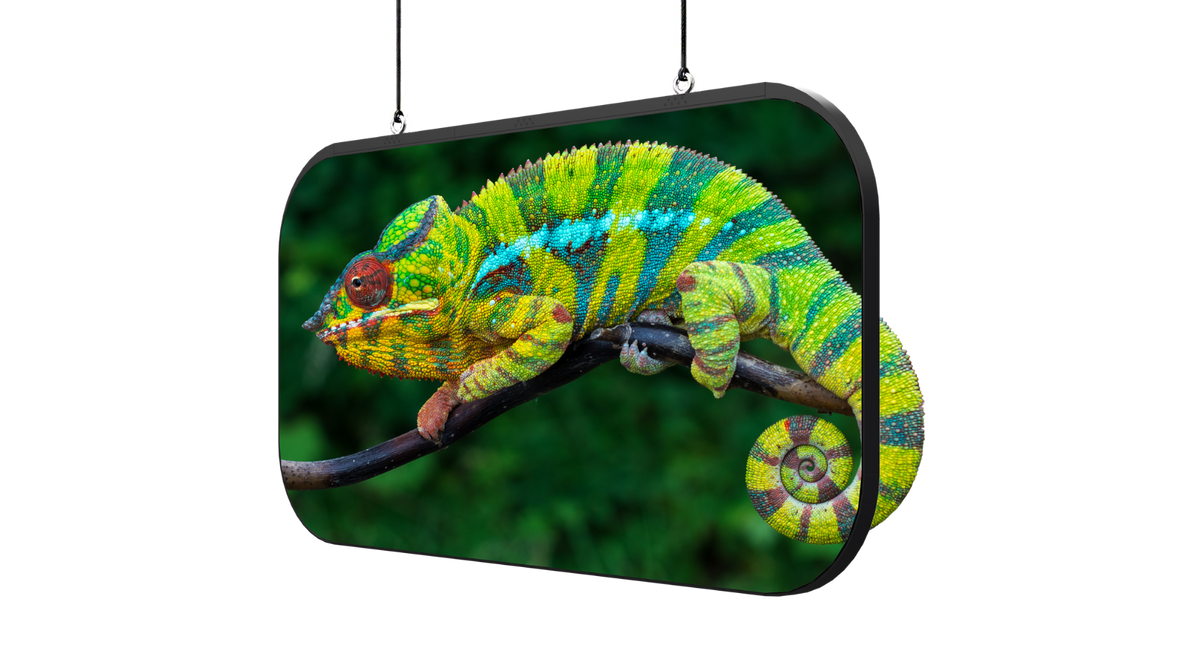

The Planar® Chameleon™ 3.9 is an ultra-slim, under 2-inch (45mm) deep, double-sided LED display with a 3.91mm pixel pitch on a 500 × 500mm cabinet, with optional rounded corners. An optional High Brightness model delivers up to 3,000 nits for brighter indoor environments.
Independently adjustable brightness and pixel pitch let each side run the same or different content, synchronized or independent. Lightweight, front-serviceable cabinets and flexible hanging or stacking configurations simplify installation for architectural and digital signage applications.
Specifications
| Spec | Detail |
|---|---|
| Pixel Pitch | 3.91mm |
| LED Type | SMD |
| Brightness Max | Standard: 800 nits · High Bright: 3,000 nits |
| Contrast Ratio | Standard: 8,000:1 · High Bright: 30,000:1 |
| Cabinet Resolution (W×H) | 128 × 128 (each side) |
| Cabinet Size | 500 × 500 × 45mm (19.69 × 19.69 × 1.77in) |
| Cabinet Diagonal | 707.11mm (27.85in) |
| Cabinet Weight | 8kg (17.64lbs) · 32kg/m² (70.55lbs/m²) |
| Module Configuration (W×H) | 2 × 2 |
| Module Size (W×H) | 250 × 250mm (9.84 × 9.84in) |
| Module Resolution (W×H) | 64 × 64 |
| Color Temperature | 3,000–10,000K |
| LED Refresh Rate | Standard: 3,840Hz · High Bright: 7,680Hz |
| Scan Rate | 16 |
| Viewing Angle | ≥160° horizontal · ≥140° vertical |
| Frame Rate | 50/60Hz |
| Power Consumption, Max | 280W/cabinet |
| Line Voltage | 100–240V AC, 50/60Hz |
| Controller Compatibility | ColorLight |
| Front Access Install/Service | Yes |
| Acoustic Noise | ≤30 dBA |
| Operating Temp / Humidity | 0° to 40°C (32° to 104°F) · 80% RH max non-condensing |
| Storage Temp / Humidity | -20°C to 60°C (-4°F to 140°F) · 85% RH max non-condensing |
Product Highlights
- Ultra-Slim, Lightweight Design — Under 2 inches (45mm) deep for a sleek, space-saving design that blends into virtually any environment. Lightweight cabinets simplify handling and installation.
- Rounded or 90° Corner Designs — Choose rounded or 90-degree corner cabinets to complement surrounding architecture or make a bold visual statement.
- Finished & Protective Trim — A polished, finished appearance that protects display edges from everyday wear while enhancing durability.
- High Brightness Models — Up to 3,000 nits for brighter indoor environments, expanding installation possibilities while maintaining image quality.
- Suspended Installations — Cabinet architecture supports hanging configurations for suspended displays that maximize visibility with a clean, architectural appearance.
- Free-Standing Installations — Cabinet design supports stacking configurations for free-standing displays with flexible content positioning.
Specifications sourced from Planar's official Chameleon Series brochure (9/2026). Pricing is project-specific — contact Creation Networks for a configuration and quote: 888-230-3661.
