Planar Chameleon 2.6 Double-Sided LED Display
Product Overview

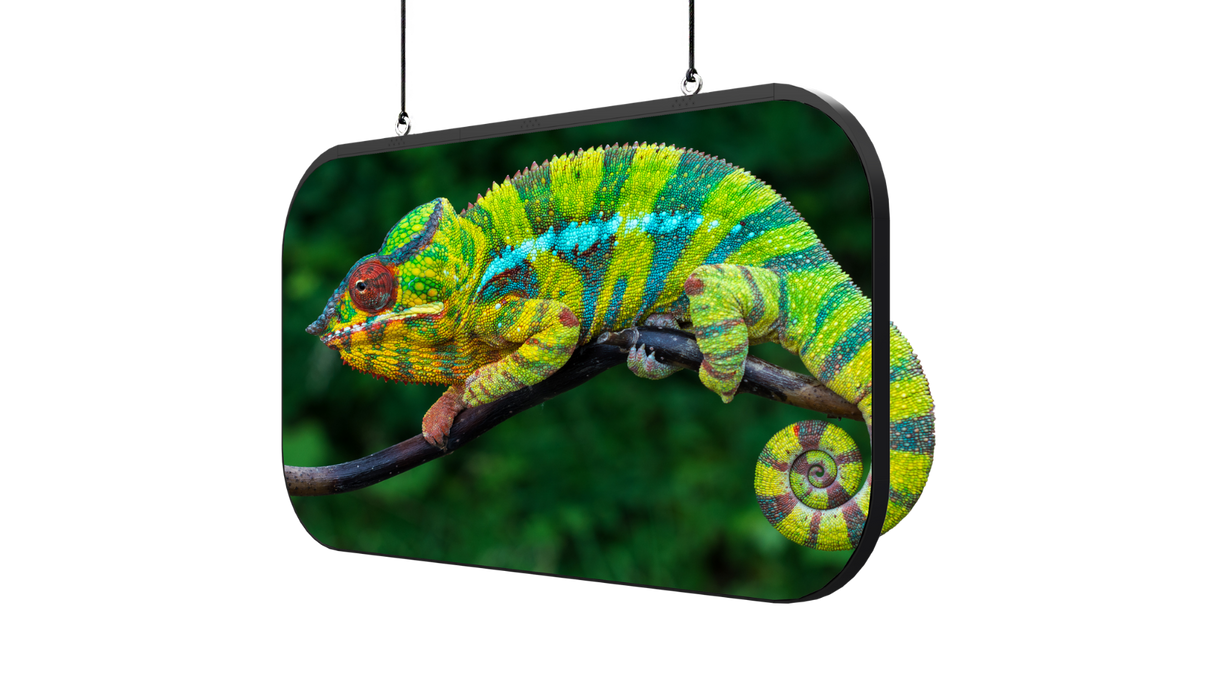

The Planar® Chameleon™ 2.6 is an ultra-slim, double-sided LED display built for architectural and digital signage installations that need to face two directions at once. At a 2.60mm pixel pitch on a 500 × 500mm cabinet, it holds close-viewing clarity while staying under 2 inches (45mm) deep. The standard build (part 998-5108-00) covers typical indoor brightness, and an optional High Bright build (998-5113-00) pushes to 3,000 nits for higher ambient light spaces.
Product Description
Each side of the Chameleon 2.6 cabinet runs its own ColorLight-driven signal path, so the two faces can show synchronized content, independent content, or a mix of both — a single display becomes two separate audience experiences without doubling the footprint. The 500 × 500mm cabinet ships with an optional rounded-corner trim alongside the standard 90° corner, giving designers a way to match or contrast surrounding architecture. At 8kg (17.64lbs) per cabinet, the Chameleon 2.6 is light enough for two-person handling on site, and front access to every module means service technicians never need to work from behind the display once it's hung or stacked. Both the standard (998-5108-00) and High Bright (998-5113-00) builds share the same 500 × 500 × 45mm footprint and 2×2 module configuration, so a project can mix brightness tiers within one array without changing cabinet spacing. Power draw tops out at 280W per cabinet on 100-240V AC input, and Planar rates the LED refresh at 3,840Hz standard and 7,680Hz on High Bright cabinets, which keeps the panel clean on camera for broadcast and video-capture use. Installation supports both suspended (hanging) and free-standing (stacked) configurations, which matters for double-sided displays since they're frequently used as room dividers or freestanding wayfinding elements rather than wall-mounted panels. For a single-sided architectural build in the same control ecosystem, see the Planar Mosaic 1.9.
Specifications
| Spec | Detail |
|---|---|
| Part Number (Standard / High Bright) | 998-5108-00 · 998-5113-00 |
| Pixel Pitch | 2.60mm |
| LED Type | SMD |
| Brightness Max | Standard: 800 nits · High Bright: 3,000 nits |
| Contrast Ratio | Standard: 8,000:1 · High Bright: 30,000:1 |
| Cabinet Resolution (W×H) | 192 × 192 (each side) |
| Cabinet Size | 500 × 500 × 45mm (19.69 × 19.69 × 1.77in) |
| Cabinet Diagonal | 707.11mm (27.85in) |
| Cabinet Weight | 8kg (17.64lbs) · 32kg/m² (70.55lbs/m²) |
| Module Configuration (W×H) | 2 × 2 |
| Module Size (W×H) | 250 × 250mm (9.84 × 9.84in) |
| Module Resolution (W×H) | 96 × 96 |
| Color Temperature | 3,000–10,000K |
| LED Refresh Rate | Standard: 3,840Hz · High Bright: 7,680Hz |
| Scan Rate | 24 |
| Viewing Angle | ≥160° horizontal · ≥140° vertical |
| Frame Rate | 50/60Hz |
| Power Consumption, Max | 280W/cabinet |
| Line Voltage | 100–240V AC, 50/60Hz |
| Controller Compatibility | ColorLight |
| Front Access Install/Service | Yes |
| Acoustic Noise | ≤30 dBA |
| Operating Temp / Humidity | 0° to 40°C (32° to 104°F) · 80% RH max non-condensing |
| Storage Temp / Humidity | -20°C to 60°C (-4°F to 140°F) · 85% RH max non-condensing |
Key Features
- Ultra-Slim, Lightweight Design — Under 2 inches (45mm) deep for a sleek, space-saving design that blends into virtually any environment. Lightweight cabinets simplify handling and installation.
- Rounded or 90° Corner Designs — Choose rounded or 90-degree corner cabinets to complement surrounding architecture or make a bold visual statement.
- Finished & Protective Trim — A polished, finished appearance that protects display edges from everyday wear while enhancing durability.
- High Brightness Models — Up to 3,000 nits for brighter indoor environments, expanding installation possibilities while maintaining image quality.
- Suspended Installations — Cabinet architecture supports hanging configurations for suspended displays that maximize visibility with a clean, architectural appearance.
- Free-Standing Installations — Cabinet design supports stacking configurations for free-standing displays with flexible content positioning.
Typical Applications
- Commercial meeting space
- Multi-purpose room
- All-hands room
- House of worship
- Broadcast studio
- Auditorium
Frequently Asked Questions
Can each side of the Chameleon 2.6 show different content?
Yes. The two faces run independent signal paths and can display synchronized or completely separate content.
What controller does the Chameleon 2.6 need?
Chameleon uses a ColorLight-compatible receiving card and controller path. Creation Networks specs the matching controller as part of a full Planar system quote.
Is a High Bright model available?
Yes — part 998-5113-00 reaches up to 3,000 nits for higher ambient light spaces, versus 800 nits on the standard 998-5108-00 build.
How is the Chameleon 2.6 mounted?
Cabinets support both suspended (hanging) and free-standing (stacked) installation, since double-sided displays are often used as room dividers rather than wall-mounted panels.
Is it front-serviceable?
Yes. Every module is accessible from the front face, so no rear clearance is required once the display is hung or stacked in place.
What's the difference between the rounded and 90° corner cabinets?
Both share the same internal specifications; the corner style is a cosmetic choice to match or contrast surrounding architecture.
What's the power draw?
Up to 280W per cabinet on 100-240V AC, 50/60Hz input.
Does Creation Networks provide installation and support?
Yes. As a Planar partner, Creation Networks specs, installs, and supports Chameleon deployments nationwide — contact us for a project-specific quote and warranty terms.
Specifications sourced from Planar's official Chameleon Series brochure (9/2026) and September 1, 2026 Planar price list. Pricing is project-specific — contact Creation Networks for a configuration and quote: 888-230-3661.
