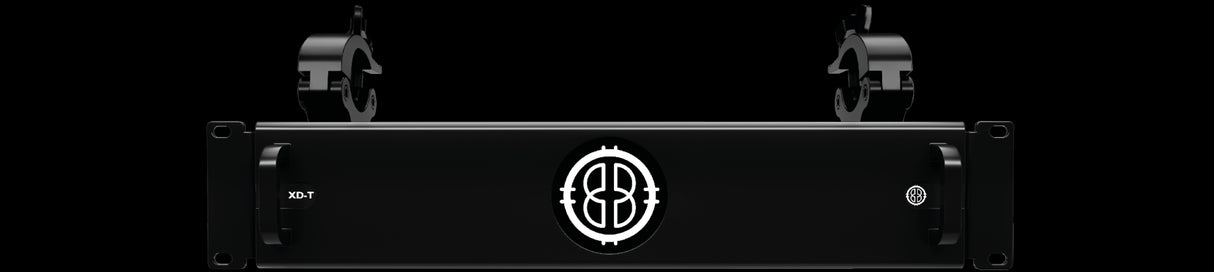

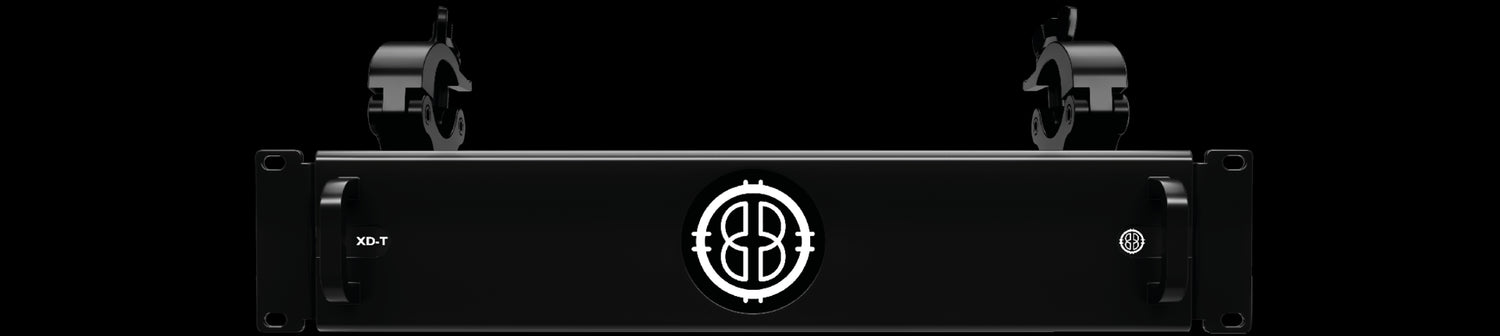

Planar Brompton Tessera XD – LED Distribution Unit
Product Overview
The Planar Brompton Tessera XD Distribution Unit is a data distribution device used in Planar LED video wall systems that pair with Brompton Technology processing. It extends signal distribution from a Brompton Tessera LED processor to connected LED cabinets, supporting structured cabling layouts in larger arrays. This unit is TAA compliant, supporting government and regulated procurement. It is intended for installations where Brompton processing is selected for color management and image performance.
Product Description
The Brompton Tessera XD Distribution Unit functions as a distribution stage between a Brompton Tessera LED processor and the LED cabinets in a Planar video wall. In Brompton-based workflows, distribution hardware helps organize and route data to cabinet groups, which simplifies cabling across larger or more complex arrays. Planar LED video wall families, including the Venue Pro Series, support Brompton processing so integrators can match the processing platform to the demands of applications such as broadcast, virtual production, and extended reality. This unit is TAA compliant, supporting procurement for federal, state, and regulated organizations. Because distribution configurations depend on the specific Brompton processor, cabinet count, and topology, exact port-level and capacity specifications should be confirmed for each deployment. For Brompton workflow planning and compatibility verification, explore the full Planar collection at Creation Networks. Our team can confirm processor pairing, cabling topology, and capacity for your project.
Key Features
- Brompton Tessera workflow — Operates within Brompton Technology LED processing systems for advanced color and image management.
- Signal distribution — Routes data from the Tessera processor to connected LED cabinet groups.
- Structured cabling support — Helps organize data routing across larger and more complex LED arrays.
- Planar LED compatibility — Used with Planar LED video wall families that support Brompton processing.
- TAA compliant — Supports government, federal, and regulated procurement requirements.
- Integration-focused design — Intended for professional AV integrators building processor-driven LED systems.
Typical Applications
- Broadcast studio LED video walls
- Virtual production and extended reality stages
- Live events and rental/staging LED systems
- High-end corporate and experiential installations
- Color-critical visualization environments
- Large or complex LED arrays requiring structured distribution
Technical Specifications
| Product | Brompton Tessera XD Distribution Unit |
| Function | Data distribution for Brompton Tessera LED processing |
| Ecosystem | Brompton Technology processing platform |
| Compatibility | Planar LED video walls supporting Brompton processing |
| Compliance | TAA compliant |
| SKU | 933-1640-00 |
Port count, data capacity, and supported topologies depend on the Brompton processor and array; contact Creation Networks to confirm.
Frequently Asked Questions
What does the Tessera XD Distribution Unit do? It distributes data from a Brompton Tessera LED processor to connected LED cabinet groups within a Planar video wall.
Which processing platform does it work with? It is part of the Brompton Technology Tessera processing workflow used with compatible Planar LED video walls.
Is it TAA compliant? Yes. The unit is TAA compliant for government and regulated procurement.
What applications is it used for? It is typically used in broadcast, virtual production, live events, and color-critical LED installations.
How many cabinets can it support? Capacity depends on the Brompton processor and array topology; contact Creation Networks to confirm for your design.
What ports and connectors does SKU 933-1640-00 include? Port and connector details vary by configuration; contact Creation Networks to confirm the exact specification.
