Planar- 997-8796-00 QE7550-T 75" 3840x2160 Interactive 4K LCD Display 24/7

Product Overview

The Planar QE7550-T is a 75-inch 4K interactive LCD display engineered for 24/7 commercial operation in demanding collaboration and digital signage environments. With 3840x2160 resolution, 20-point simultaneous touch capability, and a TAA-compliant build, this display delivers enterprise-grade performance for conference rooms, education spaces, and public venues. It supports native 4K at 60Hz via HDMI 2.0 and DisplayPort 1.2 with HDCP 2.2 compliance, ensuring compatibility with the latest 4K signal sources. The QE7550-T is part of Planar's QE Series, purpose-built for mission-critical AV installations requiring superior reliability and rich interactivity.

Product Description

The Planar QE7550-T 75-inch interactive 4K LCD display combines commercial-grade construction with advanced multi-touch interactivity for round-the-clock deployments. Its Direct LED backlighting delivers 500 nits of brightness with 10-bit color depth across a 72% NTSC color gamut, producing vivid, accurate imagery for collaborative workflows and high-visibility signage. The 20-point projected capacitive touchscreen responds with exceptional accuracy, making it suitable for annotation, whiteboarding, and interactive wayfinding applications. The display supports quad-source viewing, enabling users to monitor up to four independent signal sources simultaneously with per-zone picture quality control. Remote monitoring via email alerts notifies administrators of unexpected system events, reducing response time and minimizing downtime in 24/7 environments. An Intel OPS expansion slot accommodates compute modules for standalone signage playback or interactive applications without an external PC. Fanless operation keeps the display whisper-quiet, which is critical for boardrooms and educational classrooms. TAA compliance makes the QE7550-T suitable for U.S. federal procurement and GSA contract purchases. SKU 997-8796-00 includes a 3-year limited warranty.

Key Features

• 75-inch 4K UHD (3840x2160) interactive LCD display
• 20-point simultaneous projected capacitive touch
• 500-nit Direct LED backlighting with 10-bit color processing
• Native 4K at 60Hz via HDMI 2.0 and DisplayPort 1.2
• HDCP 2.2 compliant for protected 4K content
• Quad-source simultaneous viewing with per-zone image control
• Remote monitoring with email alert notifications
• Intel OPS expansion slot for embedded compute
• Fanless, whisper-quiet operation
• TAA compliant for federal procurement

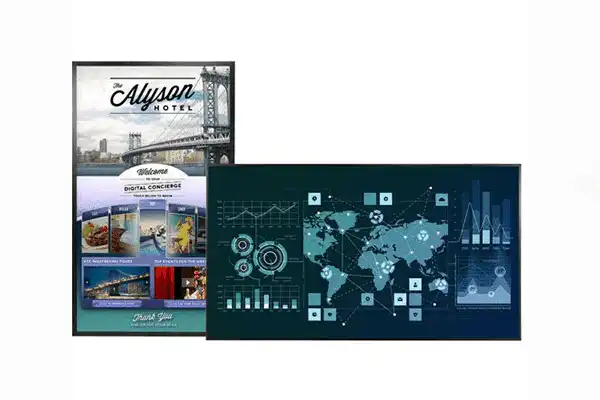

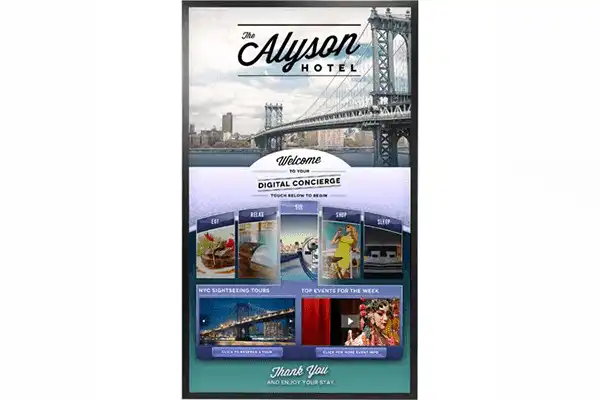

• Landscape and portrait orientation support
• 3-year limited warranty | SKU: 997-8796-00

Typical Applications

• Corporate conference rooms and executive boardrooms
• University lecture halls and K-12 classroom interactive learning
• Government and federal agency meeting spaces (TAA required)
• Hospital and healthcare facility digital signage and wayfinding
• Retail flagship stores and interactive product showcases
• Transportation hubs: airport gate information and wayfinding kiosks
• Command and operations centers requiring 24/7 interactive monitoring

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Is the Planar QE7550-T suitable for 24/7 continuous operation?

Yes. The QE7550-T is rated for 24/7 continuous commercial operation, making it appropriate for digital signage, control rooms, and any application requiring always-on reliability.

What touch technology does the QE7550-T use?

It uses projected capacitive (PCAP) touch technology supporting 20 simultaneous touch points, providing fast and accurate response for collaborative and interactive applications.

Does the QE7550-T qualify for federal government procurement?

Yes. The QE7550-T is TAA (Trade Agreements Act) compliant, making it eligible for GSA Schedule purchases and U.S. federal government procurement contracts.

Can I connect a PC or media player via the OPS slot?

Yes. The integrated Intel OPS (Open Pluggable Specification) slot accepts compatible OPS compute modules, enabling standalone operation without an external PC or media player.

How many sources can I view simultaneously?

The QE7550-T supports quad-source viewing, displaying up to four independent video sources simultaneously with individual per-zone picture quality adjustments.

What connectivity is included in the box?

The QE7550-T ships with a power cord, HDMI cable, IR cable, USB A-to-B cable, remote control, and cable clamps.
