Planar 55IN LCD Video Wall System Full HD, VESA Mount 1920 x 1080 Resolution - 998-1539-01

Product Overview

The Planar 998-1539-01 is a 55-inch Full HD LCD video wall display using a VESA mount pattern, offering integrators the flexibility to pair this Clarity Matrix panel with third-party or custom mounting solutions rather than the proprietary Clarity Matrix EasyAxis system. Delivering 1920x1080 resolution at 500 nits with a 10,000:1 dynamic contrast ratio, this panel (SKU 998-1539-01) shares its core LCD technology with the landscape-only 998-1495-00 from the same family, but the VESA mount configuration makes it the right choice when site conditions, existing mount infrastructure, or installation preference favor standard VESA attachment points over the factory-integrated landscape mount. The panel is video wall compatible and designed for 24/7 commercial-grade operation.

Product Description

The 998-1539-01 gives integrators and facility managers the ability to mount this Clarity Matrix G3-family 55-inch panel on any VESA-compatible mounting system, enabling use with pole mounts, ceiling drops, column mounts, or custom fabricated structures that accept standard VESA patterns. This stands in contrast to the landscape-only 998-1495-00, which ships with the integrated Clarity Matrix mounting hardware designed for panel-to-panel array alignment using EasyAxis cams. For installations where the mounting infrastructure is already in place, or where a non-standard array geometry requires a custom mount approach, the VESA variant is the appropriate selection. The panel delivers the same 500-nit, 10,000:1 dynamic contrast ratio performance as the landscape family member, with LED backlighting and Full HD 1080p resolution. Connectivity includes four HDMI inputs, one DisplayPort, Ethernet for network management, USB, and serial control, providing the full complement of professional AV interfaces for integration with matrix switches, AV over IP systems, and RS-232 control processors. The panel operates on 120V and 230V AC, supporting universal deployment. The display is certified for 24/7 continuous operation, confirming its suitability for mission-critical monitoring environments where uptime cannot be interrupted. Bezel width is 34.6 mil, consistent with the Clarity Matrix G3 family standard for tiled array seam performance.

Key Features

• 55-inch Full HD 1080p LCD with VESA mount pattern
• 500 nits brightness, 10,000:1 dynamic contrast ratio
• LED backlighting for consistent illumination
• VESA mount compatible with third-party and custom mount systems
• 4 HDMI inputs plus 1 DisplayPort connection
• Ethernet, USB, and serial control interfaces
• 34.6-mil tiled bezel width for video wall arrays
• 24/7 continuous operation rated
• Universal 120V/230V AC input
• Video wall compatible for multi-panel tiled configurations

Typical Applications

• Installations with existing VESA-compatible mounting infrastructure
• Custom fabricated mount structures for non-standard array geometries
• Pole-mount and ceiling-drop video wall configurations
• Retrofit projects replacing existing displays on VESA mounts

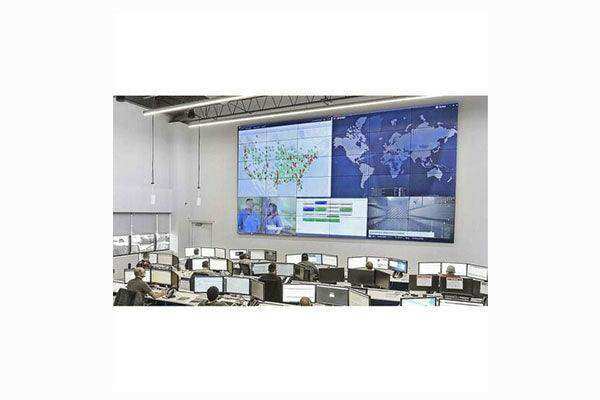

• Operations centers and monitoring rooms with custom millwork integration
• Corporate lobbies and reception areas with architectural mount solutions

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is the difference between the 998-1539-01 (VESA) and the 998-1495-00 (landscape-only)?

Both panels share the same 55-inch, 500-nit, Full HD LCD technology from the Clarity Matrix family. The 998-1495-00 ships configured for the Clarity Matrix EasyAxis integrated mounting system, designed for landscape panel-to-panel arrays with precision alignment hardware included. The 998-1539-01 uses standard VESA mount points, giving integrators the freedom to use any compatible third-party mount, custom fabrication, or existing mount infrastructure. If you have existing VESA mounts or need custom mounting flexibility, choose the 998-1539-01. If you are building a new Clarity Matrix array with factory alignment tools, the 998-1495-00 is the appropriate selection.

What VESA mount pattern does this display use?

Confirm the specific VESA pattern (e.g., 400x400, 600x400) with Creation Networks or Planar's published datasheet for the 998-1539-01 before ordering mount hardware. VESA patterns vary by panel size and model.

Can I use this display in portrait orientation with a VESA mount?

Yes. One advantage of the VESA mount configuration is that compatible VESA mounts are available for both landscape and portrait orientation, giving this model greater orientation flexibility than the landscape-only 998-1495-00. Confirm that your selected VESA mount supports the desired orientation and panel weight.

Is this display suitable for permanent video wall arrays?

Yes. The 34.6-mil tiled bezel and video wall compatibility designation confirm it is designed for tiled multi-panel arrays. The VESA mount approach requires the integrator to ensure precise panel-to-panel alignment through mount selection and installation technique, as the EasyAxis alignment cams present in the landscape-only model are not included.

Does the DisplayPort connection support daisy-chaining?

DisplayPort daisy-chaining capability depends on the specific port configuration and graphics source. Confirm daisy-chain support with the video processing system specification before designing a daisy-chain signal distribution topology.
