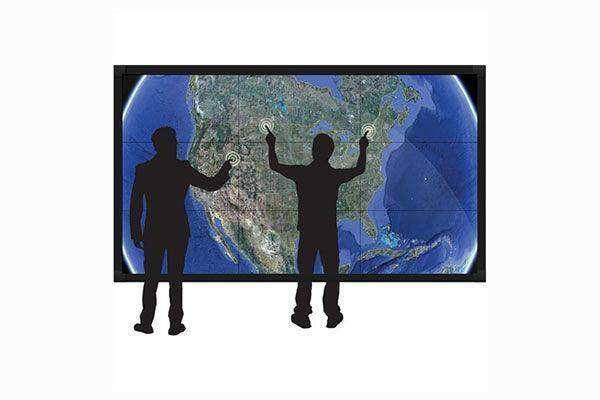

Planar 55" LX55HDU-L-100 Clarity Matrix w/G2 Architecture LX55HDU FHD VWS - 997-9140-00

Product Overview

The Planar LX55HDU-L-100 is a 55-inch Clarity Matrix G2 landscape LCD video wall display delivering Full HD 1920x1080 resolution at 500 nit brightness. SKU 997-9140-00 ships as a single-panel unit designed for tiled landscape video wall arrays, featuring Planar's EasyAxis Mounting System for precise alignment and an ultra-thin 3.6-inch installed depth. Optimized for controlled ambient light environments requiring cost-effective, high-quality video wall performance.

Product Description

The LX55HDU-L-100 is Planar's second-generation 55-inch landscape video wall panel, offering proven Clarity Matrix G2 architecture for integrators and end users who need reliable multi-panel performance without the premium of G3. The unit ships with a 3.7mm tiled bezel gap and LED backlighting, producing uniform, color-accurate imagery across large tiled arrays. The EasyAxis six-axis adjustment system enables fine-tuned panel-to-panel alignment post-installation, critical for maintaining seamless visual continuity across multi-panel walls.

The LX55HDU-L-100 supports front-service mode, allowing a single technician to access and replace a panel without removing surrounding units — a critical advantage for large-format arrays in 24/7 installations. Input connectivity includes HDMI and DisplayPort interfaces, and the panel is compatible with the full range of Planar video wall content management and processing solutions. The -100 suffix denotes this is the landscape-mount, non-ERO variant of the LX55HDU family.

Key Features

• 55-inch Full HD (1920x1080) LCD panel rated at 500 nit brightness
• Clarity Matrix G2 architecture — field-proven video wall platform
• 3.7mm tiled bezel width for near-seamless multi-panel display walls
• Landscape orientation — optimized for standard horizontal video wall builds
• Planar EasyAxis Mounting System with six-axis fine-adjustment for perfect alignment
• Installed depth of 3.6" (93mm) — minimal protrusion from wall surface
• LED backlight technology for color uniformity and longevity
• Front-serviceable: panel replacement without disturbing adjacent units
• Compatible with Planar Leyard processing and content management solutions
• Suitable for 24/7 extended-operation environments

Typical Applications

• Corporate lobby and reception video walls in landscape configurations
• Command and control rooms requiring reliable 24/7 multi-panel displays
• Retail flagship stores with large-format landscape content walls
• Higher education lecture halls and collaborative visualization spaces
• Government operations centers with controlled ambient lighting
• Broadcast production control rooms with multi-source monitoring requirements
• Healthcare facility wayfinding and information display walls

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is the difference between the LX55HDU-L-100 and the LX55HDU-V?

Both are G2 500 nit 55-inch panels. The LX55HDU-L-100 (997-9140-00) ships with the EasyAxis landscape mounting hardware installed, ready for tiled landscape video wall integration. The LX55HDU-V (997-9139-00) ships with VESA mounting compatibility for installations requiring third-party mounts or non-standard angles, giving integrators greater flexibility in mount selection.

Is this a G2 or G3 product?

The LX55HDU-L-100 is a Clarity Matrix G2 product. It uses the proven second-generation Planar platform. For G3 architecture with upgraded processing, HDMI 2.0, and enhanced off-board electronics, see the LX55X-L (998-0139-00).

Does this panel include ERO glass?

No. The LX55HDU-L-100 ships with standard glass. It is not ERO-equipped. For ERO (Extended Ruggedness and Optics) with optically-bonded glass for public-space or interactive deployments, see the LX55U-L-ERO (998-0230-00).

Can the LX55HDU-L-100 be used in portrait mode?

The -L-100 suffix indicates this unit is configured for landscape orientation with the EasyAxis landscape mount. Portrait installations should use the LX55HDU-V variant with VESA mounting hardware that accommodates custom rotation.

What content management software is compatible?

The LX55HDU-L-100 is compatible with Leyard WallDirector and the broader range of Planar and Leyard video wall controllers and processors. Third-party controllers that support HDMI and DisplayPort inputs are also compatible.

What warranty does this product carry?

Planar video wall panels typically carry a 3-year limited warranty. Contact Creation Networks for warranty confirmation and extended service contract availability for mission-critical installations.
