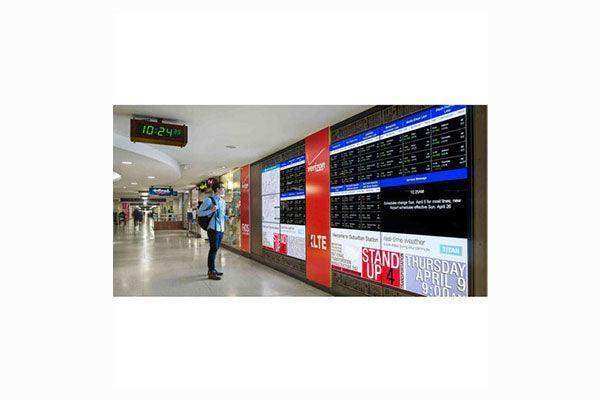

Planar 55" 1920x1080 Clarity Matrix G3 MX55M, 700 Nit Landscape Video Wall - 998-1540-00

Product Overview

The Planar Clarity Matrix G3 MX55M 700 Nit is a 55-inch Full HD LCD video wall panel engineered for high ambient light mission-critical deployments, delivering 700 nits of brightness and an ultra-narrow 0.88mm tiled bezel width. It is part of the Clarity Matrix G3 platform, which combines off-board processing, Planar Big Picture Plus video scaling, and WallDirector management software in a design optimized for 24/7 continuous operation. The EasyAxis Mounting System ensures precise panel alignment and an installed depth of only 3.6 inches. This panel is the non-ERO landscape configuration, suited for standard video wall environments where protective glass is not required.

Product Description

The Planar Clarity Matrix G3 video wall display MX55M delivers 700-nit brightness across a 1920x1080 LCD panel with a 0.88mm tiled bezel — the narrowest available in the G3 lineup — enabling large-format video walls that present content across multiple panels with minimal visual interruption. Planar Big Picture Plus processing supports source scaling across the entire wall or isolated sections, handling multiple 4K at 60Hz inputs including HDMI 2.0 and DisplayPort 1.2. The off-board Video Controller architecture separates the electronics rack from the display panels, improving thermal performance and allowing electronics service without disturbing the mounted wall structure. Featuring 4K quadview, operators can display up to four independent sources within a single display zone, useful in monitoring and operations environments. The panel's 10,000:1 dynamic contrast ratio and LED backlight technology produce well-differentiated image content at sustained brightness. Rated for 24/7 operation, this panel meets the requirements of control room, dispatch, and enterprise command applications.

Key Features

• 55-inch Full HD LCD panel, 1920x1080 resolution
• 700 nits brightness for high ambient light environments
• 0.88mm tiled bezel width — near-seamless video wall joins
• 10,000:1 dynamic contrast ratio
• LED backlight technology
• Planar Big Picture Plus: 4K@60Hz source scaling, 4K quadview
• HDMI 2.0 and DisplayPort 1.2 inputs
• Off-board Video Controller architecture for simplified service
• Planar EasyAxis Mounting System — 3.6-inch installed depth
• WallDirector software for centralized monitoring and management
• 24/7 rated operation
• EU RoHS compliant

Typical Applications

• Network operations centers (NOCs)
• Security monitoring and surveillance control rooms
• Public safety and emergency dispatch environments
• Broadcast master control rooms
• Corporate command and situation rooms
• Military and government operations centers

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is the difference between the MX55M and the MX55M with ERO?

The MX55M 700 Nit (SKU 998-1540-00) is the standard landscape panel without ERO-LCD protective glass. The ERO version (SKU 998-1541-00) adds optically bonded glass for improved ambient light performance and impact protection. Choose ERO for public-facing or touch-enabled deployments.

How many panels can a single Video Controller drive?

The off-board Leyard Video Controller delivers up to nine 1920x1080 outputs from a single 1U chassis, enabling a full 3x3 video wall without additional controller hardware.

Does the off-board electronics design affect image quality?

No. The off-board design separates heat-generating electronics from the display panels, which improves panel thermal stability and long-term image uniformity. Image processing quality is maintained by the dedicated Video Controller unit.

Is the MX55M 700 Nit rated for 24/7 continuous use?

Yes. The Clarity Matrix G3 platform is designed for 24/7 mission-critical operation, with backlight life rated at 50,000 hours at half brightness.

What input connectivity is supported?

The panel supports four HDMI inputs and two DisplayPort inputs at the display, with controller-level support for HDMI 2.0 and DisplayPort 1.2 for 4K source connectivity.
