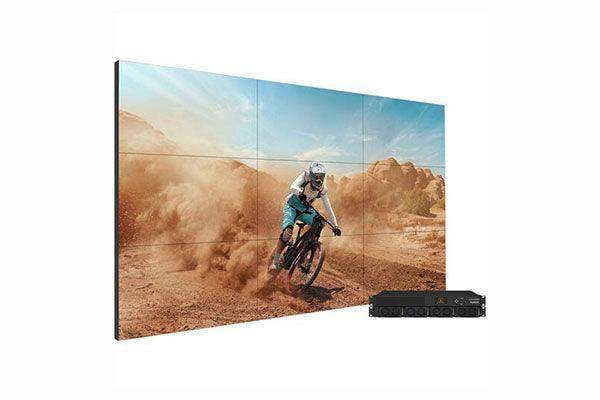

Planar 55" 1920x1080, 500 Nit Video Wall LCD, Landscape only - 998-1495-00

Product Overview

The Planar 998-1495-00 is a 55-inch Full HD LCD video wall display configured exclusively in landscape orientation, delivering 1920x1080 resolution at 500 nits for commercial and mission-critical installations. Part of the Clarity Matrix G3 LCD video wall platform, this panel is engineered for permanent landscape mounting in control rooms, operations centers, and large-format display arrays where horizontal content flow is the fixed design requirement. The landscape-only configuration distinguishes it from VESA-mount variants in the same product family, providing a purpose-built horizontal solution with integrated mounting and array alignment hardware.

Product Description

The 998-1495-00 delivers the full capability set of the Clarity Matrix G3 platform in a landscape-locked configuration, making it the right selection for integrators designing fixed horizontal arrays who want a purpose-optimized panel rather than a field-configurable multipurpose unit. Running at 500 nits with LED backlighting and a 10,000:1 dynamic contrast ratio, the panel produces punchy, well-defined imagery suitable for high-stakes monitoring environments. The 34.6-mil tiled bezel creates minimal visual interruption across the array seam, while the panel's four HDMI inputs and dual DisplayPort connections provide flexible source routing from AV matrix switches, video controllers, and direct computer sources. Ethernet connectivity enables network-based management and integration with IP-based control systems. USB is present for peripheral connection or firmware maintenance. The display operates on 120V and 230V AC, supporting both domestic and international deployments without power conversion. The Clarity Matrix G3 platform introduces WallSync with Smart Genlock for automatic synchronized video playback across displays without manual genlock configuration, a notable advantage over competitive platforms requiring manual sync setup. 24/7 operation is rated across the platform, and the off-board electronics design reduces serviceable components at the panel face.

Key Features

• 55-inch Full HD 1080p LCD, landscape-only configuration
• 500 nits brightness, 10,000:1 dynamic contrast ratio
• LED backlighting for consistent, long-life illumination
• 34.6-mil tiled bezel width for clean multi-panel seams
• 4 HDMI inputs plus 2 DisplayPort connections
• Ethernet, USB, and serial control interfaces
• Clarity Matrix G3 platform with WallSync Smart Genlock
• Off-board electronics for reduced panel depth and heat
• 24/7 continuous operation rated
• Universal 120V/230V AC input

Typical Applications

• Security and surveillance monitoring centers
• Network and IT operations centers (NOC/SOC)
• Utility and industrial control rooms
• Emergency dispatch and public safety command centers
• Corporate and government briefing rooms
• Large-format digital signage in transportation hubs

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What distinguishes the landscape-only 998-1495-00 from the VESA-mount variant (998-1539-01)?

The 998-1495-00 is designed and shipped for fixed landscape installation using the Clarity Matrix G3 mounting system with integrated alignment hardware. The 998-1539-01 uses a standard VESA mount pattern, giving the integrator more flexibility in mount choice but without the factory-integrated EasyAxis alignment system. Choose the landscape-only model when array alignment precision and the Clarity Matrix mounting ecosystem are priorities.

Does the 55-inch panel support portrait orientation if needed later?

This model is specified as landscape-only. If portrait orientation may be required in the future, the VESA-mount variant offers greater flexibility, or a purpose-built portrait model should be selected at time of purchase.

What is WallSync with Smart Genlock?

WallSync is Planar's proprietary synchronization technology in the G3 platform that automatically aligns video frame timing across all displays in the array. This prevents tearing and frame-rate drift between adjacent panels without requiring manual genlock signal setup, simplifying commissioning and ensuring visual coherence.

Can the four HDMI inputs receive different sources simultaneously?

The panel's inputs connect to the off-board electronics module. Source routing and windowing across multiple inputs is managed by the Clarity Matrix G3 video processing platform, which supports multi-source display configurations across the array.

Is this panel suitable for continuous 24/7 operation in a control room?

Yes. The Clarity Matrix G3 platform is rated for 24/7 continuous operation. The off-board electronics design reduces thermal stress on the panel itself, and redundant power supply options further support uptime requirements in mission-critical environments.
