Planar 4-Out Video Controller – HDMI to Fiber

Product Overview

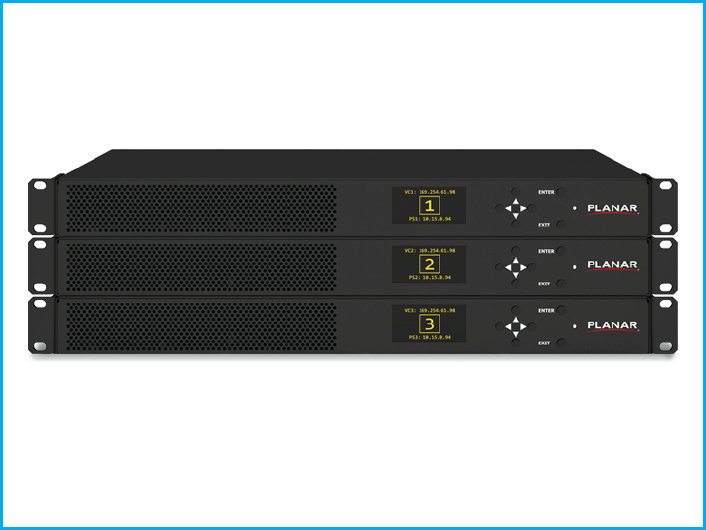

The Planar 4-Out Video Controller (L version) is a video wall controller that accepts four HDMI inputs and distributes four fiber outputs at 10Gb each. It supports HSL Loop for chained display connectivity and is TAA compliant for public-sector procurement. Fiber distribution supports long cable runs between the controller and displays, making it suited to installations where the equipment room is far from the wall. Output assignment and supported display models should be matched to the target wall.

Product Description

This Planar video controller manages sources for a video wall using fiber-based distribution, taking up to four HDMI inputs and feeding four fiber outputs that carry high-bandwidth video to compatible Planar displays. Fiber runs support significantly longer distances than copper cabling with strong noise immunity, which is valuable when the controller and source equipment are located well away from the display surface. Each of the four outputs operates at 10Gb, providing headroom for high-resolution content, and HSL Loop support enables looped connectivity for streamlined chaining within the system. The L version designation identifies this model within Planar's controller lineup; a CAT-output controller is also available for shorter standard runs. As a system component, the controller is selected based on the number of displays, the input sources required, and the distribution distance for the site. The unit is TAA compliant, supporting government and regulated procurement. To review compatible Planar video walls and the matching CAT-output controller, browse the full Planar collection at Creation Networks. Contact Creation Networks to confirm display compatibility, output mapping, and fiber design for your installation.

Key Features

• Four HDMI inputs — Accepts up to four source devices for distribution across the video wall.
• Four fiber outputs — Distributes video to compatible Planar displays over fiber for long-distance runs.
• 10Gb per output — Each of the four outputs operates at 10Gb for high-bandwidth signal delivery.
• HSL Loop support — Enables looped connectivity for streamlined chaining within the system.
• Fiber distribution — Supports long runs with strong noise immunity between controller and displays.
• TAA compliant — Supports government and regulated procurement requirements.

Typical Applications

• Broadcast studio
• Government space
• Commercial meeting space
• Auditorium
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

When should I choose fiber over CAT outputs?
Fiber is preferred for long cable runs and high noise immunity. A CAT-output controller is available for shorter standard runs. Contact Creation Networks to choose the right model.

How many displays can it drive?
It provides four fiber outputs at 10Gb each. The number of displays depends on your wall layout and display model. Contact Creation Networks for output mapping.

What sources can I connect?
The controller accepts up to four HDMI inputs for distribution across the wall.

Which Planar displays is it compatible with?
It is designed for Planar video wall displays that accept fiber-based distribution. Contact Creation Networks to confirm compatibility with your displays.

What does HSL Loop do?
HSL Loop enables looped connectivity for streamlined chaining within the video wall system.

What warranty and support apply?
Contact Creation Networks for current warranty terms, firmware support, and integration assistance.
