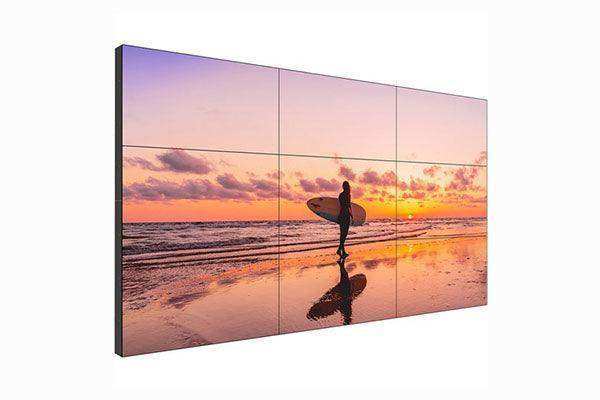

Planar 3x3 VM55LX-U Video Wall - VMC55LXU9
Product Overview
The Planar VM55LX-U is a commercial-grade 55-inch LCD video wall panel designed for large-scale tiled display installations. The VMC55LXU9 complete package delivers a 3x3 Planar VM55 LCD video wall panel configuration spanning 164 inches diagonally, making it one of the most impactful solutions available for retail, corporate, and command center environments. With a 3.5mm tiled bezel width and 500-nit brightness, this system is engineered for high-ambient-light settings where image continuity across panels is critical. The package includes nine displays, mounting hardware, and trim for a fully integrated Planar VM video wall installation.
Product Description
The Planar VMC55LXU9 delivers a 3x3 landscape video wall using nine VM55LX-U 55-inch LCD panels, each rated for continuous 24x7 operation. At 500 nits, the display maintains legibility in brightly lit commercial interiors without the washed-out appearance common in lower-brightness panels. The 3.5mm tiled bezel width minimizes visible seams between panels, preserving content continuity across the full 12-foot-wide canvas. Installation is simplified through the inclusion of Planar's purpose-built mounting system and trim components, reducing field-fabrication time and alignment challenges. The black aluminum enclosures give the finished wall a clean, professional appearance suited to corporate lobbies, retail flagships, and operations centers.
Key Features
- Nine 55" VM55LX-U LCD panels in 3x3 landscape configuration
- 164" diagonal total display area
- 3.5mm tiled bezel width for near-seamless tiling
- 500-nit brightness for high-ambient-light environments
- Full HD LCD display technology per panel
- 12-foot wide x 80.7" tall assembled footprint
- 3.9" installed depth
- Complete kit: displays, mounts, and trim included
- Black enclosure finish
- Designed for 24x7 commercial operation
Typical Applications
- Corporate lobbies and executive briefing centers
- Retail flagship stores and product showcase walls
- Control rooms and network operations centers
- Hospitality venues including hotel lobbies and conference centers
- Airport gate areas and transportation hubs
- Higher education commons and student centers
Technical Specifications
| Specification | Value |
|---|---|
| Configuration | 3x3 (9 panels) |
| Panel Size | 55" each |
| Diagonal (assembled) | 164" |
| Bezel Width (tiled) | 3.5mm (0.14") |
| Brightness | 500 nits |
| Display Type | LCD |
| Assembled Width | 12 ft (144") |
| Assembled Height | 80.7" |
| Installed Depth | 3.9" |
| Color | Black |
| Country of Origin | China |
| Package Contents | Displays, mounts, trim |
Competitor Comparison
| Criteria | Planar VMC55LXU9 | Samsung QBB-N Series 3x3 | LG UH7F Series 3x3 | NEC V Series 3x3 |
|---|---|---|---|---|
| Panel Size | 55" | 55" | 55" | 55" |
| Tiled Bezel Width | 3.5mm | 3.5mm | 3.5mm | 3.5mm |
| Brightness | 500 nits | 500 nits | 500 nits | 500 nits |
| Complete Kit (mounts + trim) | Yes | No (separate) | No (separate) | No (separate) |
| 24x7 Duty Cycle | Yes | Yes | Yes | Yes |
| TAA Compliant | No | No | No | Varies |
| Diagonal (assembled) | 164" | ~164" | ~164" | ~164" |
| Warranty | 3 years | 3 years | 3 years | 3 years |
Frequently Asked Questions
- Does this package include everything needed for installation?
- Yes. The VMC55LXU9 includes all nine VM55LX-U displays, the Planar mounting system, and trim. You will need a video wall controller and signal distribution hardware, which are sold separately.
- Can the 3x3 configuration be expanded to a larger array?
- The VM55LX-U panels are designed for tiling and can be integrated into larger arrays beyond 3x3, though additional panels and mounting hardware would be required and are sold separately.
- What video wall processors are compatible with this system?
- The VM55LX-U panels accept standard HDMI and DisplayPort inputs and are compatible with a wide range of video wall processors from vendors such as Datapath, Matrox, and others.
- Is this display suitable for permanent outdoor use?
- No. The VM55LX-U is rated for indoor commercial environments and is not weatherproofed for outdoor installation.
- What is the warranty on the VMC55LXU9?
- Planar provides a standard 3-year advance exchange warranty on VM Series displays.
