Planar 2x2 VM55LX-U Video Wall - VMC55LXU4

Product Overview

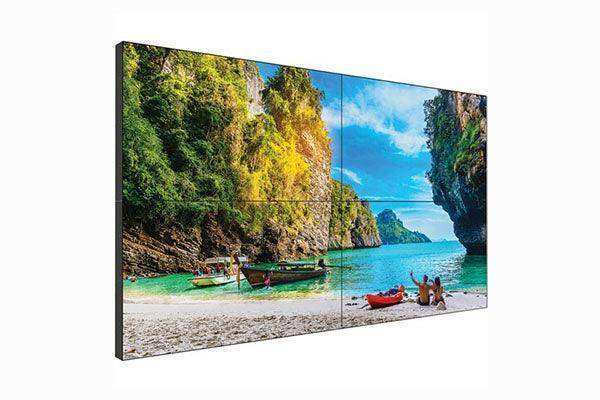

The Planar 2x2 VM55LX-U Video Wall is a complete commercial-grade 2x2 display system comprising four 55-inch LCD panels in a landscape configuration, producing a combined 109-inch diagonal display surface. With a 3.5mm tiled bezel width and 500-nit brightness, it is designed for retail, hospitality, and corporate lobby installations requiring an impactful multi-panel visual presence without custom integration complexity. The system ships with displays, mounts, and trim as a ready-to-install package. Its 20,000:1 dynamic contrast ratio and commercial-grade LCD panels support continuous operation in high-visibility environments.

Product Description

The Planar VM Complete VMC55LXU4 packages four VM55LX-U 55-inch LCD video wall panels in a coordinated 2x2 landscape array with mounts and trim included, reducing the procurement and planning complexity of a standard video wall project. The 3.5mm tiled bezel keeps panel joins tight while the 109-inch combined diagonal creates a display canvas suitable for brand messaging, directional content, and ambient video in commercial public spaces. At 500 nits, the system delivers adequate brightness for controlled ambient lighting conditions found in hotel lobbies, corporate receptions, and retail environments. The 20,000:1 dynamic contrast ratio supports clear differentiation between image elements, particularly for high-contrast content such as photography and video with dark backgrounds. The 3.9-inch installed depth allows the system to be mounted in standard commercial wall applications without excessive protrusion. Country of origin is listed as the United States.

Key Features

• Four 55-inch LCD video wall panels in a 2x2 landscape configuration
• 109-inch combined diagonal display surface
• 3.5mm tiled bezel width between panels
• 500 nits brightness
• 20,000:1 dynamic contrast ratio
• 3.9-inch installed depth
• Complete package: displays, mounts, and trim included
• Commercial-grade LCD panels
• Manufactured in the United States
• Black finish

Typical Applications

• Hotel and resort lobby brand walls
• Corporate reception and entrance atrium displays
• Retail flagship store feature walls
• Restaurant and food service menu and ambiance displays
• Airport terminal gate information walls
• Fitness center and sports facility display walls
• University and campus information kiosk displays

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is included in the VMC55LXU4 package?

The package includes all four VM55LX-U 55-inch LCD video wall display panels, the mounting hardware, and trim pieces. No additional mounting accessories are required for standard 2x2 landscape wall installation.

Is this a 4K display system?

Each panel is a 1920x1080 Full HD display. The combined 2x2 array can display 4K-equivalent content when driven by a compatible video wall controller that spans the source across all four panels.

What source connectivity is required to drive a 2x2 video wall?

A compatible video wall processor or controller is required to distribute and scale content across the four panels. The VM55LX-U panels accept standard display inputs; consult Creation Networks for recommended controller options.

What is the combined wall size when installed?

The installed 2x2 array measures 53.8 inches tall by 95.6 inches wide with a 3.9-inch installed depth, and presents a 109-inch diagonal display surface.

Is the VM55LX-U rated for 24/7 continuous use?

The panels are commercial-grade LCD displays rated for commercial deployment. Contact Creation Networks to confirm 24/7 duty cycle specifications for your specific application.
