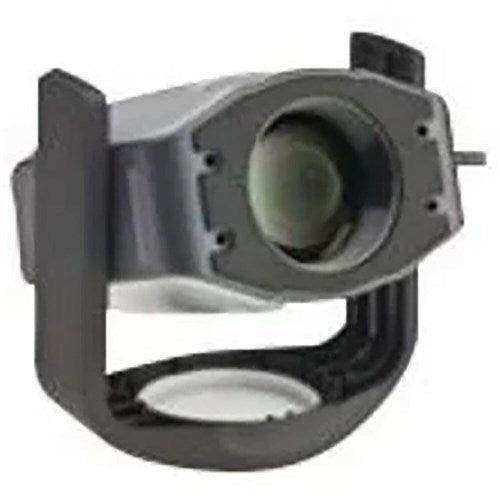

Philips CCK4602 – Video Wall Color Calibration Tool Kit

Product Overview

The Philips CCK4602 Color Calibration Tool Kit is purpose-built for video wall color calibration across multi-display Philips signage installations. Even identically configured displays drift in color and luminance due to component variation and panel aging, and this kit measures, compares, and aligns every screen to a common optimal target. Integrators and facilities teams use it to restore visual uniformity across tiled video walls without replacing panels. It supports tiling matrices from 1x1 up to 15x15 displays, making it suitable for everything from a small lobby wall to a large control room array.

Product Description

In any commercial video wall deployment, image uniformity is the difference between a professional installation and a patchwork of mismatched tiles. The Philips CCK4602 addresses this directly: it first measures the color characteristics of each individual display, then calibrates all displays in the array to a shared, optimal setting. The result is consistent tint, gamma, and backlight output across the entire wall.

For AV integrators, the kit simplifies commissioning and ongoing maintenance of Philips video wall displays such as the BDL-series signage panels. Calibration runs from a host computer, so technicians can adjust the color settings of each display centrally rather than navigating on-screen menus tile by tile. The software targets a custom 10000K tint, 2.2 gamma, and automatically aligns backlight levels to the maximum common light output of the array. Connection requirements are modest: a Windows 7 or Windows 10 host (32-bit or 64-bit), DVI, HDMI, or DisplayPort output, and an RS232 port (a USB-to-RS232 adapter also works). For IT and facilities managers, that means periodic recalibration can be scheduled in-house instead of contracting specialized service visits. If you are planning a complete video wall deployment, browse compatible Philips commercial displays at Creation Networks' Philips collection.

Key Features

• Multi-display uniformity calibration — Measures and aligns color and luminance across every tile so the entire video wall presents a single, consistent image.
• Supports 1x1 to 15x15 tiling matrices — Scales from a single display to a 225-panel array, covering small huddle walls through large control room installations.
• Host-computer operation — Adjusts color settings of each display from one Windows PC, reducing commissioning time for AV integration teams.
• Defined calibration targets — Calibrates to a custom 10000K tint and 2.2 gamma with backlight automatically aligned to maximum common output.
• Standard connectivity — Works over RS232 (native or via USB-to-RS232 adapter) with DVI, HDMI, or DisplayPort video output from the host.
• Light system requirements — Runs on Windows 7 or Windows 10 with 1 GB free memory and 400 MB of disk space, so any service laptop qualifies.

Typical Applications

• Broadcast studio video walls requiring consistent on-camera color
• Government space and operations-center display arrays
• Commercial meeting space and lobby video walls
• Auditorium and all-hands room large-format tiled displays

Technical Specifications

Frequently Asked Questions

Which displays is the CCK4602 compatible with?
It is designed for Philips video wall signage displays, including the 49BDL3005X series. Confirm your specific BDL model supports external calibration before ordering; our team can verify compatibility for your installation.

Do I need special hardware to run a calibration?
You need a Windows 7 or Windows 10 PC with DVI, HDMI, or DisplayPort output and an RS232 connection to the displays. A standard USB-to-RS232 adapter is supported if your laptop lacks a native serial port.

How large a video wall can it calibrate?
The kit supports tiling matrices from 1x1 up to 15x15, so it can handle arrays as large as 225 displays in a single calibration project.

How often should a commercial video wall be recalibrated?
Panel brightness and color drift gradually with operating hours. Most integrators recalibrate during scheduled maintenance windows, typically every 6 to 12 months in 16/7 or 24/7 environments.

Does Creation Networks help with calibration planning?
Yes. We support commercial AV deployments end to end, including pairing the CCK4602 with compatible Philips video wall displays from our Philips collection.
