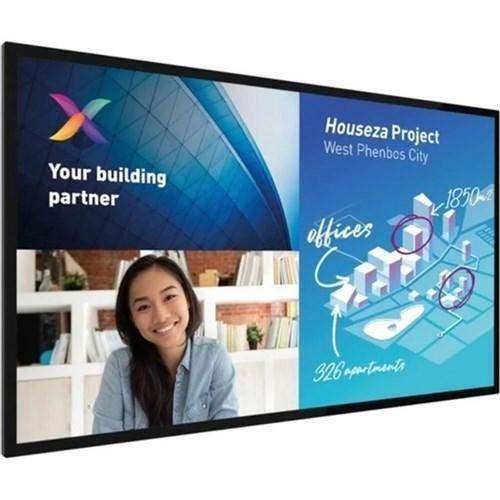

Philips 86BDL6051C/00 – 86" Interactive 4K Android Touch Display

Product Overview

The Philips 86BDL6051C/00 is an 86-inch 4K UHD interactive touch display built for collaborative meeting room installation in corporate, education, and training environments. Part of the Philips C-Line series, it combines high-end capacitive 10-point touch, edge-to-edge anti-glare glass, and an Android 9 SoC with built-in whiteboard mode and wireless screen sharing. An OPS slot and Crestron Connected certification give integrators flexible options for compute and room control. For organizations standardizing on interactive flat panels, this display covers ideation, presentation, and video conferencing on one device.

Product Description

With an 85.6-inch diagonal and native 3840 x 2160 resolution, the 86BDL6051C/00 gives every seat in a boardroom or training room a clear view of annotations and shared content. The panel produces 350 cd/m² brightness, 1.07 billion colors, a 1000:1 typical contrast ratio, and 178-degree viewing angles. HID capacitive touch with USB plug-and-play means Windows, macOS, and Chrome OS devices recognize the touch surface without driver installation, and the 1.5 mm even bezel delivers a flush, architectural appearance.

The onboard Android 9 SoC (quad-core MTK5680, 4 GB RAM, 32 GB eMMC storage) runs native and web apps directly on the display, so many deployments need no external player. Built-in whiteboard mode turns the screen into a multi-user canvas with capture and file-sharing, while wireless screen sharing displays up to four device feeds at once over the existing Wi-Fi network or optional HDMI interact dongles. Connectivity is generous for commercial AV integration: four HDMI 2.0 inputs, DisplayPort 1.2, DVI-I, USB-C, dual USB 2.0 and dual USB 3.0 ports, plus HDMI and DisplayPort outputs for repeater displays. RS232C, RJ45 LAN, and IR control support room control processors, and the display is Crestron Connected certified for enterprise-grade remote management. CMND & Control lets IT teams monitor and maintain fleets over LAN, and the OPS slot accepts a full slot-in PC for Windows-based conferencing stacks. Rated for 18/7 landscape operation with 2 x 20W speakers, it suits daily commercial duty cycles. Compare other interactive models in our Philips display collection.

Key Features

• 10-Point Capacitive Touch — High-end HID capacitive touch with USB plug-and-play supports multi-user annotation without driver installation.
• 86" 4K UHD Panel — 3840 x 2160 resolution with 178-degree viewing angles keeps fine detail readable across large meeting spaces.
• Android 9 SoC Built In — Quad-core processor with 4 GB RAM and 32 GB storage runs signage, whiteboard, and conferencing apps without an external player.
• Built-In Whiteboard Mode — Multi-user digital canvas with on-screen capture streamlines brainstorming and follow-up sharing.
• Wireless Screen Sharing — Display up to four device feeds simultaneously over Wi-Fi or optional HDMI casting dongles.
• Crestron Connected Certified — Native integration with Crestron control networks for scheduling, power, and source management.
• OPS Slot — Embed a full-power slot-in PC or Android CRD50 module with no external cabling.
• Anti-Glare Toughened Glass — Edge-to-edge glass with a 1.5 mm bezel resists reflections and heavy daily use.
• CMND & Control — Centralized LAN-based monitoring and management for one display or one hundred.
• Extensive I/O — HDMI 2.0 x4, DisplayPort 1.2, DVI-I, USB-C, and RS232/RJ45 control simplify AV integration and daisy-chaining.

Typical Applications

• Boardroom
• Conference room
• Training room
• Huddle room
• Commercial meeting space
• Multi-purpose room
• All-hands room

Technical Specifications

Frequently Asked Questions

Does the touch surface work with Windows and macOS without drivers?
Yes. The HID capacitive touch interface is USB plug-and-play, so connected laptops recognize it as a standard touch input device.

Can it run video conferencing without an external PC?
The Android SoC supports ready-to-use conferencing apps with your own USB camera, and the OPS slot accepts a slot-in Windows PC for Teams or Zoom Rooms deployments.

How does it integrate with Crestron control systems?
The display is Crestron Connected certified, enabling power, input, and scheduling control over the network, plus RS232C and RJ45 for other control platforms.

Is it rated for 24/7 operation?
No. The 86BDL6051C/00 is rated for 18/7 landscape operation, which suits meeting room and classroom duty cycles. For continuous signage, consider a 24/7-rated Philips D-Line model.

What mounting hardware does it require?
It uses a 600 x 400 mm M8 mounting pattern and weighs about 172 lb; specify a heavy-duty fixed or tilting mount rated for the load.

What warranty applies?
Philips includes a 3-year commercial warranty, and Creation Networks supports configuration and integration questions before and after purchase.
