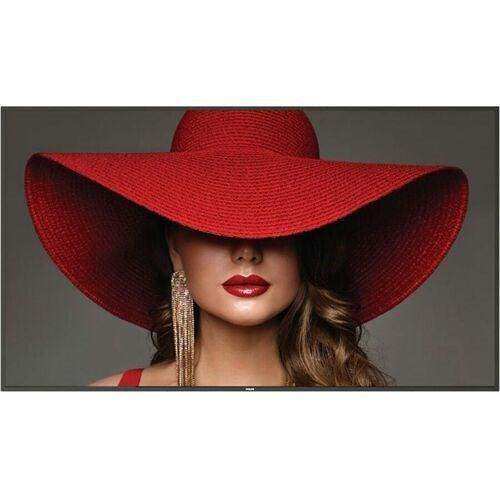

Philips 86BDL4650D/00 – 86" 4K Android SoC 24/7 Display

Product Overview

The Philips 86BDL4650D/00 is an 86-inch 4K UHD digital signage display built for 24/7 commercial deployment in lobbies, corporate communications, and large-format messaging walls. A D-Line series model powered by Android 11, it runs native and web apps directly on its system-on-chip, eliminating external media players in most installations. Integrated WiFi 6, Bluetooth 5.2, and an optional 4G/LTE module give integrators flexible connectivity for sites without hard-wired network drops. With a 500 cd/m² ADS wide-view panel and FailOver redundancy, it is designed to stay visible and stay on.

Product Description

The 85.6-inch ADS panel delivers native 3840 x 2160 resolution, 500 cd/m² brightness, a 1200:1 typical contrast ratio, 1.07 billion colors, and 178-degree viewing angles with strong color consistency for wide rooms and off-axis sightlines. Rated for continuous 24/7 operation in landscape or portrait, the display includes pixel-shift protection and a 50,000-hour MTBF for long signage duty cycles.

The Android 11 SoC (dual A72 plus quad A53 cores, 4 GB RAM, 32 GB eMMC) stores and plays content from internal memory, and the integrated Chromium-based SmartBrowser caches streaming content so playback continues even during network outages. PPDS Wave cloud management lets IT and facilities teams provision displays, push firmware, manage playlists, and schedule power remotely — a meaningful operational saving across multi-site commercial deployment. Connectivity includes two HDMI 2.0 inputs, DisplayPort 1.4 in and out, DVI-I (VGA via adapter), and USB 3.0 ports, with RS232C, RJ45, and IR loop-through for AV control system integration and daisy-chained installs. Tiled matrix support up to 10 x 15 enables multi-display arrays from native firmware. A slide-in WiFi 6 module ships in the box, and the modular design allows components to be detached and replaced to extend product lifetime. FailOver automatically switches to backup content if a media source fails, keeping the screen populated in customer-facing spaces. Explore related 24/7 signage models in our Philips commercial display collection.

Key Features

• Android 11 SoC Built In — Run native and web signage apps directly on the display, removing the cost and failure point of external players.
• 86" 4K UHD ADS Panel — 3840 x 2160 resolution with 178-degree wide-view technology keeps imagery accurate from any seat or angle.
• 24/7 Operation Rating — Continuous landscape or portrait duty with pixel-shift protection and 50,000-hour MTBF.
• 500 cd/m² Brightness — Strong visibility in lobbies, corridors, and ambient-lit commercial interiors.
• WiFi 6 + Bluetooth 5.2 — Included slide-in wireless module supports installations without dedicated network cabling; optional 4G/LTE module adds cellular failback.
• PPDS Wave Cloud Management — Remote provisioning, monitoring, firmware updates, playlist management, and power scheduling across the fleet.
• FailOver Content Protection — Automatic backup playback prevents blank screens when a primary source fails.
• Internal Memory Caching — 32 GB storage plays cached content through network interruptions.
• Tiled Matrix to 10 x 15 — Native multi-display tiling supports large signage arrays without external processors.
• Modular, Serviceable Design — Replaceable components extend lifetime and reduce e-waste in long-term deployments.

Typical Applications

• Commercial meeting space
• All-hands room
• Auditorium
• House of worship
• Government space
• Multi-purpose room
• Training room

Technical Specifications

Frequently Asked Questions

Does the 86BDL4650D/00 need an external media player?
In most cases, no. The Android 11 SoC runs signage apps and HTML5 content natively, with 32 GB of internal storage and network caching for offline playback.

How is a fleet of these displays managed remotely?
PPDS Wave provides cloud-based provisioning, monitoring, firmware updates, playlist management, and power scheduling; CMND and LAN/RS232 control remain available for on-prem management.

Can it operate without wired network access?
Yes. The included WiFi 6 module connects to existing wireless networks, and an optional 4G/LTE mPCIe module supports sites without any local network.

Is portrait installation supported for 24/7 use?
Yes, the display is rated 24/7 in both landscape and portrait orientation.

How does it integrate with AV control systems?
RS232C in/out, RJ45, and IR loop-through support Crestron, Extron, and similar processors, plus daisy-chained control across multiple displays.

What warranty is included?
Philips provides a 3-year commercial warranty, and Creation Networks supports deployment planning and after-sale questions.
