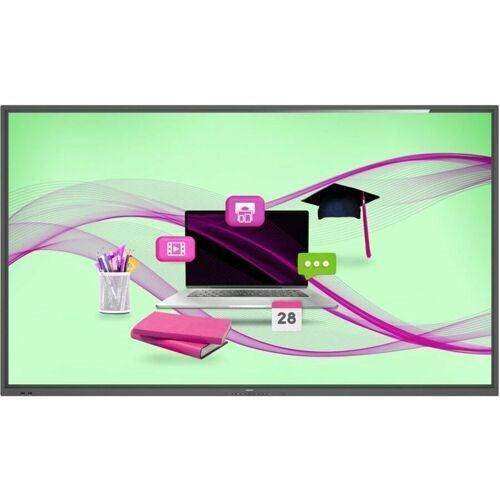

Philips 86BDL4052E/02 – 86" E-Line 4K Interactive Touch Display

Product Overview

The Philips 86BDL4052E/02 is an 86-inch E-Line 4K UHD interactive touch display built for classrooms, training rooms, and collaborative meeting spaces. Combining 20-point heat-enhanced infrared (HEIR) touch, integrated Android 11, and a 65W USB-C connection, it gives instructors and presenters a single-cable interactive whiteboard solution. With an 18/7 operating rating and a five-year warranty, it is engineered for daily commercial deployment rather than consumer duty cycles. Integrators planning an interactive display installation get OPS expansion, RS232/RJ45 control, and CMND remote management out of the box.

Product Description

For AV integrators and IT teams standardizing on a large-format interactive flat panel, the 86BDL4052E/02 delivers a 3840 x 2160 VA panel with 400 cd/m² brightness (after glass), 4000:1 native contrast, and 178-degree viewing angles, so content stays legible from the back row of a training room or all-hands space. The zero-gap infrared touch system supports 20 simultaneous touch points and is HID compliant, providing plug-and-play touch with Windows, macOS, and Chrome devices without driver installs.

The integrated Android 11 SoC (MTK 9970A, 8GB RAM, 32GB eMMC) runs whiteboarding, screen sharing, and signage apps directly on the display, while the OPS slot accepts a full slot-in PC for organizations that need a managed Windows image. Connectivity covers three HDMI 2.0 inputs, DVI-D, HDMI 2.0 output for daisy-chaining, USB-C with up to 65W power delivery, and three USB 3.0 plus three USB 2.0 ports for peripherals. Built-in 2 x 15W speakers handle voice and video playback without external amplification.

For commercial AV integration, the display offers RS232 in/out, RJ45 LAN control, and IR loop-through, and it can be monitored fleet-wide through Philips CMND & Control or the Wave cloud platform. The tempered 7-Mohs anti-glare glass with blue-light filtering stands up to classroom use, and wireless screen sharing supports up to four simultaneous feeds. Compare additional sizes and series in our Philips commercial display collection at Creation Networks.

Key Features

• 20-point HEIR multi-touch — Zero-gap infrared touch with HID compliance lets multiple students or presenters write and annotate simultaneously with no driver installation.
• 4K UHD VA panel — 3840 x 2160 resolution with 4000:1 contrast and 178-degree viewing angles keeps fine detail readable across large rooms.
• USB-C with 65W power delivery — One cable carries video, touch-back, and laptop charging for clean huddle room and classroom installations.
• Android 11 SoC built in — 8GB RAM and 32GB storage run whiteboard, casting, and signage apps without an external player.
• OPS slot for embedded PC — Add a slot-in Windows PC or Philips CRD50 Android module with no external cabling or power supply.
• Wireless screen sharing — Cast up to four device feeds at once over the existing Wi-Fi network or optional HDMI Interact dongles.
• Fleet management ready — CMND & Control over LAN and the Wave cloud platform handle monitoring, firmware, and power scheduling at scale.
• 18/7 commercial rating with 5-year warranty — Built for extended daily operation in education and corporate deployments, backed by a five-year limited warranty.
• Durable protective glass — Tempered 7-Mohs anti-glare safety glass with blue-light filter withstands constant touch interaction.

Typical Applications

• Training room
• Conference room
• Boardroom
• All-hands room
• Multi-purpose room
• House of worship
• Government space

Technical Specifications

Frequently Asked Questions

Does the 86BDL4052E/02 require touch drivers for Windows or macOS?
No. The touch panel is HID compliant, so touch works plug-and-play over the included USB touch connection with Windows, macOS, and Chrome OS devices.

Can I run a Windows PC inside the display?
Yes. The OPS slot accepts a standard slot-in OPS PC or the Philips CRD50 Android module, with power and signal handled internally — no external cabling required.

How is the display managed in a multi-room deployment?
It supports Philips CMND & Control over LAN plus the Wave cloud platform for remote monitoring, firmware updates, playlists, and power schedules, and it can also be driven by RS232 or IP control from AV control systems.

Is it rated for all-day classroom use?
Yes. The display carries an 18 hours/7 days commercial operating rating with a 50,000-hour MTBF and is covered by a five-year limited warranty.

Does USB-C carry both video and laptop charging?
Yes. The USB-C input carries video, touch, and up to 65W of power delivery, allowing a single-cable connection for presenter laptops.

What is included for installation?
The box includes HDMI, DVI-I, USB A-to-B, RS232 and RS232 daisy-chain cables, an IR sensor cable, two touch pens, remote control, and mounting hardware accessories; the display mounts to standard VESA 600 x 400 patterns.
