Philips 86BDL3650Q/00 – 86" Q-Line 4K Digital Signage Display

Product Overview

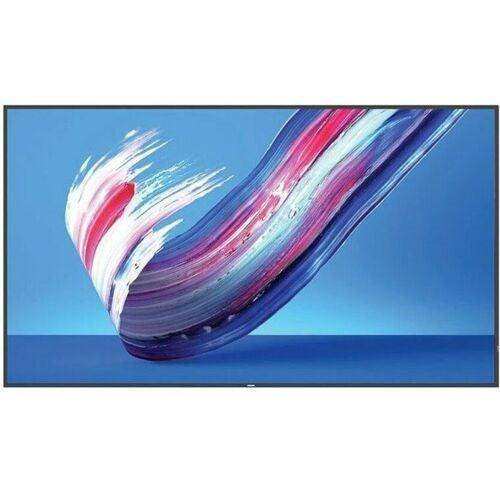

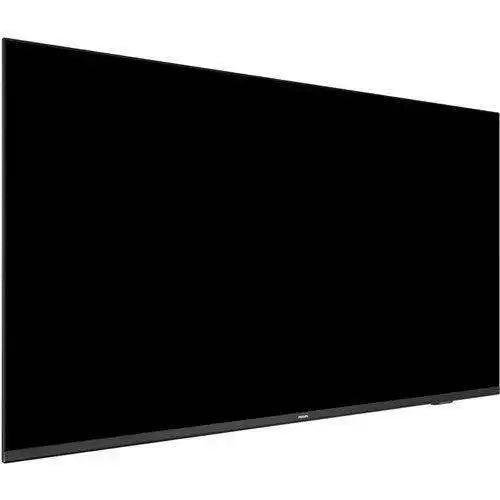

The Philips 86BDL3650Q/00 is an 86-inch Q-Line 4K UHD digital signage display built for lobbies, large meeting rooms, wayfinding, and menu and message boards that run all day. Its integrated Android 10 SoC plays scheduled content directly from internal memory or USB, so many commercial deployments need no external media player. Rated for 18/7 operation in both landscape and portrait, it pairs a 400 cd/m2 IPS panel with a slim, even 15.5 mm bezel for a clean installed appearance. Remote management through Philips Wave and CMND keeps multi-site signage networks under central IT control.

Product Description

Procurement and AV teams sourcing a large-format commercial signage display get a 85.6-inch direct-LED IPS panel at 3840 x 2160 resolution, 400 cd/m2 brightness, 1200:1 contrast, and 178-degree viewing angles — strong off-axis legibility for wide lobbies and corridors. The 25% haze surface treatment moderates reflections under ambient lighting.

The quad-core Cortex A55 Android 10 SoC with 3GB RAM and 16GB storage runs native Android apps, web apps, and the integrated Chromium-based HTML5 browser, letting content teams publish playlists from the cloud without dedicated hardware in every room. A built-in scheduler wakes the display from standby to play USB or internal content, then returns it to standby — useful for energy policies in around-the-clock facilities. FailOver automatically switches to backup content if the primary source or app fails, so public-facing screens never go blank.

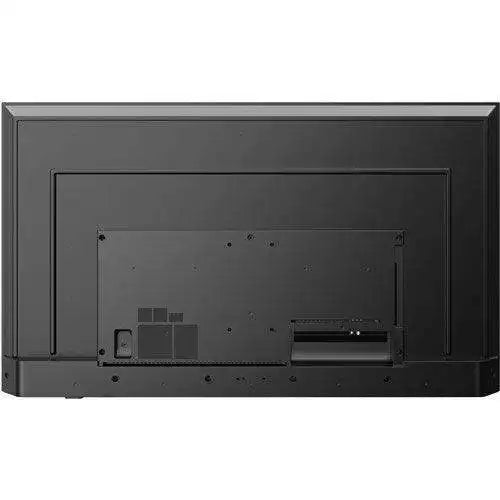

For AV integration, the display offers two HDMI 2.0 inputs, DVI-I, USB 3.0/2.0, micro SD, and an OPS slot for a slot-in PC, plus RS232 in/out, RJ45, and IR loop-through for control system integration. A tiled matrix mode supports arrays up to 3x3 for simple multi-panel walls. IT teams can manage firmware, playlists, and power schedules remotely with Philips Wave or run LAN-based control through CMND. Compare the 32-inch through 86-inch Q-Line range in the Philips collection at Creation Networks.

Key Features

• 86-inch 4K UHD IPS panel — 3840 x 2160 resolution with 178-degree viewing angles keeps signage legible across wide public spaces.
• 18/7 operation, landscape or portrait — Commercial duty rating in both orientations supports menu boards, wayfinding, and lobby installations.
• Android 10 SoC media engine — Quad-core processor with 16GB storage plays scheduled playlists without an external signage player.
• Wave cloud management — Remotely monitor displays, push firmware, manage playlists, and set power schedules across sites.
• FailOver content protection — Automatic switchover to a backup input or content keeps public screens populated during source failures.
• HTML5 browser built in — The Chromium-based browser renders cloud-designed content in landscape or portrait over Wi-Fi or RJ45.
• OPS slot expansion — Add a slot-in PC for Windows-based signage or interactive applications without external cabling.
• Tiled matrix up to 3x3 — Build simple multi-panel arrays without an external video wall processor.
• Control system ready — RS232 in/out, RJ45, and IR loop-through integrate with room and building control platforms.

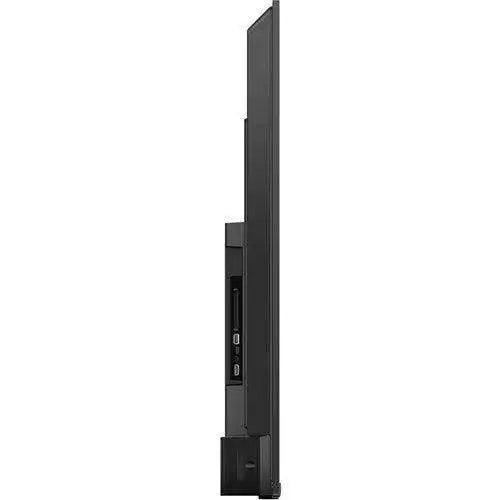

• Slim even bezel — 15.5 mm uniform bezel and 2.74-inch wall-mount depth give architects a low-profile installed look.

Typical Applications

• Commercial meeting space
• All-hands room
• Auditorium
• House of worship
• Government space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Do I need a separate media player for digital signage?
In most cases, no. The built-in Android 10 SoC plays scheduled content from internal memory, USB, native apps, or the HTML5 browser, covering typical signage workflows without external hardware.

How are displays managed across multiple locations?
Philips Wave provides cloud-based monitoring, firmware updates, playlist management, and power scheduling, while CMND offers LAN-based control. RS232 and RJ45 also support AV control system integration.

Can the display be mounted in portrait?
Yes. The 86BDL3650Q is rated 18/7 in both landscape and portrait orientations.

What happens if the content source fails?
FailOver automatically plays designated backup content if the primary input or application stops, keeping public-facing screens active.

Can I add a Windows PC for interactive or specialized applications?
Yes. The OPS slot accepts a standard slot-in OPS PC with power and signal handled inside the display.

Is this display suitable for true 24/7 operation?
It carries an 18/7 commercial rating. For continuous 24/7 duty, consider the Philips D-Line series, also available in the Creation Networks Philips collection.
