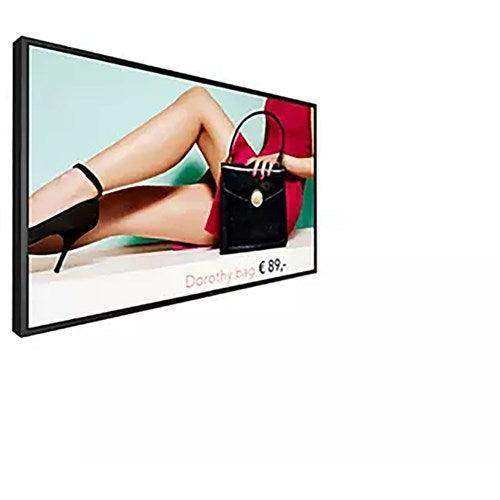

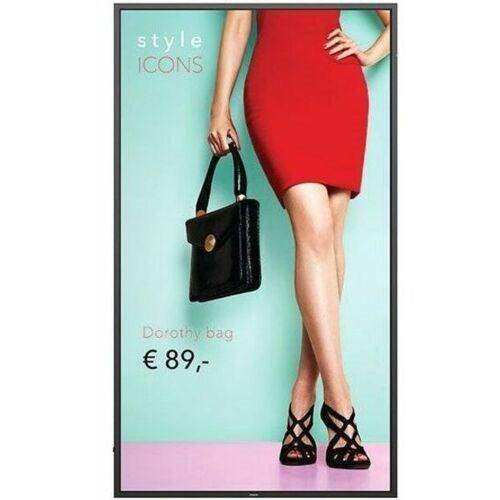

Philips 75BDL4003H – 75" 3000-Nit High Brightness 4K Display

Product Overview

The Philips 75BDL4003H is a 75-inch H-Line ultra high-brightness commercial display built for window signage and sunlight-facing installations where standard panels wash out. Its 4K UHD IPS panel produces 3000 cd/m² — roughly six times the brightness of a typical commercial display — with enhanced thermal management and high-TNI liquid crystals engineered for direct solar load. Rated for 24/7 operation in landscape or portrait, it keeps street-facing content visible day and night. For storefronts, transit hubs, and glass-walled lobbies, this is the display class designed for the job.

Product Description

Window-facing digital signage fails in two ways: the image washes out in sunlight, or the panel blackens from solar heat. The H-Line 75BDL4003H addresses both. The 3000 cd/m² backlight keeps content legible against direct sun, while high-TNI liquid crystals, enhanced thermal management, and built-in thermal sensors prevent the isotropic blackening that damages standard panels behind glass.

A built-in ambient light sensor automates brightness, driving full output at midday and dimming after dark to save energy and extend backlight life. The display polarizer is compatible with polarized sunglasses, so content stays readable to passersby wearing them — a detail that matters for street-level retail signage. Picture quality is commercial-grade: 4K UHD resolution on an IPS panel with 1.07 billion colors, 1200:1 native contrast, and 178/178-degree viewing angles.

For AV integration, three HDMI 2.0 inputs, DisplayPort 1.2, and DVI-I feed the panel, with HDMI and DisplayPort loop-through outputs for daisy-chained window arrays. Control runs over RJ45, RS232 in/out, and IR, integrating cleanly with signage CMS platforms and room control processors. The OPS slot accepts a slot-in PC or the optional CRD50 Android module for embedded playback, and FailOver switches to backup content automatically if a source fails — essential for unattended street-facing screens. CMND & Create provides drag-and-drop content authoring for teams without a dedicated CMS. Note: this is a high-power display (510 W typical), so plan circuit capacity during commercial deployment. Explore standard-brightness alternatives in the Philips collection at Creation Networks.

Key Features

• 3000 cd/m² ultra high brightness — Content stays visible through storefront glass and in direct sunlight where standard 500-nit panels wash out.
• Engineered for solar load — High-TNI liquid crystals, thermal sensors, and enhanced cooling withstand direct sun exposure behind windows.
• 4K UHD IPS panel — 3840 x 2160 resolution with 1.07 billion colors and 178-degree viewing angles delivers detail at street distance and close range.
• 24/7 duty rating — Continuous landscape or portrait operation with 50,000-hour MTBF suits always-on signage.
• Automated ambient brightness control — The built-in light sensor scales output to conditions, cutting energy use after dark.
• Polarized-sunglasses-readable — The display polarizer keeps content legible to viewers wearing polarized lenses.
• FailOver content protection — Automatic switchover to a backup input keeps unattended street-facing screens playing.
• OPS slot for embedded compute — Slide in a PC or the optional CRD50 Android module without external cabling.
• Loop-through and network control — HDMI/DisplayPort loop-out plus RJ45, RS232, and IR support daisy-chained window arrays and CMS integration.
• 3-year commercial warranty — Philips coverage backs the display through demanding deployments.

Typical Applications

• Commercial meeting space
• Government space
• House of worship
• Multi-purpose room
• Auditorium

Technical Specifications

Frequently Asked Questions

When do I need a 3000-nit display instead of a standard commercial panel?
Any installation facing direct sunlight or behind storefront glass: standard 350–700 nit displays wash out and can suffer heat damage, while the H-Line is engineered for solar exposure.

Can this display be installed in a window facing the sun?
Yes. High-TNI liquid crystals, thermal sensors, and enhanced thermal management are specifically designed for window installations with direct solar load.

Does it need an external media player?
Not necessarily. The OPS slot accepts a slot-in PC or the optional Philips CRD50 Android module, and CMND & Create supports on-display content authoring.

What power provisioning should I plan?
Typical consumption is 510 W (790 W max), substantially higher than standard displays. Verify circuit capacity and ventilation during installation planning.

How does it integrate with signage networks?
RJ45 and RS232 control work with CMND and common signage CMS platforms, and loop-through outputs daisy-chain multiple window-facing displays from one source.

What warranty applies?
Philips includes a 3-year commercial warranty. Creation Networks provides design assistance for high-brightness signage deployments.
