Philips 75BDL3652T/00 – 75" T-Line Interactive Classroom Display

Product Overview

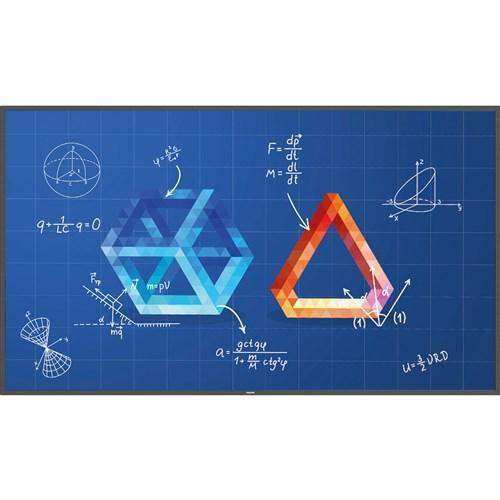

The Philips 75BDL3652T/00 is a 75-inch T-Line 4K UHD interactive whiteboard display built for classrooms, lecture spaces, and corporate training rooms. Its 20-point zero-gap infrared touch panel, tempered anti-glare glass, and integrated Android SoC give instructors annotation, whiteboarding, and wireless casting with no external PC required. Rated for 18/7 landscape operation (12/7 portrait) and covered by a five-year warranty, it is engineered for daily commercial deployment. AV integrators get an OPS slot, RS232/RJ45 control, and CMND fleet management for multi-room rollouts.

Product Description

For education technology and AV teams sizing an interactive flat panel installation between huddle-scale and full 86-inch boards, the 75BDL3652T provides a 74.5-inch IPS panel at 3840 x 2160 resolution, 420 cd/m2 brightness, 1200:1 contrast, and 178-degree viewing angles — with anti-glare surface treatment that keeps content readable under classroom lighting. The zero-gap infrared touch system supports 20 simultaneous touch points and is HID compliant for plug-and-play touch on Windows, macOS, and Chrome devices.

The onboard Android 9 SoC (MTK5680, 4GB RAM, 32GB eMMC) runs whiteboard mode, screen sharing, and education apps directly on the display, with a built-in scheduler for dayparting content. Organizations standardizing on Windows can add a slot-in OPS PC or Philips CRD50 module — power and signal are internal, so no extra cabling reaches the wall. Inputs include four HDMI 2.0, DisplayPort 1.2, DVI-I, and USB-C, plus USB 3.0/2.0 ports and micro SD; HDMI and DisplayPort outputs support content loop-out to overflow displays.

Built-in 2 x 20W speakers cover voice and lesson media without external amplification, and wireless screen sharing puts up to four device feeds on screen at once over the campus Wi-Fi or optional Interact dongles. For commercial AV integration, RS232 in/out, RJ45, and IR loop-through tie into room control systems, while CMND & Control manages firmware, inputs, and status across an entire district from one console. See companion 65-inch and 86-inch T-Line models in the Philips collection at Creation Networks.

Key Features

• 20-point zero-gap IR touch — HID-compliant infrared touch lets several students write at once with plug-and-play operation and no drivers.
• 75-inch 4K IPS panel — 3840 x 2160 resolution at 420 cd/m2 with 178-degree viewing angles keeps lessons sharp from any seat.
• Anti-glare tempered safety glass — Toughened, glare-reducing glass is built for heavy daily touch use in schools.
• Android SoC with whiteboard mode — 4GB RAM and 32GB storage run whiteboarding, casting, and apps without an external player.
• OPS slot for embedded PC — Slide in a Windows OPS PC or CRD50 Android module with internal power and signal connections.
• Extensive input set — Four HDMI 2.0 inputs plus DisplayPort 1.2, DVI-I, and USB-C cover room PCs, cameras, and guest laptops.
• Wireless screen sharing — Show up to four device feeds simultaneously over Wi-Fi or optional Interact HDMI dongles.
• Built-in 2 x 20W speakers — Room-filling audio for lesson media without separate amplification in most classrooms.
• CMND fleet management — Monitor, control, and maintain one display or one hundred over LAN, plus RS232/RJ45 control integration.
• 18/7 rating with 5-year warranty — Commercial duty cycle and long warranty term protect multi-year education budgets.

Typical Applications

• Training room
• Conference room
• Multi-purpose room
• House of worship
• Government space
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

Does touch work without installing drivers?
Yes. The panel is HID compliant, so 20-point touch works plug-and-play over the included touch USB connection with Windows, macOS, and Chrome OS sources.

Can the display run our classroom software without a PC?
Native Android and web apps install directly to the onboard Android 9 SoC, and built-in whiteboard mode runs standalone. For Windows-only software, add a slot-in OPS PC in the internal OPS bay.

How do we manage a building full of these displays?
Philips CMND & Control runs over LAN for status monitoring, input control, and maintenance at fleet scale, while RS232 and RJ45 ports integrate with AV control processors for scheduled power and source switching.

Can guests cast without joining our network?
Yes. Wireless screen sharing works over your existing Wi-Fi, and optional Interact HDMI dongles let visitors cast directly to the screen without network credentials.

Is portrait installation supported?
Yes. The display is rated for 18/7 operation in landscape and 12/7 in portrait, giving integrators flexibility for signage and wayfinding uses.

What is included in the box for installation?

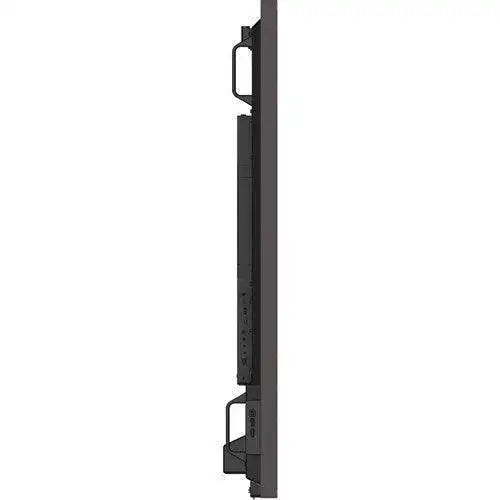

Remote control with batteries, HDMI, DVI-D, RS232 and RS232 daisy-chain cables, IR sensor cable, touch USB cable, two touch pens, mounting screws, and a quick start guide. The display mounts to VESA 600 x 400 mm patterns.
