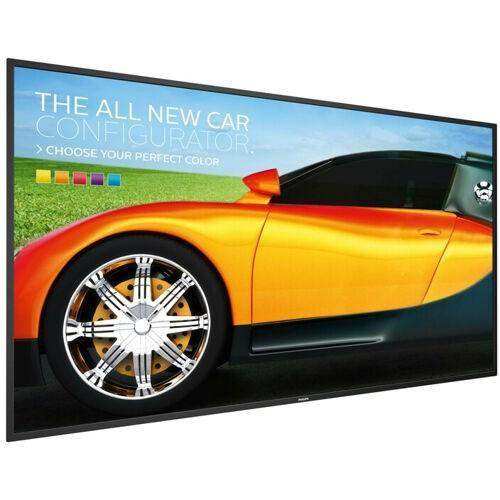

Philips 75BDL3003H/00 – 75" 3000-Nit High Brightness 4K Display

Product Overview

The Philips 75BDL3003H/00 is a 75-inch ultra high-brightness 4K UHD display engineered for 24/7 digital signage installation in storefront windows, transit hubs, and other high ambient light environments. Its 3000 cd/m² IPS panel keeps content visible even in direct sunlight-facing and semi-outdoor placements where standard commercial displays wash out. Part of the Philips H-Line series, it adds QuadViewer multi-source viewing, FailOver redundancy, and an OPS slot for embedded compute. For integrators specifying window-facing signage, this panel solves the brightness problem in a single SKU.

Product Description

The 75BDL3003H/00 pairs a 74.5-inch IPS panel with native 3840 x 2160 resolution, 1.07 billion colors, and a 1200:1 typical contrast ratio. At 3000 cd/m², it delivers roughly six times the brightness of a standard meeting room display, making it suitable for glass-fronted retail, lobbies with floor-to-ceiling windows, and covered semi-outdoor commercial deployment. An optional CRD41 external light sensor automates backlight output as ambient conditions change, reducing power draw while preserving legibility.

The display is rated for continuous 24/7 operation in landscape or portrait, with pixel-shift and low-brightness screen-saving functions protecting the panel across a 50,000-hour MTBF. QuadViewer turns the single screen into a bezel-free 2x2 layout playing four independent sources at once, a practical fit for broadcast monitoring and control room AV integration. FailOver automatically switches to a backup input if the primary source drops, and CMND & Control plus CMND & Create give IT and facilities teams fleet management and drag-and-drop content publishing over LAN. Inputs include dual HDMI, DisplayPort 1.2, DVI-D, VGA, and component video, with DisplayPort output and RS232/IR loop-through for daisy chains. The OPS slot accepts a slot-in PC or the optional Android CRD50 module, eliminating external media players.

See related high-brightness and large-format models in our Philips commercial display collection.

Key Features

• 3000 cd/m² Ultra High Brightness — Content stays readable in direct ambient light, storefront windows, and semi-outdoor installations.
• 75" 4K UHD IPS Panel — 3840 x 2160 resolution with consistent color from wide angles serves large-format signage and monitoring walls.

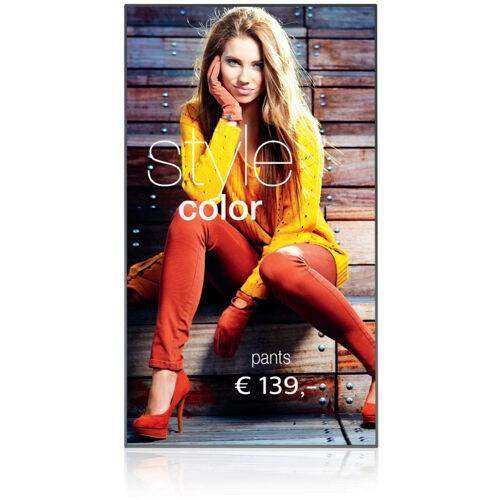

• 24/7 Operation, Landscape or Portrait — Continuous-duty rating with 50,000-hour MTBF supports always-on commercial deployment.
• QuadViewer Multi-Source Display — Play four independent inputs on one screen, ideal for broadcast and control room monitoring.
• FailOver Input Redundancy — Automatic switching to secondary sources prevents blank screens during source failures.
• OPS Slot — Embed a slot-in PC or optional Android CRD50 module without external cabling.
• CMND & Control / CMND & Create — Manage display networks over LAN and publish templated content without third-party CMS costs.
• Optional Automated Light Sensor — The CRD41 sensor adjusts backlight to ambient conditions for energy savings.
• Integration-Ready Control — RS232C in/out, RJ45 LAN, HDMI One Wire, and IR loop-through fit standard AV control architectures.

Typical Applications

• Broadcast studio
• Government space
• Commercial meeting space
• Auditorium
• Multi-purpose room
• House of worship

Technical Specifications

Frequently Asked Questions

Can the 75BDL3003H/00 be installed outdoors?
It is suited to semi-outdoor use, such as covered or window-facing locations with high ambient light. It is not an IP-rated outdoor enclosure display, so protect it from direct weather exposure.

Why specify 3000 nits instead of a standard 500-nit display?
Sunlight through storefront glass can exceed the output of standard panels, washing out content. The 3000 cd/m² rating keeps imagery legible in those conditions.

Does it need an external media player?
Not necessarily. The OPS slot accepts a slot-in PC or the optional Android CRD50 module, and USB playback handles scheduled content directly.

How does QuadViewer help in control room installations?
QuadViewer displays four independent input signals in a 2x2 layout on one bezel-free screen, replacing a small monitor wall for camera or feed monitoring.

What control system integration is supported?
RS232C in/out, RJ45 LAN, and IR loop-through work with Crestron, Extron, and similar processors, and CMND & Control provides LAN-based fleet management.

What warranty is included?
Philips covers this model with a 3-year commercial warranty; Creation Networks assists with installation planning and post-sale support.
