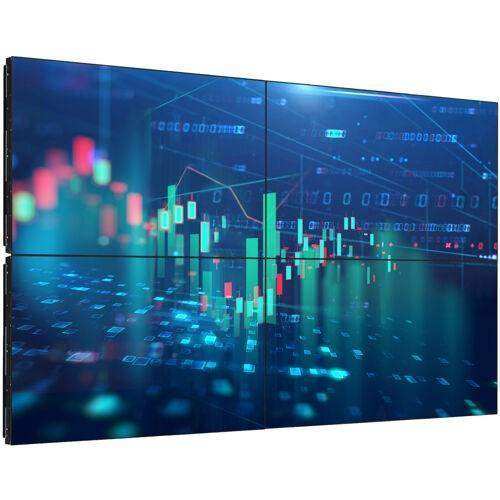

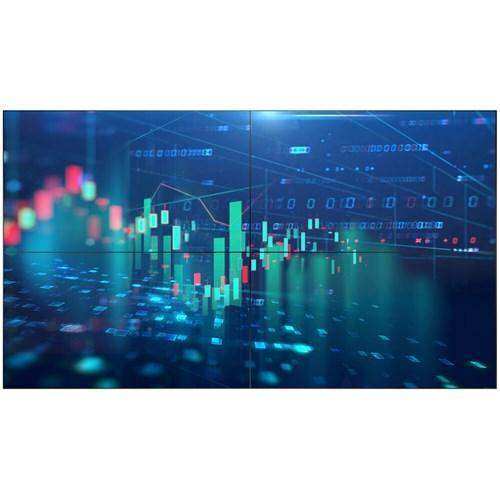

Philips 65BDL6005X/00 – 65" 4K Video Wall Display 3.5mm Bezel

Product Overview

The Philips 65BDL6005X/00 is a 65-inch 4K UHD video wall display engineered for 24/7 operation in control rooms, broadcast monitoring, and large-venue commercial installations. An X-Line series panel with an ultra-narrow 3.5 mm bezel-to-bezel design, it tiles into arrays up to 10 x 10 with native tiling mode and no external video wall processor for many configurations. The 500 cd/m² IPS panel with Pure Colour Pro calibration keeps color consistent across adjacent tiles — essential for a uniform wall. FailOver redundancy and CMND & Control management make it a dependable building block for mission-critical video wall installation.

Product Description

Each 64.5-inch tile delivers native 3840 x 2160 resolution, 1.07 billion colors, a 1300:1 typical contrast ratio, and 178-degree viewing angles from its direct-LED IPS panel. The combined 3.5 mm bezel-to-bezel gap (2.3 mm + 1.2 mm) minimizes visual seams, so multi-tile content reads as one continuous canvas in lobbies, auditoriums, and broadcast studios.

Native tiling mode lets a single 4K source drive a 2x2 wall at full dot-by-dot resolution, with the tiled matrix scaling to 10 x 10 for larger arrays. DisplayPort 1.2 loop-through carries video between tiles, while IR and RS232 over RJ45 plus dual LAN ports daisy-chain control signals through the wall — a clean topology that reduces home-run cabling during AV integration. CMND & Control monitors inputs and display health across the array over LAN, and FailOver switches automatically to a secondary input if the primary feed drops, keeping operations centers and 24/7 monitoring walls live. Each display includes an OPS slot for a slot-in PC or optional Android CRD50 module, and inputs cover two HDMI 2.0 ports, DisplayPort 1.2, DVI-D, and VGA. The included edge alignment kit and gap pads speed physical installation, and carrying handles plus a 29.2 kg per-tile weight make rigging manageable.

Plan a full wall with matching tiles from our Philips commercial display collection.

Key Features

• 3.5 mm Bezel-to-Bezel Design — Ultra-narrow combined bezel keeps seams nearly invisible across tiled video wall content.
• 65" 4K UHD IPS Panel — 3840 x 2160 resolution per tile with 178-degree viewing angles and consistent color across the array.
• 24/7 Operation Rating — Continuous landscape or portrait duty with pixel-shift protection and 50,000-hour MTBF.
• 500 cd/m² Brightness — Maintains legibility in control rooms, lobbies, and ambient-lit venues.
• Native Tiling to 10 x 10 — Build tiled 4K walls from a single source without an external processor for standard layouts.
• Pure Colour Pro Calibration — Custom color temperature and gamma calibration keep adjacent tiles visually matched.
• FailOver Input Redundancy — Automatic source switching keeps mission-critical walls populated during feed failures.
• Daisy-Chain Topology — DisplayPort loop-through plus IR/RS232-over-RJ45 and dual LAN ports simplify multi-tile cabling.
• OPS Slot — Embed a slot-in PC or optional Android CRD50 module directly in the display.
• Installer-Friendly Kit — Included edge alignment kit, gap pads, and carrying handles speed video wall installation.

Typical Applications

• Broadcast studio
• Government space
• Auditorium
• All-hands room
• Commercial meeting space
• House of worship
• Boardroom

Technical Specifications

Frequently Asked Questions

Do I need a video wall processor with the 65BDL6005X/00?
Not for standard layouts. Native tiling mode lets one 4K source feed a 2x2 wall at full resolution via DisplayPort loop-through; larger or multi-window walls may still warrant an external processor.

How large a wall can be built?
The tiled matrix supports configurations up to 10 x 10 (100 displays), with daisy-chained video and control between tiles.

How is color matched across tiles?
Pure Colour Pro provides custom color temperature settings and advanced gamma calibration so adjacent panels stay visually uniform.

Is it rated for 24/7 control room use?
Yes. The display is rated for continuous 24/7 operation in landscape or portrait, with FailOver input redundancy for mission-critical feeds.

What is included for alignment during installation?
Each display ships with an edge alignment kit, gap pads, an RJ45/RS232 converter, and DisplayPort and RJ45 cables for chaining.

What warranty applies?
Philips provides a 3-year commercial warranty; Creation Networks supports wall design, mount selection, and post-sale service.
