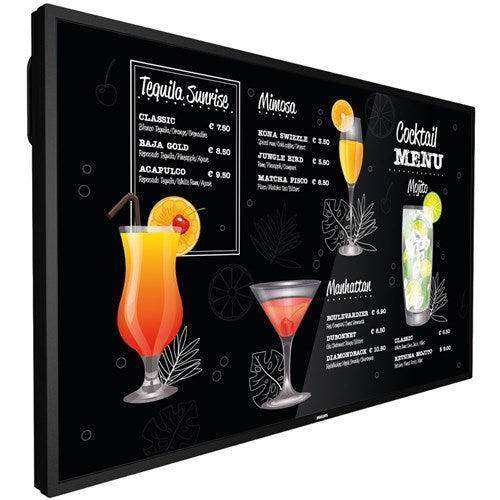

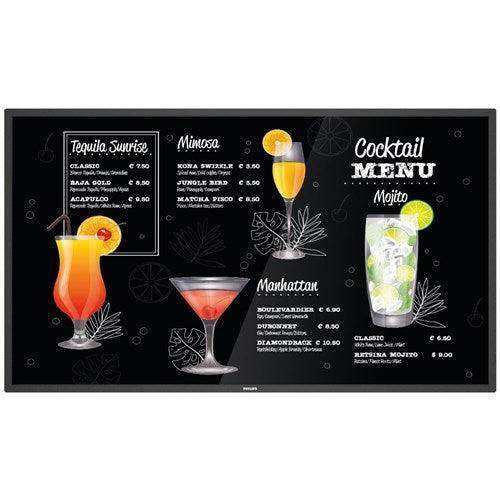

Philips 55BDL3452T/00 – 55" UHD Multi-Touch Commercial Display

Product Overview

The Philips 55BDL3452T/00 is a 55-inch 4K UHD multi-touch commercial display built for interactive wayfinding, self-service kiosks, and collaborative meeting spaces. Its 20-point IR touch panel with tempered safety glass handles continuous public interaction, while the integrated Android 8 SoC runs touch applications without an external PC. Rated for 18/7 operation in both landscape and portrait, this T-Line display fits interactive digital signage installation in lobbies, conference rooms, and training environments. HID-compliant plug-and-play touch keeps deployment simple for IT teams driving the display from Windows or other host systems.

Product Description

For commercial AV integrators specifying an interactive touch display, the 55BDL3452T balances panel quality, touch performance, and embedded compute. The 55-inch IPS panel delivers 3840 x 2160 resolution at 60 Hz with 400 cd/m² brightness, a 1300:1 typical contrast ratio, 178-degree viewing angles, and an anti-glare coating that keeps content readable under lobby and retail lighting. The infrared high-efficiency (IRHE) touch layer supports 20 simultaneous touchpoints behind 3 mm tempered safety glass, so multiple users can annotate, navigate, or collaborate at the same time.

The internal Android 8 player uses a quad-core ARM SoC (2x A73 + 2x A53) with Mali G51 graphics, 2 GB DDR3 RAM, 8 GB storage, and dual-band Wi-Fi, enough for kiosk apps, web content, and media playback from internal memory. Kiosk mode locks the interface to a single application for self-service deployments, and FailOver automatically switches to a backup input if the primary source drops. Internal memory also caches streamed content so playback continues during network interruptions.

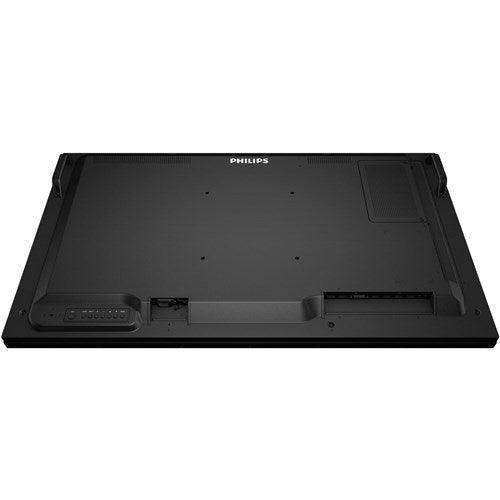

Connectivity covers two HDMI 2.0 inputs, DVI-D, VGA, USB Type-A and Type-B (touch), microSD, and an OPS slot for embedding a slot-in PC when the application calls for Windows. RJ45, RS232C in/out, and IR loop-through provide control-system integration, and the CMND suite — Control, Create, and Deploy — gives IT teams remote monitoring, content authoring, and over-the-network app installation across the fleet. At 18/7 duty in either orientation with a 50,000-hour MTBF and 140 W typical draw, the display suits full business-day commercial deployment. See related touch and signage models in the Philips display collection at Creation Networks.

Key Features

• 20-point IR multi-touch with HID plug-and-play — Up to 20 simultaneous touchpoints work driver-free with connected PCs for fast deployment.
• 4K UHD IPS panel — 3840 x 2160 resolution with wide viewing angles keeps wayfinding maps and fine text sharp at close interaction distances.
• 3 mm tempered safety glass — The anti-glare protective layer withstands constant public touch interaction in high-traffic spaces.
• Android 8 SoC with Wi-Fi — Run native kiosk and signage apps directly on the display, eliminating an external media player.
• Kiosk mode — Lock the display to a single application for self-service and public-facing interactive deployments.
• FailOver and internal memory — Backup input switching and cached content keep the screen live through source or network failures.
• CMND Control, Create, and Deploy — Monitor displays, author content, and push apps remotely across one screen or one hundred.
• OPS slot — Embed a slot-in Windows PC internally when applications require more compute than the onboard SoC.
• 18/7 landscape and portrait operation — Full business-day duty cycle in either orientation with a 50,000-hour MTBF.

Typical Applications

• Conference room
• Huddle room
• Training room
• Commercial meeting space
• Government space
• Multi-purpose room
• House of worship

Technical Specifications

Frequently Asked Questions

Does the touch panel work without installing drivers?
Yes. The 20-point IR touch layer is HID compliant, so it operates plug-and-play over the USB Type-B connection with Windows and other host operating systems.

Can it run a kiosk application without an external PC?
Yes. The built-in Android 8 SoC with 2 GB RAM and 8 GB storage runs native and web kiosk apps directly, and kiosk mode locks the display to a single application for public use.

Is portrait installation supported?
Yes. The display is rated 18/7 in both landscape and portrait, with a VESA 400 x 400 mounting pattern for standard commercial mounts.

How does fleet management work across multiple sites?
CMND & Control manages monitoring and input control over RJ45 LAN, CMND & Deploy pushes app installs remotely, and RS232C supports integration with Crestron, Extron, and similar AV control processors.

What happens if the content source fails?
FailOver automatically switches to a designated secondary input, and the internal memory caches streamed media so cached content continues playing through network outages.

What warranty is included?
Philips provides a 3-year commercial warranty on the 55BDL3452T/00, and Creation Networks assists with system design and post-sale support for interactive AV integration projects.
