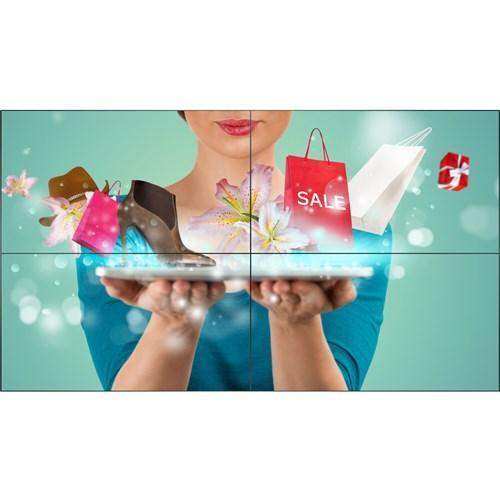

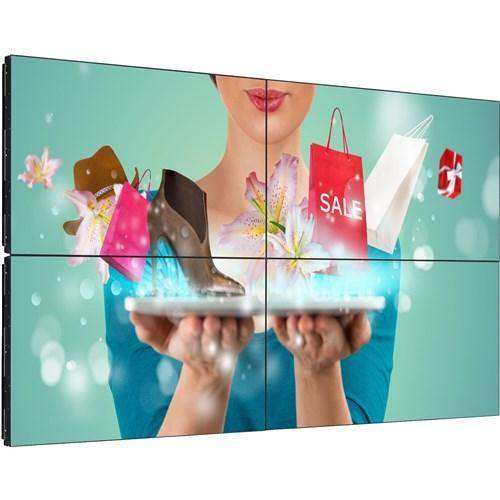

Philips 55BDL2105X/27 – 55" TAA 24/7 Video Wall Display

Product Overview

The Philips 55BDL2105X/27 is a TAA compliant video wall display for federal, state, and government-contract installations that require Trade Agreements Act sourcing alongside 24/7 reliability. This 55" X-Line model delivers Full HD resolution at 500 cd/m2 with an ultra-narrow 3.5 mm combined bezel (2.3 mm + 1.2 mm) for near-continuous tiled canvases. Built-in tiling supports matrices up to 15 x 15 without external processors for standard layouts. CMND management and FailOver input redundancy keep operations-center and public-information walls running unattended.

Product Description

For government integrators, the /27 suffix removes a common compliance hurdle: this SKU meets TAA country-of-origin requirements for GSA Schedule and federal contracts, making it suitable for agency operations centers, courthouse and base wayfinding, and emergency operations video walls. The platform matches the X-Line 55BDL2105X hardware: a 54.5" direct-LED panel at 1920 x 1080, 500 cd/m2, 1200:1 typical contrast (500,000:1 dynamic), 178-degree viewing, 8 ms response, and a 25% haze finish that manages reflections under facility lighting.

Tiling mode builds canvases from 2x2 up to 15x15, with a 2x2 array showing 4K content dot-for-dot from a single player. DisplayPort 1.2 loop-through carries video down the chain and dual RJ45 ports daisy-chain network control, so cabling stays manageable across larger arrays. Inputs include two HDMI 2.0, DisplayPort 1.2, DVI-D, and VGA, and the OPS slot accepts a slot-in PC or the optional Philips CRD50 Android module for embedded signage compute with no external cabling — a useful option in secure rooms where cable paths are restricted. CMND & Control monitors and manages the wall over LAN, FailOver switches automatically to a secondary input if the primary drops, and Pixel Shift plus Low Bright protect the panel through continuous duty backed by a 50,000-hour MTBF and 3-year warranty. Edge alignment pins, gap pads, an RJ45/RS-232 converter, and cables ship in the box. The 24/7 rating applies in both landscape and portrait. The non-TAA equivalent, the Philips 55BDL2105X/00, is also available in the Philips collection at Creation Networks.

Key Features

• TAA compliant sourcing — Meets Trade Agreements Act requirements for GSA Schedule and federal, state, and local procurement.
• 3.5 mm combined bezel — The 2.3 mm + 1.2 mm bezel design minimizes seams so tiled content reads as one continuous surface.
• 24/7 operation, landscape and portrait — Continuous-duty rating with Pixel Shift and Low Bright protection suits operations centers that never go dark.
• Tiled matrix up to 15 x 15 — Built-in tiling with DisplayPort loop-through builds large canvases, including dot-by-dot 4K on a 2x2 array, without external processors.
• 500 cd/m2 with anti-glare haze — High brightness and a 25% haze finish keep content legible under facility lighting.
• OPS slot for embedded compute — Accepts slot-in PCs or the optional CRD50 Android module, reducing cabling in secure spaces.
• CMND & Control fleet management — Monitor, switch inputs, and manage settings across the entire wall over LAN.
• FailOver input redundancy — Automatic fallback to a secondary input keeps mission content on screen.
• Alignment hardware included — Edge alignment pins, gap pads, and converter cables support precise installation.

Typical Applications

• Government space
• Commercial meeting space
• Boardroom
• Broadcast studio
• Auditorium

Technical Specifications

Frequently Asked Questions

How does the /27 differ from the 55BDL2105X/00?

The hardware platform is the same; the /27 SKU meets Trade Agreements Act sourcing requirements, making it eligible for GSA Schedule and federal contract purchases.

How large a wall can be built?

Built-in tiling supports up to 15 x 15 matrices. A 2x2 array displays 4K content at native resolution from a single source via DisplayPort 1.2 loop-through.

Can the media player be embedded?

Yes. The OPS slot powers a slot-in PC or the optional Philips CRD50 Android module, keeping compute inside the chassis — helpful where external cabling is restricted.

What control options exist for secure facilities?

Dual RJ45 LAN ports daisy-chain IP control, and the included RJ45/RS-232 converter supports serial control from isolated control processors.

Is alignment hardware included?

Yes. Edge alignment pins and gap pads ship in the box to help installers maintain consistent seams across the array.

Can Creation Networks provide TAA documentation for procurement?

Yes. Creation Networks supplies formal quotes and TAA compliance documentation for agency and contractor purchases, plus warranty coordination on Philips professional displays.
