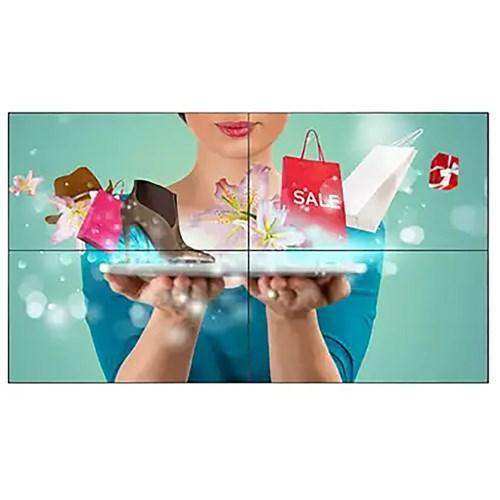

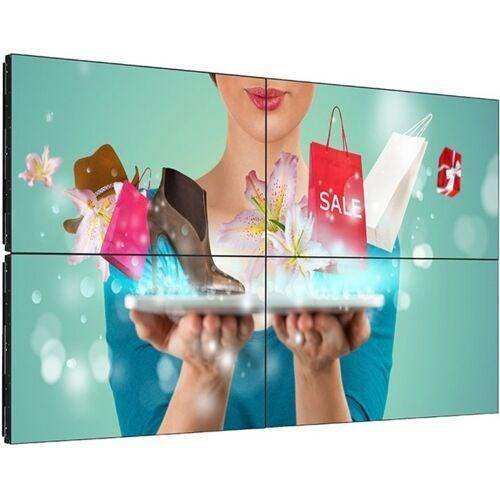

Philips 49BDL2105X – 49" FHD 24/7 Video Wall Display

Product Overview

The Philips 49BDL2105X is a 49" Full HD X-Line video wall display engineered for 24/7 tiled installations in retail, corporate lobbies, broadcast environments, and control-adjacent spaces. Ultra-narrow bezels measuring just 2.3 mm + 1.2 mm (3.5 mm combined) minimize the seam between tiled panels, while built-in tiling mode supports matrices up to 15x15 without external processors. A 500 cd/m² direct-LED panel with Pure Colour Pro calibration keeps tiled content bright and uniform around the clock. FailOver input switching and CMND management make the wall dependable for unattended commercial operation.

Product Description

For integrators specifying a video wall installation, the 49BDL2105X handles tiling natively: connect displays via DisplayPort 1.2 loop-through, set the tiled matrix in the OSD, and a single source drives the array — four screens or forty. A 2x2 array of these Full HD panels reproduces 4K content dot-by-dot, which is the most cost-efficient route to a 98" 4K canvas. Edge alignment pins and gap pads ship in the box to speed mechanical alignment during installation, and dual RJ45 ports allow network loop-through for daisy-chained LAN control across the wall.

Reliability features address the realities of always-on deployment. FailOver automatically switches to a secondary input if the primary source drops, so the wall never shows a blank tile. Pixel-shift and low-brightness screen-saving functions protect the panel during continuous duty, and the display carries a 50,000-hour MTBF rating with 24/7 placement approval in both landscape and portrait. An OPS slot accepts a slot-in PC or the Philips CRD50 Android module, embedding the player inside the display without external cabling — useful where wall depth and serviceability matter. Inputs include two HDMI 2.0, DisplayPort 1.2, DVI-D, and VGA, with 2160p sources accepted over HDMI, DP, and OPS for native tiled 4K workflows. IT and facilities teams manage the wall with CMND & Control over LAN, and an RJ45/RS232 converter is included for control-system integration. Philips covers the display with a 3-year warranty. For matching mounts and companion screens, see the Philips commercial display collection at Creation Networks.

Key Features

• Ultra-Narrow 3.5 mm Combined Bezel — 2.3 mm + 1.2 mm bezels keep tiled images nearly continuous across the wall for distraction-free viewing.
• Native Tiling up to 15x15 — Built-in tiled matrix mode drives large arrays from a single player with no external video wall processor.
• 4K Across a 2x2 Array — Four Full HD panels reproduce 4K content at dot-by-dot resolution, supported over HDMI, DisplayPort, and OPS inputs.
• 24/7 Duty Cycle, Portrait or Landscape — Rated for continuous operation in either orientation with a 50,000-hour MTBF.
• FailOver Input Protection — Automatic switching to secondary inputs keeps content playing if the primary source fails.
• 500 cd/m² Direct-LED Panel — High brightness with Pure Colour Pro calibration delivers uniform color across every tile.
• OPS Slot for Embedded Players — Install a slot-in PC or CRD50 Android module inside the display, keeping the wall cable-free and serviceable.
• DisplayPort and RJ45 Loop-Through — Signal and network daisy chaining simplify cabling on multi-display installations.
• Installation Hardware Included — Edge alignment pins, gap pads, DP and RJ45 cables, and an RJ45/RS232 converter ship in the box.
• CMND Fleet Management — Monitor status, control inputs, and maintain one display or one hundred over the LAN.

Typical Applications

• Broadcast studio
• Auditorium
• All-hands room
• Boardroom
• Commercial meeting space
• Government space
• House of worship

Technical Specifications

Frequently Asked Questions

Do I need a video wall processor to tile these displays?
Not for most layouts. Built-in tiling mode with DisplayPort loop-through lets a single player drive matrices up to 15x15; processors are only needed for advanced multi-source windowing.

Can a 2x2 wall show true 4K content?
Yes. Four Full HD panels render 4K dot-by-dot, and 2160p input is accepted over HDMI, DisplayPort, and the OPS slot.

How is the wall controlled and monitored?
Dual RJ45 ports with loop-through allow daisy-chained LAN control via CMND & Control, and the included RJ45/RS232 converter supports serial control systems.

Is alignment hardware included for installation?
Yes. Edge alignment pins and gap pads ship in the box to help installers achieve flush tile-to-tile alignment.

Can the display run in portrait orientation?
Yes. It is rated 24/7 in both landscape and portrait, supporting banner and column-style wall designs.

What warranty applies?
Philips provides a 3-year warranty. Creation Networks can assist with mount selection, array sizing, and player specification for your video wall project.
