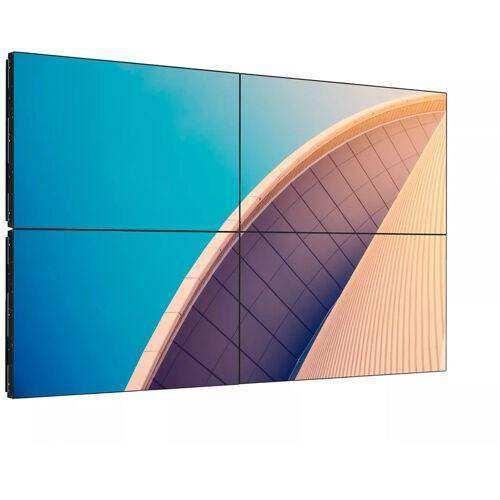

Philips 110BDL4007X/00 – 2x2 Video Wall Bundle, Four 55" Displays

Product Overview

The Philips 110BDL4007X/00 is a 2x2 video wall bundle built from four Philips X-Line 55BDL4007X 55-inch Full HD displays, engineered for commercial video wall installation in lobbies, control rooms, and high-traffic public spaces. Each panel is rated for 24/7 operation with 700 cd/m² brightness and extra-narrow 0.9 mm bezels, producing a near-continuous 110-inch canvas. Integrators get DisplayPort loop-through, RS232 daisy-chaining, and a 10x10 tiled matrix mode for straightforward multi-display deployment. This bundle is a complete four-panel solution for organizations that need always-on, large-format visual impact.

Product Description

Video walls remain one of the most effective formats in commercial AV, and the Philips X-Line series is purpose-built for the job. The 110BDL4007X/00 bundle delivers four matched 55BDL4007X panels, each with a Direct LED-backlit IPS panel offering 178/178-degree viewing angles and consistent color across every seat in the room.

At 0.9 mm bezel width per side (1.8 mm panel-to-panel), the mullion between tiles nearly disappears, so 4K content mapped across the 2x2 array renders dot-by-dot without visible breaks. Built-in tiling mode supports matrices up to 10x10, which means this kit can later expand into a larger array using the same display family. Signal distribution is handled natively: DisplayPort 1.2 and DVI loop-through let one source feed all four panels without an external video wall processor. For AV integration and remote management, IT and facilities teams can control the wall over RJ45 or RS232 using Philips CMND & Control, monitoring input status and pushing firmware across the network. An OPS slot in each display accepts a slot-in PC or the optional Android-powered CRD50 module, eliminating external media players and cable clutter. FailOver input switching keeps content playing if a primary source drops, and Smart Power backlight control reduces energy draw during continuous commercial deployment. Pair this kit with mounts and signal extenders from the Philips commercial display collection at Creation Networks for a complete installation package.

Key Features

• 2x2 Full HD video wall bundle — Four matched 55BDL4007X panels create a 110-inch composite display with full 4K dot-by-dot reproduction across the array.
• 0.9 mm extra-narrow bezels — A 1.8 mm panel-to-panel gap keeps content continuous and distraction-free across tile boundaries.
• 700 cd/m² brightness, 24/7 rated — High output and continuous-duty engineering suit lobbies, transit hubs, and control environments that never power down.
• IPS panel with 178-degree viewing angles — Color and contrast stay consistent for viewers approaching from any direction.
• Built-in tiling up to 10x10 — Native tiled matrix mode scales walls without external processors, simplifying commercial deployment and future expansion.
• DisplayPort and DVI loop-through — Daisy-chain video, RS232, and IR between panels to cut cabling and distribution hardware.
• OPS slot for embedded compute — Slide in a full PC or the optional CRD50 Android module with no external cabling or power supplies.
• CMND network management — Operate, monitor, and update every panel over LAN or RS232 from a single interface.
• FailOver input redundancy — Displays automatically switch to a backup source so the wall never goes dark mid-presentation.
• 3-year warranty per display — Philips backs each panel with commercial-grade coverage for procurement peace of mind.

Typical Applications

• Auditorium
• All-hands room
• Broadcast studio
• Government space
• Commercial meeting space
• House of worship
• Multi-purpose room

Technical Specifications

Specifications below apply to each 55BDL4007X display (4 included in this bundle).

Frequently Asked Questions

Do I need an external video wall processor for this 2x2 kit?
No. Each 55BDL4007X includes native tiling mode and DisplayPort loop-through, so a single 4K source can feed all four panels with dot-by-dot mapping and no external controller.

Can the wall be expanded later?
Yes. Tiled matrix mode supports configurations up to 10x10, so additional 55BDL4007X panels can extend the array using the same daisy-chain architecture.

How is the video wall managed remotely?
Philips CMND & Control runs over the LAN (RJ45) or RS232, giving IT and facilities teams centralized input control, status monitoring, and firmware updates for every panel.

Does this kit support embedded media players?
Each display has an OPS slot that accepts a slot-in PC or the optional Philips CRD50 Android module, powering signage playback without external boxes or cables.

Is the kit rated for continuous operation?
Yes. The panels are rated for 24/7 operation in both landscape and portrait, with a 50,000-hour MTBF and Smart Power energy management.

What warranty and support apply?
Each display carries a 3-year Philips commercial warranty. Creation Networks provides pre-sale design assistance and post-sale support for video wall installation projects.
