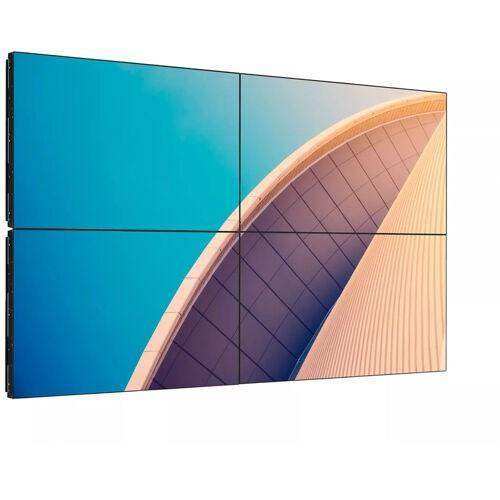

Philips 110BDL3105X/00 – 2x2 Video Wall Kit, Four 55" FHD Displays

Product Overview

The Philips 110BDL3105X/00 is a 2x2 video wall kit bundling four Philips X-Line 55BDL3105X 55-inch Full HD displays for commercial video wall installation in retail environments, lobbies, and corporate spaces. Each panel is rated for 24/7 operation in landscape or portrait, with 500 cd/m² brightness and a 3.5 mm combined bezel for a near-continuous 110-inch image. Built-in tiling up to 15x15 and DisplayPort loop-through let integrators deploy the wall without an external processor. The result is an always-on, four-panel canvas sized for high-visibility commercial deployment.

Product Description

The X-Line 55BDL3105X is Philips' workhorse Full HD videowall panel, and this kit packages four matched units for a standard 2x2 array. Direct LED backlighting drives an IPS panel with 178/178-degree viewing angles, so color and contrast hold up whether viewers stand directly in front of the wall or approach from the side.

The 3.5 mm adjacent-to-adjacent bezel (2.3 mm + 1.2 mm) keeps the seams tight, and native tiling mode maps 4K content dot-by-dot across the 2x2 grid for the best possible composite resolution. Signal distribution is built in: DisplayPort 1.2 loop-through daisy-chains one source across all four displays, eliminating splitters and external video wall controllers from the AV integration plan. For IT and facilities teams, CMND & Control provides LAN-based management of inputs, status, and firmware across the whole wall from one interface. Each display includes an OPS slot for a slot-in PC or the optional CRD50 Android module, so signage playback hardware lives inside the display with no external cabling. FailOver input switching keeps content on screen if the primary source drops, and Smart Power automatic backlight control trims energy use during continuous operation. With edge alignment pins, carrying handles, and Smart Insert mounting included, installation crews can square the array quickly. Browse mounts and companion displays in the Philips collection at Creation Networks to complete the deployment.

Key Features

• Complete 2x2 video wall kit — Four matched 55BDL3105X panels form a 110-inch Full HD composite display ready for commercial deployment.
• 3.5 mm adjacent bezel — Ultra-narrow 2.3 mm + 1.2 mm bezels keep tiled content continuous and distraction-free.
• 24/7 operation rating — Panels run continuously in landscape or portrait with a 50,000-hour MTBF for always-on environments.
• Tiling mode up to 15x15 — Native tiled matrix scaling supports future expansion without external video wall processors.
• DisplayPort loop-through — Daisy-chain a single source across all four panels to simplify cabling and AV integration.
• OPS slot per display — Embed a slot-in PC or optional CRD50 Android module for cable-free media playback.
• CMND & Control management — Monitor status, switch inputs, and update firmware over LAN from a single console.
• FailOver redundancy — Automatic input switching keeps the wall playing content even if the primary source fails.
• IPS panel, 178-degree viewing — Consistent color from any angle suits wide rooms and walk-by traffic.
• 3-year warranty per display — Commercial-grade Philips coverage protects the investment for procurement teams.

Typical Applications

• Auditorium
• All-hands room
• Commercial meeting space
• Government space
• House of worship
• Multi-purpose room
• Training room

Technical Specifications

Specifications below apply to each 55BDL3105X display (4 included in this kit).

Frequently Asked Questions

Does this kit require an external video wall controller?
No. Each 55BDL3105X has built-in tiling mode and DisplayPort loop-through, so one source can drive the 2x2 array with dot-by-dot 4K mapping and no external processor.

Can I expand beyond 2x2 later?
Yes. The tiled matrix supports up to 15x15 displays, so additional 55BDL3105X panels can grow the wall using the same loop-through architecture.

How do IT teams manage the wall?
CMND & Control runs over the LAN, providing centralized input switching, status monitoring, and firmware updates for every panel in the array.

Is media playback hardware included?
Each display has an OPS slot that accepts a slot-in PC or the optional Philips CRD50 Android module, so playback can be embedded without external players.

Are mounts included with this kit?
This bundle includes the four displays with standard accessories; video wall mounts are specified separately based on the wall structure. Creation Networks can recommend compatible mounting for your installation.

What warranty applies?
Each display carries a 3-year Philips commercial warranty, with pre- and post-sale support available from Creation Networks.
