Philips 10BDL5051T – 10.1" Touchscreen Room Booking Display

Product Overview

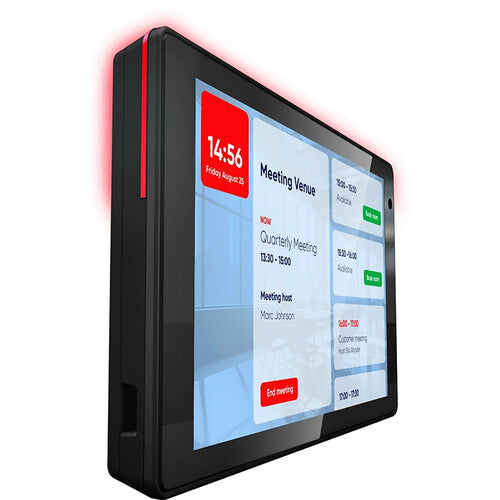

The Philips 10BDL5051T/00 is a 10.1-inch WXGA touchscreen display purpose-built for meeting room booking panels and small-format interactive signage. Running Android 13 on an integrated RK3568 platform, it hosts room scheduling apps directly on the device, while IEEE 802.3at PoE+ delivers power and network over a single Ethernet cable for clean doorway installation. Programmable LED bars on three sides signal room availability at a glance down the corridor, and built-in NFC supports badge-based check-in and authentication. The panel is rated for 24/7 operation in landscape or portrait.

Product Description

Room booking panels live or die on installation simplicity and at-a-glance status, and the 10BDL5051T addresses both. PoE+ powers the display from the network switch — no electrician required at each door — and the tri-side programmable LED indicates red, green, or custom colors so staff see whether a conference room is free before they reach it. At 0.8 kg with a 75 x 75 mm VESA pattern and under 25 mm depth, it mounts cleanly on walls, glass partitions, and mullions.

The 10-point projected-capacitive touchscreen sits behind 0.7 mm tempered safety glass (7 Mohs) for durability in high-traffic corridors, and the 1280 x 800 panel delivers 350 cd/m² brightness with 160-degree viewing angles. Android 13 keeps the platform current for modern room-booking and workplace apps, backed by 2GB DDR4 memory and 16GB eMMC storage. Connectivity is comprehensive for a panel this size: RJ45 with PoE+, 802.11ac dual-band Wi-Fi, Bluetooth 5.0, USB-C, USB 2.0, micro SD, and even HDMI output. NFC enables badge check-in workflows, a G sensor supports orientation-aware apps, and a Kensington lock point plus lockable hidden keys protect against tampering. Typical power draw is just 4 W, and Philips backs the unit with a 3-year warranty. For general-purpose interactive signage at this size, compare the Philips 10BDL4551T or browse the Philips collection at Creation Networks.

Key Features

• Purpose-built room booking form factor — 10.1-inch touch panel with tri-side programmable LED status bars shows availability from down the hall.
• PoE+ single-cable power — IEEE 802.3at PoE+ carries power and data over one Ethernet run, removing outlet requirements at every door.
• Android 13 platform — Current OS with RK3568 CPU, 2GB DDR4, and 16GB eMMC runs modern scheduling and workplace apps natively.
• 10-point PCAP touch under tempered glass — 0.7 mm safety glass at 7 Mohs hardness withstands constant corridor use.
• NFC built in — Badge-tap check-in, authentication, and workplace credentials without add-on readers.
• Dual-band Wi-Fi and Bluetooth 5.0 — 802.11ac wireless and BT 5.0 provide flexible connectivity where wired runs are impractical.
• 24/7 duty, landscape or portrait — Continuous-operation rating with 50,000-hour MTBF suits always-on workplace deployments.
• Compact, mount-anywhere design — 0.8 kg, 24.75 mm deep, 75 x 75 mm VESA, with Kensington lock and lockable controls.
• Low operating cost — 4 W typical consumption and under 0.5 W standby across hundreds of rooms adds up to real savings.
• 3-year warranty — Commercial coverage for the life of a typical workplace refresh cycle.

Typical Applications

• Conference room and boardroom booking panels
• Huddle room availability and check-in displays
• Commercial meeting space wayfinding touchpoints
• Government space room scheduling and visitor check-in
• Training room and multi-purpose room reservation panels

Technical Specifications

Frequently Asked Questions

Which room booking platforms can it run?
The Android 13 platform supports standard Android room-scheduling apps; confirm your chosen platform (such as calendar-integrated booking software) publishes an Android client and our team can help verify compatibility.

Does it need a power outlet at the door?
No, if your network switch supports IEEE 802.3at PoE+. The panel draws power and data through one Ethernet cable. A 12V DC adapter is also included for non-PoE installations.

How do the LED status bars work?
The LEDs on three edges are programmable from the running app — typically green for available and red for occupied — so availability is visible at a distance without reading the screen.

Can staff check in with badges?
Yes. Built-in NFC supports badge-tap check-in and authentication where the room-booking app implements it.

Is it durable enough for high-traffic corridors?
The touchscreen sits behind 0.7 mm tempered safety glass rated 7 Mohs, the controls are lockable and hidden, and a Kensington slot deters theft.

What warranty and deployment support apply?
Philips includes a 3-year warranty, and Creation Networks supports PoE planning, app validation, and multi-room rollout pricing.
