Peerless-AV ST650 – SmartMount Universal Tilt Wall Mount for 39" to 75" Displays

ST650 – Peerless-AV SmartMount Universal Tilt Wall Mount for 39" to 75" Displays

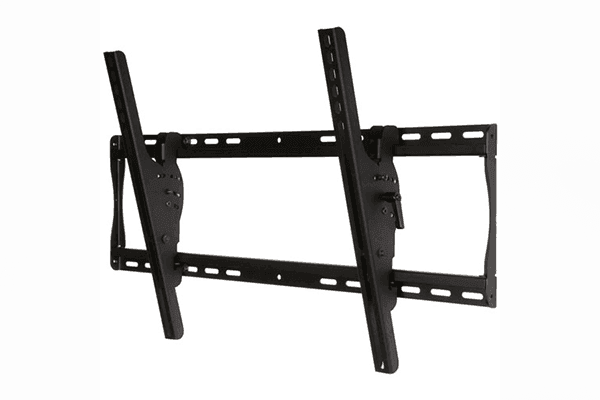

The Peerless-AV ST650 SmartMount is a universal tilt wall mount for 39" to 75" displays, offering post-installation leveling, horizontal centering adjustment, IncreLok tilt locking, and integrated security hardware — all in a UL-listed design tested to four times its stated load capacity.

Product Description

The ST650 is part of the Peerless-AV SmartMount Universal Tilt Wall Mount series, which prioritizes installation flexibility and post-installation adjustability in a way that standard tilt mounts do not. The open wall plate design provides unrestricted access to the wall cavity after mounting, which simplifies routing of electrical and low-voltage cables — a practical advantage in new construction and retrofit projects alike.

Post-installation adjustment is a defining characteristic of this mount. Up to 0.25" of vertical adjustment on each universal display adapter bracket allows for fine-tuning the display height after the screen is on the wall. Horizontal adjustment of up to 8" (203mm) allows the display to be centered on the wall without repositioning the wall plate. This range of adjustment significantly reduces the tolerance requirements during initial rough-in, making installation faster and less prone to errors.

The IncreLok tilt technology allows the tilt angle to be locked at installation to prevent unauthorized adjustment or tampering, which is a practical requirement in public-facing and semi-public AV installations. The ST650 model includes security screw hardware installed with a security tool (included) for additional theft deterrence. The design is UL listed and tested to four times the stated 175 lb load capacity. Available from Creation Networks at creationnetworks.net.

Key Features

• Supports 39" to 75" displays up to 175 lb on VESA patterns up to 600 x 400mm for broad display compatibility.
• Up to 0.25" (6mm) of vertical adjustment per adapter bracket enables post-installation height fine-tuning without re-drilling.
• Up to 8" (203mm) of horizontal adjustment allows the display to be centered on the wall after the wall plate is set.
• IncreLok tilt technology locks the tilt angle in place to prevent tampering, with 15° of forward tilt and 5° of backward tilt available.
• Open wall plate design provides full access to the wall cavity for electrical and cable management after the display is mounted.
• Security screw hardware included (installed with a security tool) for integrated theft deterrence in public-facing installations.
• Hook-and-Hang system supports single-person display installation to reduce labor requirements.
• UL listed design tested to four times the stated load capacity; compatible with wood stud, concrete, and cinder block walls.

Technical Specifications
