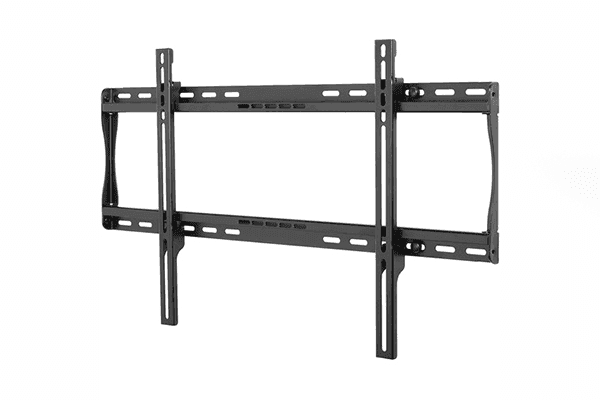

SF670 – SmartMount Universal Flat Wall Mount for 46–90" Displays
The Peerless-AV SF670 is a UL Listed, VESA-compliant flat wall mount for large displays from 46 to 90 inches and up to 250 lb, with auto-latching adaptor rails, a built-in kickstand, and up to 12 inches of horizontal adjustment.
Product Description
For large-format display installations where a flush, minimal-profile result is the primary objective, the SF670 delivers an ultra-slim 1.98-inch wall clearance that keeps the display positioned close to the surface. The auto-latching adaptor rails are a practical differentiator: they lock the display to the wall plate automatically without requiring a secondary tool step, reducing the risk of misalignment during the hang and allowing a single installer to complete the process safely.
A built-in kickstand holds the display at a safe angle away from the wall during initial cable routing and termination, eliminating the need for a second person to hold the display in position. The open wall plate maintains access to electrical junction boxes and simplifies cable management through the mount structure. Horizontal screen adjustment of up to 12 inches accommodates post-installation centering corrections.
The SF670 mounts to two or three wood studs, concrete, cinder block, or metal studs with the required accessory. Fits displays with VESA mounting hole patterns up to 35.75" W × 19.80" H. Compatible with 42- to 71-inch LCD and plasma panels per product compatibility data. UL Listed and VESA compliant; manufactured in the United States with a 5-year limited warranty.
Key Features
- Supports flat panel displays from 46 to 90 inches with a maximum load capacity of 250 lb.
- Ultra-slim profile holds the display only 1.98 inches from the wall for a low-profile installation.
- Auto-latching adaptor rails secure the display to the wall plate without tools for efficient single-person installation.
- Built-in kickstand holds the display safely away from the wall during cable routing.
- Up to 12 inches of horizontal adjustment for post-installation display centering.
- Open wall plate design preserves access to electrical junction boxes and cable runs.
- Mounts to two or three wood studs, concrete, cinder block, or metal studs (accessory required).
- UL Listed and VESA compliant; manufactured in the United States; 5-year limited warranty.
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | SF670 |
| Manufacturer | Peerless-AV |
| Product Line | SmartMount |
| Compatible Display Size | 46–90" (VESA pattern fits 42–71" LCD/Plasma) |
| Maximum Load Capacity | 250 lb |
| Wall Clearance | 1.98" |
| Horizontal Adjustment | Up to 12" |
| Max VESA Pattern | 35.75" W × 19.80" H |
| Color | Black |
| Height | 20.6" |
| Width | 37.8" |
| Depth | 2" |
| Weight (Approximate) | 10.40 lb |
| Mounting Surface Compatibility | Two or three wood studs, concrete, cinder block, metal studs (accessory required) |
| Certifications | UL Listed, VESA Compliant |
| Country of Origin | United States |
| Package Contents | Wall plate (triple stud), adapter bracket, wood screws, alligator anchors, 4mm Allen wrench |
| Warranty | 5 Year Limited |
