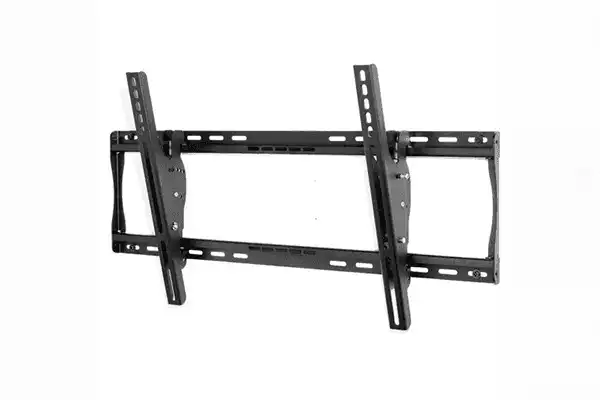

EPT650 – Peerless-AV Outdoor Universal Tilt Wall Mount for 32" to 75" Flat Panel Displays

The Peerless-AV EPT650 is an outdoor-rated universal tilt wall mount for 32" to 75" flat panel displays, built with E-Coat corrosion-resistant finish and stainless steel hardware to withstand exposure to the elements in permanent exterior signage installations.

Product Description

The EPT650 outdoor tilt wall mount from Peerless-AV is engineered for permanent exterior display installations where corrosion resistance, structural integrity, and theft deterrence are non-negotiable requirements. The mount’s E-Coat finish and stainless steel hardware provide reliable protection against moisture, humidity, and the corrosive effects of outdoor exposure, making the EPT650 appropriate for building facades, covered walkways, outdoor dining areas, stadium concourses, and transportation facilities.

Despite its weatherized construction, the EPT650 maintains a low profile — keeping the display just 2.64" (67mm) from the wall — and supports a maximum load capacity of 175 lb, accommodating large commercial outdoor displays. The tilt mechanism adjusts from +15° to -5° in 5° locking increments, providing precise control over the viewing angle to minimize glare from outdoor lighting conditions. Horizontal display adjustment of up to 8" (203mm) allows for fine-tuning the display position after the wall plate is fixed.

Tamper-resistant hardware is standard on the EPT650, and lock-down channels in the brackets are included for optional padlock attachment to the wall plate, providing an additional layer of physical security for high-value outdoor displays in public-access locations. The mount supports VESA patterns up to 600×400mm and includes hardware for mounting to wood, concrete, and cinder block surfaces. Double stud mounting at 16", 20", and 24" stud spacings ensures broad compatibility with standard exterior wall framing.

Key Features

• Outdoor-rated corrosion resistance: E-Coat finish combined with stainless steel hardware provides protection against moisture, humidity, and outdoor environmental exposure.
• 175 lb maximum load capacity: Supports large-format commercial outdoor displays up to 175 lb for demanding permanent exterior installations.
• Low-profile wall clearance: Holds the display just 2.64" (67mm) from the wall surface, minimizing wind-load leverage and maintaining a clean appearance.
• Tilt with locking increments: +15° to -5° tilt adjusts in 5° locking increments for precise glare reduction and optimal outdoor viewing angles.
• 8" horizontal adjustment: Up to 8" (203mm) of horizontal screen adjustment allows final display positioning after the wall plate is secured.
• Tamper-resistant hardware with padlock option: Standard tamper-resistant fasteners deter theft; optional padlock attachment via lock-down channels adds physical security for public-access installations.
• Double stud mounting: Supports 16", 20", and 24" stud spacings for reliable attachment to standard exterior wall framing configurations.
• VESA 600×400mm compatibility: Universal VESA support up to 600×400mm covers a broad range of 32" to 75" commercial outdoor displays.
